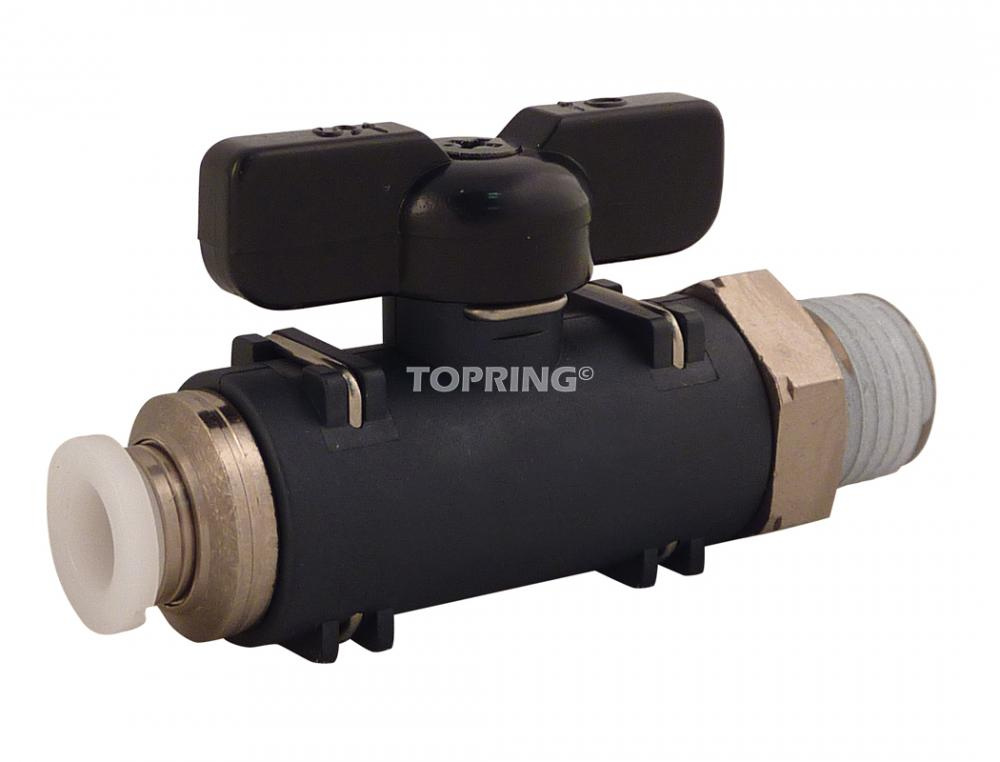

Threaded Straight Ball Valve 1/4 x 1/8(M) TOPFITItem is usually in stock, but we'll be in touch if there's a problem
by Topring
Threaded Straight Ball Valve 1/4 x 1/8(M) TOPFITItem is usually in stock, but we'll be in touch if there's a problem
by Topring
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Threaded Straight Ball Valve 1/4 x 1/8(M) TOPFITItem is usually in stock, but we'll be in touch if there's a problem
by Topring
Price:
Call for Price
Part Number: 505MHET
UPC: 00774679028138
Vendor Item Number: 40.94
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (9)
Technical Details
Industrial Category:
Plumbing
Industrial Subcategory:
Shut-Off Valves
Item Length inches:
0.79
Item Quantity:
1
Item Weight lbs:
0.13
Product Series:
S40-42 TOPFIT Polymer Push-to-Connect Fittings
UNSPSC Number:
40141607
Manufactured By:
Topring
+
Additional Information
- Adjusting screw: Nickel-plated Brass
- Body: Polymer (PBT)
- Compact design: Allows fittings to be closely mounted
- Elastic Sleeve: Nitrile Rubber
- Fully reusable: Designed to resist multiple connections and disconnections with leak-free operations and solid tubing gripping
- Instantaneous connection/disconnection: Wide release collar allows fast and trouble-free tubing removal
- Lock claw: Stainless Steel
- Lock nut: Aluminium
- Maximum working pressure: 150 PSI
- Needle: Nickel-plated Brass
- NPT Thread / Series 40: Tubing diameter in inches (imperial system)
- O-Ring: Nitrile rubber
- Optimum flow: No part of the fitting goes inside the tubing for maximum unrestricted airflow
- PERFECT SEAL: A nitrile rubber elastic sleeve guarantees a perfect seal between standard O.D. tubing and the body of the fitting
- POSITIVE GRIPPING ACTION: Stainless steel lock claws hold the tubing securely without damaging its surfaceVibration and pressure surges are safely absorbed to prevent accidental disconnections
- Quick connect design: One-piece fitting saves over 75 % of assembly time compared to standard compression fittings
- READY-TO-USE THREADSMale threads have a pre-applied sealant which allows the fitting to be reused up to five times without the need for additional sealants
- Release Collar Colors White: inch size diameter Black: mm size diameter
- Release Collar: Polyacetal resin
- Thread (M): 1/8 NPT
- Threaded body: Nickel-plated Brass
- threaded fittings: All threaded fittings are made of nickel-plated brass resistant to corrosion
- Tubing O.D.: 1/4 in
- Tubing size identification: Tubing diameter indicated on release collar
- Working Temperature: 0 to 60 °C
