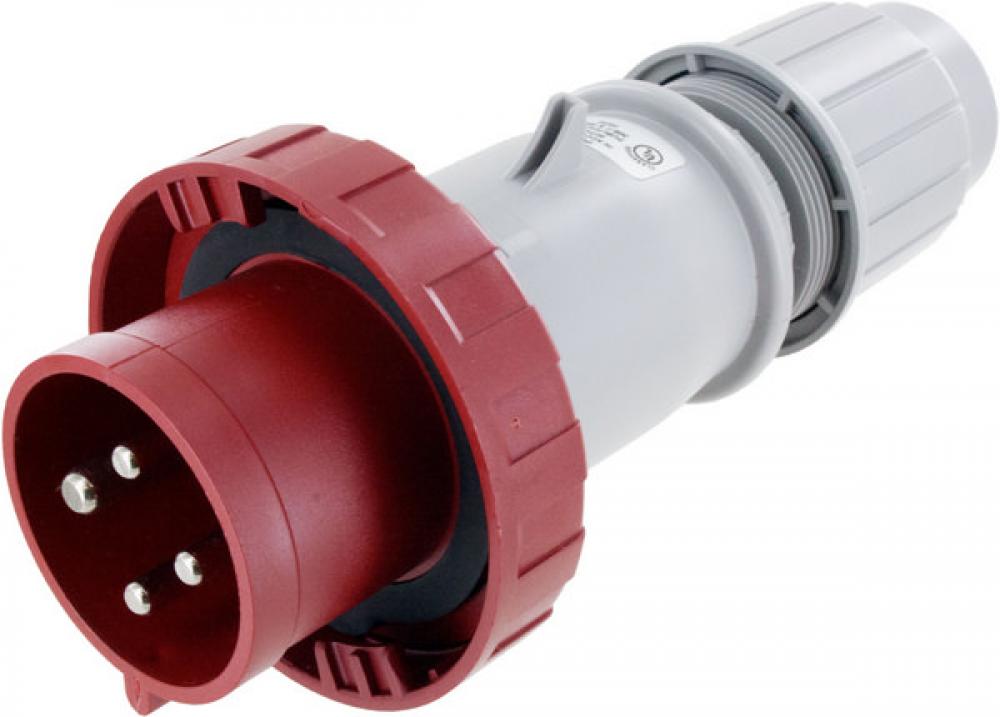

EUREKA HD IP67 PLUG 3P-E IP67 32A 3h 380-440VItem is usually in stock, but we'll be in touch if there's a problem
by Techspan
Price:
Call for Price
Part Number: 70AFZZP
UPC:
Vendor Item Number: SCM432P3W
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Plugs and Receptacles
Industrial Subtype:
Pin and Sleeve Plugs
Pin Sleeve Cable Bushing:
Solid neoprene, onion ring type
Pin Sleeve Cable Gland Nut:
VALOX®
Pin Sleeve Cable Od:
Round portable service cords from 14.5mm O.D. through 50mm O.D.
Pin Sleeve Clock Position:
3h
Pin Sleeve Cold Impact Resistance:
Per IEC 60309-1 Clause 24; (-25°C) with 75cm drop
Pin Sleeve Colour Coding:
Red
Pin Sleeve Contact Carriers:
VALOX®
Pin Sleeve Cord Grip Range Max Awg:
0.91
Pin Sleeve Cord Grip Range Min Awg:
0.675
Pin Sleeve Corrosion Resistance:
All metallic components stainless steel or nickel plated brass. Sleeve pressure rings of zinc plated steel
Pin Sleeve Current Interrupting:
Tested to 125% rated current at 110% rated voltage per IEC309-1 clause 20
Pin Sleeve Dielectric Voltage Withstand:
3000 Volts for 1 minute per IEC 60309-1, Clause 19
Pin Sleeve Endurance With Load:
16 Amp: 500 cycles: Load only
Pin Sleeve Flap:
Stainless Steel
Pin Sleeve Force Ring:
Zinc plated steel
Pin Sleeve Frequency:
D.C. - 50÷500Hz
Pin Sleeve Housing:
VALOX®
Pin Sleeve Ik Degree:
IK10 (20J)
Pin Sleeve Insulating Voltage:
500/690V~
Pin Sleeve Material:
VALOX®
Pin Sleeve Max Working Voltage:
690 VAC/250 VDC(minimum creepage and clearances per IEC)
Pin Sleeve Mounting Flanges:
VALOX®
Pin Sleeve O Ring:
Solid neoprene
Pin Sleeve Operating Ambient Temp:
-25°C + 40°C
Pin Sleeve Per Iec:
32 Amp: 1000 cycles, 63 Amp: 1000 cycles: 125 Amp: 250 cycles (Alternating load)
Pin Sleeve Pin Sleeve:
Nickel plated brass
Pin Sleeve Poles Wires:
3P 4W
Pin Sleeve Protection Degree:
IP67
Pin Sleeve Pull Out Force:
In accordance with IEC 60309-1, Clause 23
Pin Sleeve Rated Current:
32A
Pin Sleeve Rated Voltage:
380 - 480 V~
Pin Sleeve Self Extinquishing:
GW test 650°C /850°C
Pin Sleeve Series:
I
Pin Sleeve Snap On Spring:
Stainless Steel
Pin Sleeve Terminal Identification:
In accordance with IEC 60309-1 standards; as L1-L2-L3-G
Pin Sleeve Terminal Screws:
Nickel plated steel
Pin Sleeve Type:
IP67
Pin Sleeve Wiring And Installation Max Awg:
10
Pin Sleeve Wiring And Installation Min Awg:
14
Pin Sleeve Wiring And Installation Rated Current:
32A
Unit Priced:
EA
Manufactured By:
Techspan
+
