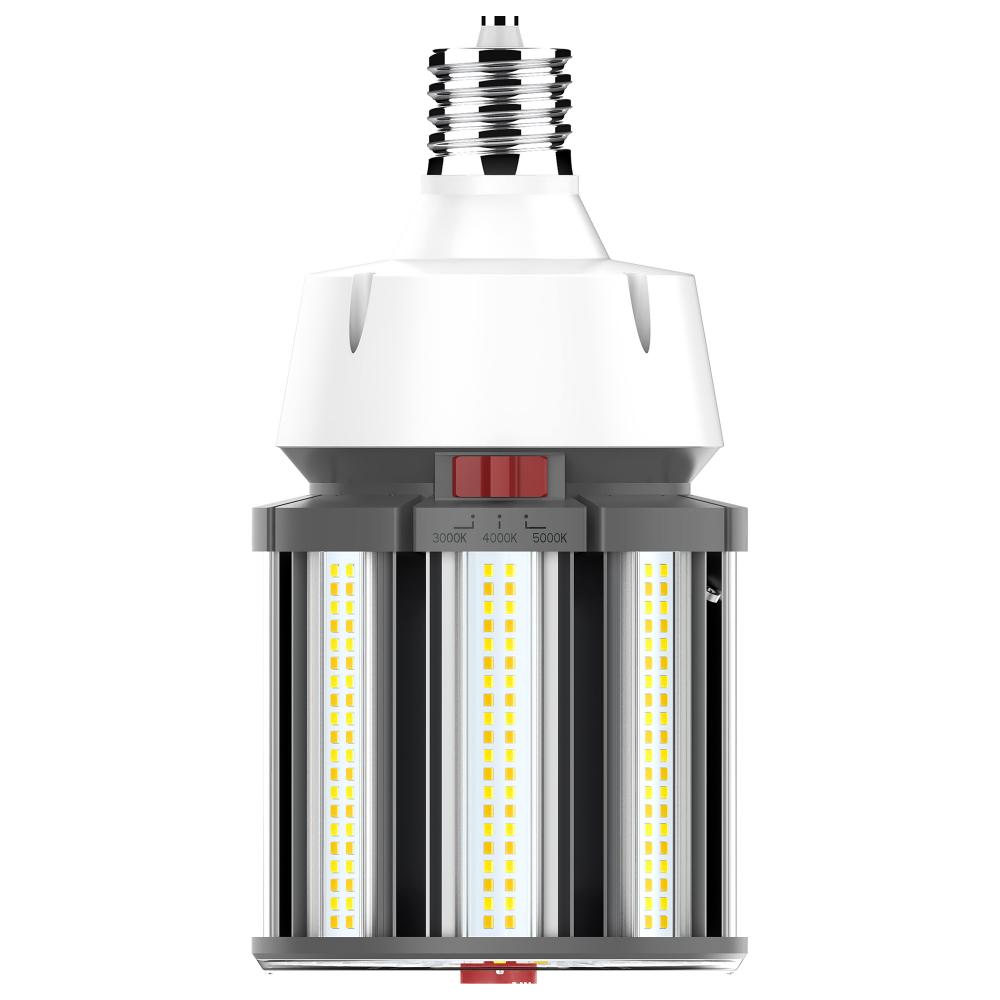

80W/LED/CCT/100-277V/EX39Item is usually in stock, but we'll be in touch if there's a problem
by Satco
80W/LED/CCT/100-277V/EX39Item is usually in stock, but we'll be in touch if there's a problem
by Satco
$
109
95
/ 1
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
80W/LED/CCT/100-277V/EX39Item is usually in stock, but we'll be in touch if there's a problem
by Satco
Price:
$
109
95
/ 1
Part Number: 6099E2P
UPC:
Vendor Item Number: S23143
$
109
95
/ 1
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Lighting
Industrial Subcategory:
Lamps
Industrial Subtype:
LED Lamps and Bulbs
Additional Info:
Power selectable
Amps:
.88A
ANSI Base:
EX39
Avg Rated Hours:
50000
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
300
Burning Position:
Base Up or Down
Case Quantity:
4
Case UPC:
10045923231435
CCT Selectable:
Yes
Color Temp:
Warm to Cool White
Country of Origin:
China
CRI:
80
Dimmable:
Yes-Dimmable
Dimmable Function:
Dimmable only via the wattage/lumen selectable dial included on lamp
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-7YQW1Z
DLC Primary Use:
Replacement Lamps for Outdoor Pole/Arm-mounted Decorative Luminaires (Type B)
ENERGY STAR:
No
FCC Compliant:
Yes
Finish:
White
Finish Family:
White
HID Equiv:
320W/250W/200W
Housing Color:
Dark Gray
Indoor Outdoor:
Indoor and Outdoor
Item Quantity:
1
Lamp Ballast Type ABC:
Type B
Lamp Base:
Mogul Extended
Lamp Filament:
LED
Lens Material:
Plastic
Location Rating:
Damp
Lumens:
11200L/8820L/7560L
Minimum Compartment Size:
Length: 9.85 in. Width: 9.85 in. Height: 10.95 in.
MOD Decimal In:
5.11
MOL Decimal In:
9.96
NSF Approved:
No
Operating Frequency:
50-60 Hz
Operating Temp:
-40C (-40F) to +60C (+140F)
Pack Type:
Box
Power Factor:
>0.9
Product Type:
Corncob
Rated For Enclosed Fixture:
Yes
Replaces:
S13143
RoHS Compliant:
Yes
Safety Listing:
cULus - Classified; cULus - Certified; cULus - Listed
SDS class:
LED_Lamp
Surge Protection:
Built-in surge protection - 4KV
Technology:
LED
Temperature CCT:
3000K/4000K/5000K
UNSPSC Number:
39101628
UPC Number:
45923231438
Volts:
100V-277V
Warranty:
5 Year Limited - 12 hr per day
Watts:
80W/63W/54W
Weight Lb:
2.68
Manufactured By:
Satco
+
Additional Information
Product Overview
80/63/54 Wattage Selectable; LED HID Replacement; CCT Selectable; Extended Mogul base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology
