18WLED/DW/EL/8/50K/120VItem is usually in stock, but we'll be in touch if there's a problem
by Satco
18WLED/DW/EL/8/50K/120VItem is usually in stock, but we'll be in touch if there's a problem
by Satco
$
36
95
/ 1
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
18WLED/DW/EL/8/50K/120VItem is usually in stock, but we'll be in touch if there's a problem
by Satco
Price:
$
36
95
/ 1
Part Number: 609DFNQ
UPC:
Vendor Item Number: S11719
$
36
95
/ 1
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Lighting
Industrial Subcategory:
Indoor LED Light Fixtures
Industrial Subtype:
LED Recessed Troffers
Air Tight:
Yes
ANSI Base:
Integrated LED
Avg Rated Hours:
40000
Beam Spread:
100
Bulb Count:
1
Bulb Included:
Integrated
Case Quantity:
12
Case UPC:
10045923117197
Ceiling Aperture:
8.10 in. Cutout
Color Temp:
Natural Light
Connection:
Direct Wired
Connector:
Direct Wired
Country of Origin:
China
CRI:
90
Diameter In:
8.69
Dimension String:
W:8.69" H:2"
Dimmable:
Yes-Dimmable
ENERGY STAR:
Yes
ES Category:
Downlight Recessed
ES Unique ID:
ESID-2382157
FCC Compliant:
Yes
Finish:
White
Finish Family:
White
Fixture shape:
Round
Has Driver:
yes
Height In:
2
IC Rated:
Yes
Incandescent Equiv:
85W
Indoor Outdoor:
Indoor
Item Quantity:
1
Lamp Base:
Integrated LED
Lamp Shape:
Integrated LED
Location Rating:
Damp
Lumens:
1300L
Material:
Polybutylene Terephthalate (PBT) / Polyamide (PA) / Polycarbonate (PC)
Max Dry Wall Thickness In:
7/8 in.
Minimum Compartment Size:
Diameter: 8.66 in. Height: 2.36 in.
Mounting Procedure:
Ceiling
Number of Lamps:
1
Operating Frequency:
50/60 Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Pack Type:
Box
Power Factor:
>.9
Product Notes:
Direct Wire LED Downlight
Product Type:
Direct Wire LED Downlight
Replaceable Light Source:
No
RoHS Compliant:
Yes
Safety Listing:
cETLus - Listed
Style:
Utility
Technology:
LED
Temperature CCT:
5000K
Trim Color:
White
UL Application:
Ceiling
UNSPSC Number:
39111515
UPC Number:
45923117190
Volts:
120V
Volts In Min:
120V
Warranty:
5 Year Limited - Fixtures
Watts:
18W
Weight Lb:
0.88
Width In:
8.69
Manufactured By:
Satco
+
Additional Information
Product Overview

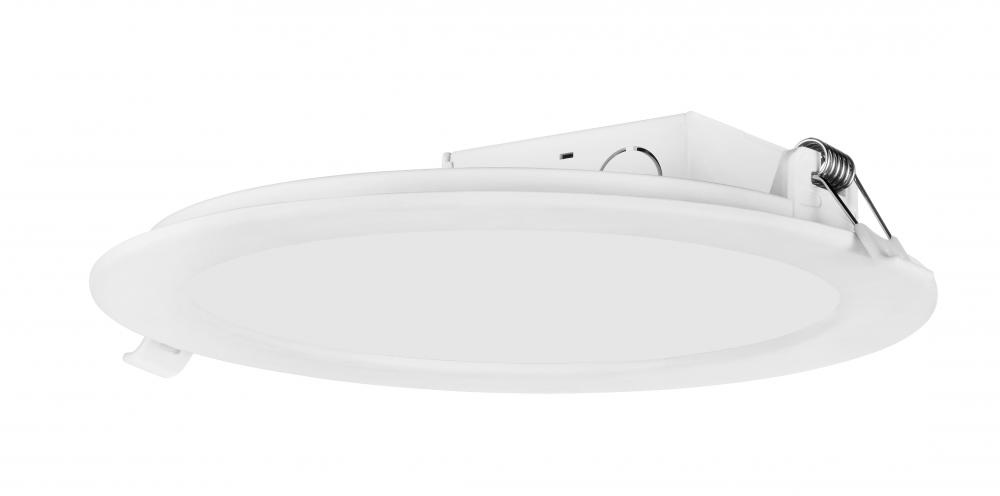

18 watt LED Direct Wire Downlight; Edge-lit; 8 inch; 5000K; 120 volt; Dimmable
