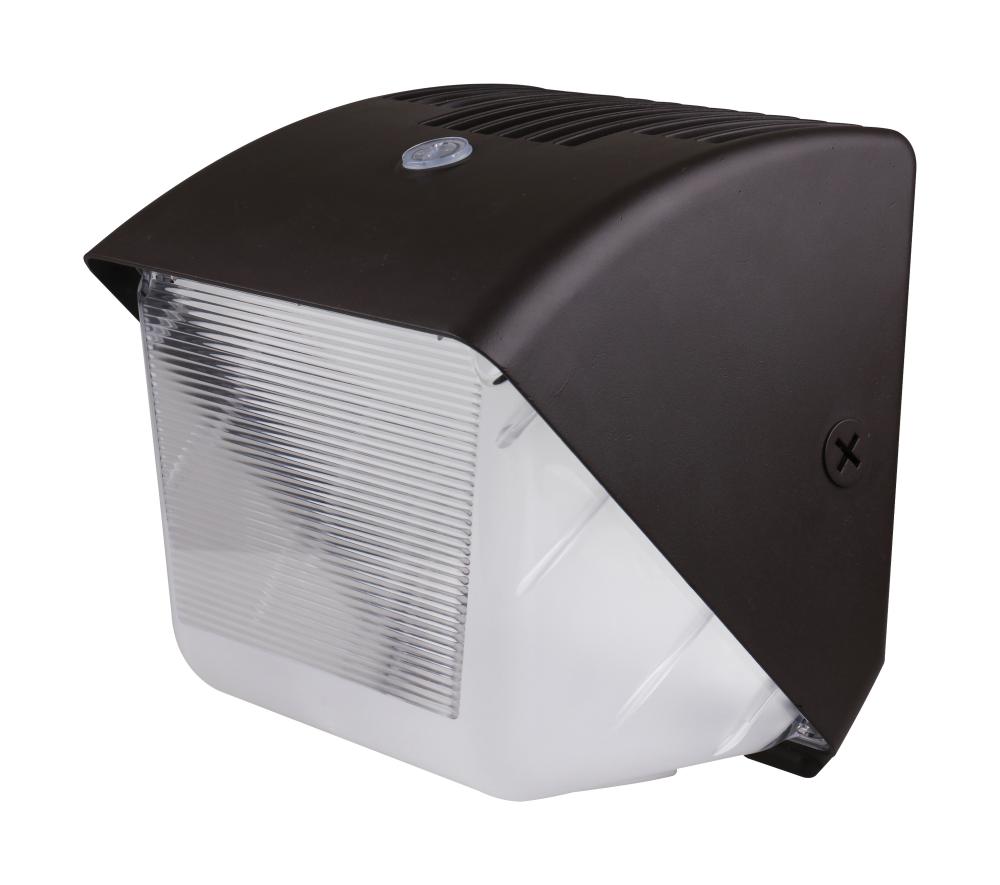

40W LED SMALL WALL PACKItem is usually in stock, but we'll be in touch if there's a problem
by Nuvo
40W LED SMALL WALL PACKItem is usually in stock, but we'll be in touch if there's a problem
by Nuvo
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
40W LED SMALL WALL PACKItem is usually in stock, but we'll be in touch if there's a problem
by Nuvo
Price:
Call for Price
Part Number: 60906ZD
UPC:
Vendor Item Number: 65/656
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Lighting
Industrial Subcategory:
Outdoor Area Fixtures
ADA Compliant:
No
Additional Info:
IK10 Lens
ANSI Base:
Integrated LED
Avg Rated Hours:
50000
BAA Compliant:
No
Beam Spread:
80
Brand:
Nuvo
Bulb Count:
1
Bulb Included:
Integrated
CA Web Text:
California T24 Compliant
Case Quantity:
4
CCT Selectable:
Yes
Color Temp:
Warm to Cool White
Country of Origin:
China
CRI:
70+
Dimension String:
W:8.50" H:8.44" E:7.45"
Dimmable:
Non-Dimmable
Dimmable Function:
0-10V Dimming Only
DLC Approved:
No
Each Cubic Ft:
0.5572
Each Height In:
9.65
Each Length In:
10.14
Each Quantity:
1
Each UPC:
45923651762
Each Weight Lb:
5.35
Each Width In:
9.84
ENERGY STAR:
No
Extends In:
7.45
FCC Compliant:
Yes
Finish:
Bronze
Finish Family:
Bronze
Flicker Free:
Yes
Height In:
8.44
HID Equiv:
150W
Incandescent Equiv:
300W
Indoor Outdoor:
Outdoor
IP Rating:
IP65
Lamp Base:
Integrated LED
Lamp Shape:
Integrated LED
Location Rating:
Wet
Lumens:
4200L-5000L
Material:
Aluminum / Polycarbonate (PC)
Mounting Procedure:
Wall
Number of Lamps:
1
Operating Frequency:
50/60 Hz
Operating Temp:
-40C (-40F) to +45C (+113F)
Pack Type:
Box
Photocell:
Yes - Bypassable
Power Factor:
>0.9
Product Notes:
Wall Pack
Product Series:
Wall Pack
Product Type:
Wall Pack
Replaceable Light Source:
No
RoHS Compliant:
Yes
Safety Listing:
cULus - Listed; cULus - Certified
SDS class:
LED_Fixture
Style:
Traditional
Surge Protection:
Built-in surge protection - 2.5KV
Technology:
LED
Temperature CCT:
3000K/4000K/5000K
THD:
<20%
UNSPSC Number:
39111612
Volts:
120V-277V
Volts In Min:
120V-277V
Warranty:
5 Year Limited - Fixtures
Watts:
40W
Weight Lb:
5.08
Width In:
8.5
Manufactured By:
Nuvo
+
Additional Information
Product Overview
40 Watt Small LED Wall Pack with Integrated Bypassable Photocell; CCT Selectable; 120-277 Volts; Dusk to Dawn Security Lighting; IP65; Bronze Finish
