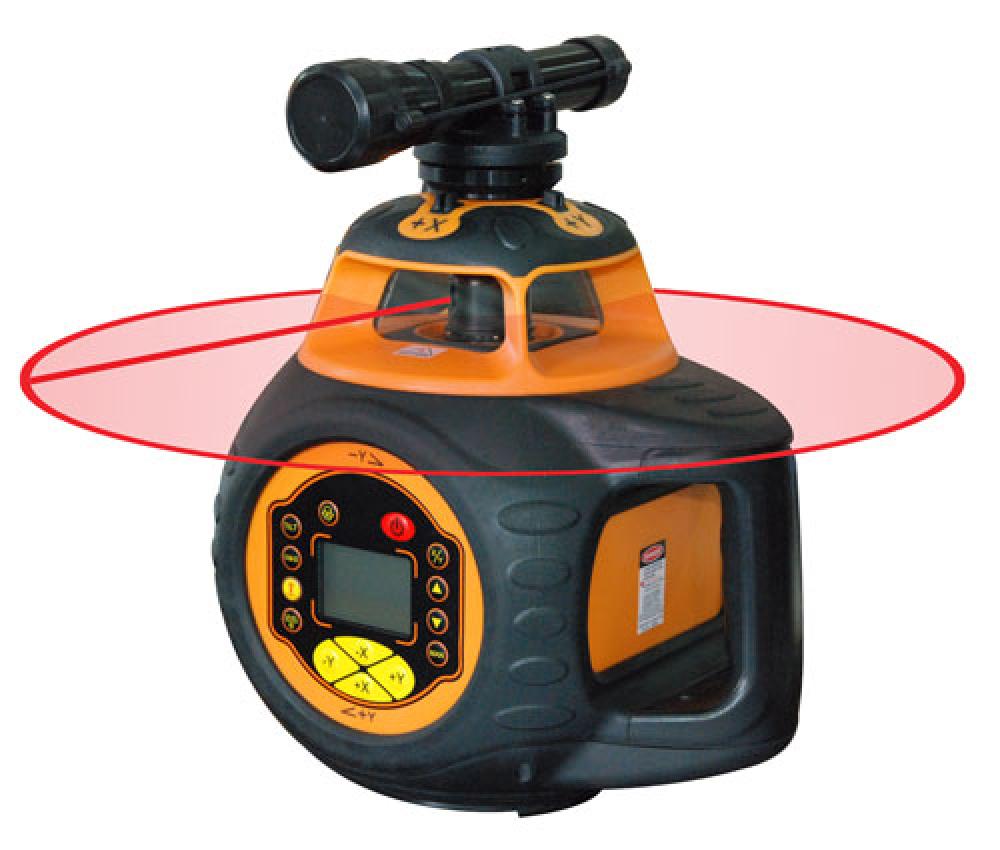

Rotary Laser (40-6584)Item is usually in stock, but we'll be in touch if there's a problem
by Johnson Level
Rotary Laser (40-6584)Item is usually in stock, but we'll be in touch if there's a problem
by Johnson Level
$
3,259
04
/ 1
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Rotary Laser (40-6584)Item is usually in stock, but we'll be in touch if there's a problem
by Johnson Level
Price:
$
3,259
04
/ 1
Part Number: 703Z80R
UPC: 00049448065844
Vendor Item Number: 40-6584
Custom: JOH40-6584
$
3,259
04
/ 1
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Measuring and Layout Tools
Accuracy:
+1/16"/100'
Applications:
The Johnson Level 40-6584 can be used for the following outdoor applications; site preparation, establishing grades, excavating, landscaping-terracing and retaining walls, rough and fine grading, digging basements, setting foundation and footers, retention
Battery:
Y
Battery Included:
Y
Battery Life:
40 hours NiMH rechargeable; 100 hours alkaline
Battery Quantity:
1
Battery Type:
Li-on
Color:
Black
Exterior Range:
Up to 2,000' diameter with detector
Grade Setting:
X-Axis - 10% to+10% Y-Axis - 1% to+ 25% X+Y=20%
Includes:
4-6584 Includes > Laser, Li-ion rechargeable battery pack, alkaline battery compartment (batteries not included), Li-ion battery charger, remote control with 2 "AA" batteries, detector with 9V battery and clamp, sighting scope, slope plate, fine ad
Interior Range:
Up to 200'
IP Rating:
IP66
Laser Class:
Class Illa
Laser Leveling Method:
Automatic (Electronic)
Laser Wavelength:
635nm+10nm (Red)
Maximum Power Output:
<5mW
Remote Range:
Up to 200' diameter
Rotation Speed:
600 and 1100 RPM
Tripod Thread:
5/8"-11
Warranty:
3 Year Warranty
Warranty Text:
3 Year Warranty: Johnson Level warrants this product against defects in material and workmanship for three years after the confirmed purchase date. At its option, the company will replace or repair the product if it fails under normal use.
Working Temperature:
14°F to 113°F
Manufactured By:
Johnson Level
+
Additional Information
- 0
- Electronic beam shield to turn the laser beam off in one to three quadrants
- Height of Instrument/Tilt alarm function ensures product accuracy
- Large +8° electronic self level range. When beyond the leveling range, the laser beam will flash, rotation of the beam will stop, and an audible alarm will activate
- LCD display with backlight illumination
- Manual mode allows unit to tilt to extreme angles
- Operates with radio frequency remote control
- Programmable dual slope function allows user to perform slope at different inclinations in both x and y axis
- Two rotation speeds: 6 and 11 RPM
Product Overview
Electronic Self-Leveling Digital Dual Grade Horizontal Rotary Laser Kit
