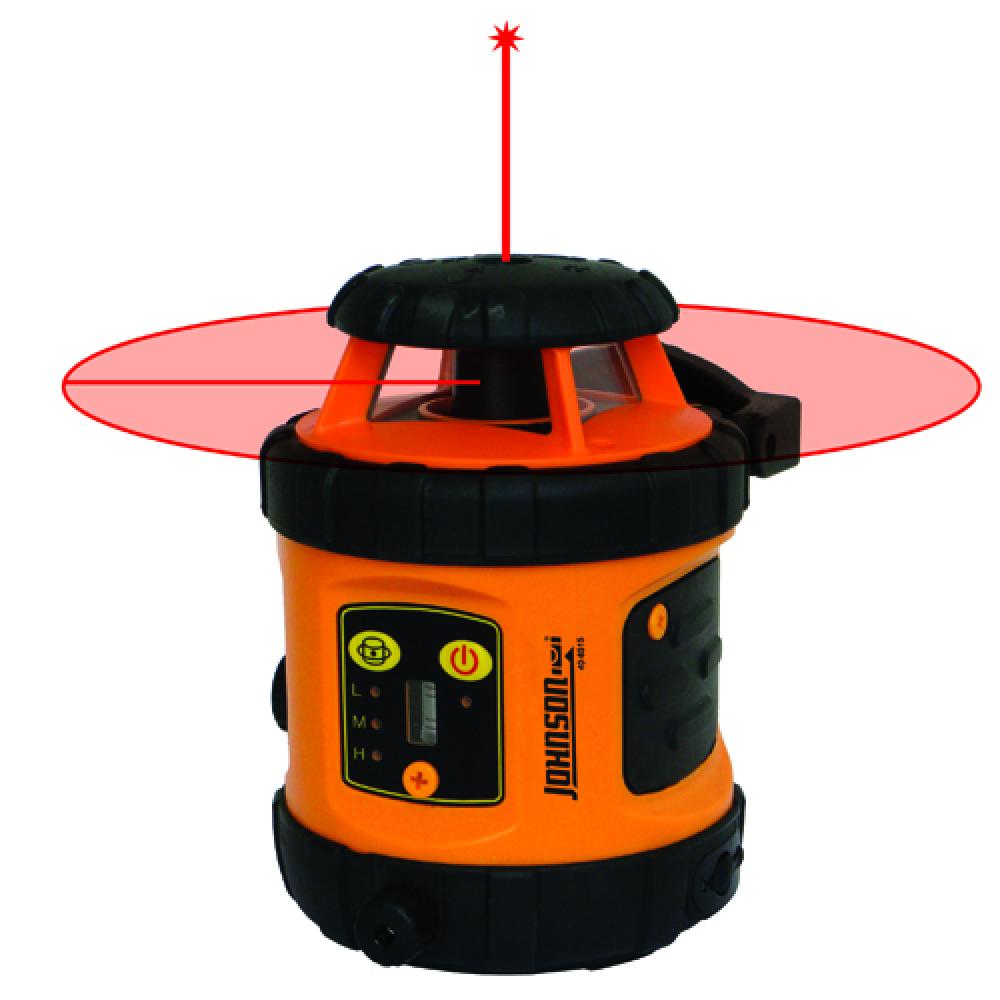

Rotary Laser (40-6517)Item is usually in stock, but we'll be in touch if there's a problem
by Johnson Level
Rotary Laser (40-6517)Item is usually in stock, but we'll be in touch if there's a problem
by Johnson Level
$
561
90
/ 1
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Rotary Laser (40-6517)Item is usually in stock, but we'll be in touch if there's a problem
by Johnson Level
Price:
$
561
90
/ 1
Part Number: 703Z80M
UPC: 00049448065172
Vendor Item Number: 40-6517
Custom: JOH40-6517
$
561
90
/ 1
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Measuring and Layout Tools
Accuracy:
+1/8"/50'
Applications:
The Johnson Level 40-6517 can be used for the following indoor and outdoor applications; leveling, checking cut and fill, setting foundations and footings, concrete pours, septic tanks and basement excavations, acoustical ceiling and drywall, align and plu
Battery:
Y
Battery Included:
Y
Battery Life:
20 hours
Battery Quantity:
4
Battery Type:
AA
Color:
Orange
Exterior Range:
Up to 800' diameter with detector (included)
Includes:
4-6517 Includes > Laser, 4 “AA” alkaline batteries, wall/ceiling mount, 8ft. grade rod, detector with 2 “AAA” alkaline batteries and clamp, tinted glasses, magnetic target, elevating tripod, and hard-shell carrying case
Interior Range:
Up to 200'
IP Rating:
IP54
Laser Class:
Class Illa
Laser Leveling Method:
Self-leveling (Pendulum)
Laser Wavelength:
635nm+10nm (Red)
Material:
ABS
Maximum Power Output:
<5mW
Number of Vials:
1
Rotation Speed:
200, 400, 600 RPM
Tripod Thread:
5/8"-11
Vial Code:
Plumb
Warranty:
3 Year Warranty
Warranty Text:
3 Year Warranty: Johnson Level warrants this product against defects in material and workmanship for three years after the confirmed purchase date. At its option, the company will replace or repair the product if it fails under normal use.
Working Temperature:
14°F to 113°F
Manufactured By:
Johnson Level
+
Additional Information
- 0
- Illuminated vertical vial
- Laser rotates at 200, 400, 600 RPM
- Locking mechanism protects inner pendulum during transportation
- Manual-leveling in the vertical plane with 90 degrees split beam
- Self-leveling in horizontal plane
- Visual and audible alarms when beyond leveling range
Product Overview
40-6515 Self-Leveling Rotary Laser System
