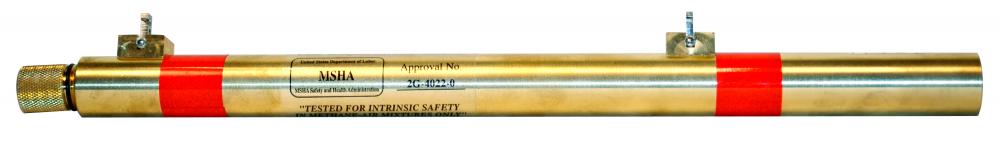

Mining Laser (40-6260)Item is usually in stock, but we'll be in touch if there's a problem
by Johnson Level
Mining Laser (40-6260)Item is usually in stock, but we'll be in touch if there's a problem
by Johnson Level
$
2,878
04
/ 1
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Mining Laser (40-6260)Item is usually in stock, but we'll be in touch if there's a problem
by Johnson Level
Price:
$
2,878
04
/ 1
Part Number: 703Z802
UPC: 00049448062607
Vendor Item Number: 40-6260
Custom: JOH40-6260
$
2,878
04
/ 1
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Measuring and Layout Tools
Applications:
The Johnson Level 40-6260 can be used for the following applications; mining companies (operation of equipment that requires precise alignment to operate properly), align, aim and position parts and machinery, saw mills, CNC machines to align bar feeders,
Battery:
Y
Battery Included:
Y
Battery Life:
85-100 hours
Battery Quantity:
5
Battery Type:
AA
Beam Divergance:
Less than .15 mrad
Color:
Gold
Includes:
4-626 Includes > Laser, adjustable spad hanging tabs, 5 "AA" alkaline batteries
IP Rating:
IP67
Laser Class:
Class IIIa
Laser Wavelength:
635nm (Red)
Material:
Brass
Maximum Power Output:
<5mW
Warranty:
1 Year Warranty
Warranty Text:
1 Year Warranty: Johnson Level warrants this product against defects in material and workmanship for one year after the confirmed purchase date. At its option, the company will replace or repair the product if it fails under normal use.
Working Range:
Up to 2000'
Working Temperature:
14ºF to 122ºF
Manufactured By:
Johnson Level
+
Additional Information
- 40-6260
- Adjustable hanging brackets included – connects to spads directly
- For use when long range is required
- Intrinsically safe and MSHA approved (Mining, Safety & Health Administration) - explosion proof containment not required
- Large optics – 20 times brighter than standard lasers
- Laser beam is aligned to be concentric with the outside diameter of the brass housing. This allows the installer to use the outside of the case for centering and positioning the beam.
- Precision beam alignment – self-cleaning threads – no tools required
- Solid brass – proven to work in harsh environments
- Used in above ground and underground operations – extremely rugged with 12mm optics for a small dot at a distance
- “O” ring seal – water and oil proof to IP67 standards
Product Overview
MSHA Mining Alignment Laser Long Range
