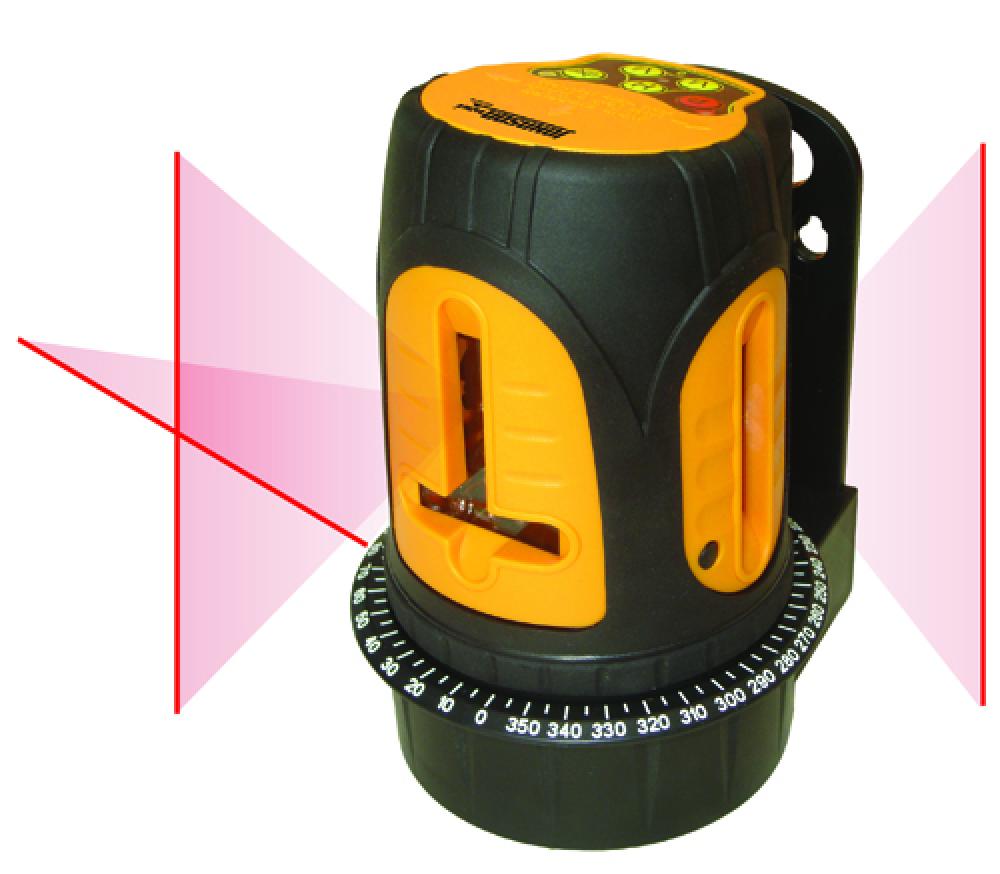

Line Laser (40-6604)Item is usually in stock, but we'll be in touch if there's a problem
by Johnson Level
Line Laser (40-6604)Item is usually in stock, but we'll be in touch if there's a problem
by Johnson Level
$
477
04
/ 1
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Line Laser (40-6604)Item is usually in stock, but we'll be in touch if there's a problem
by Johnson Level
Price:
$
477
04
/ 1
Part Number: 703Z80T
UPC: 00049448066049
Vendor Item Number: 40-6604
Custom: JOH40-6604
$
477
04
/ 1
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Measuring and Layout Tools
Accuracy:
+3/16"/50'
Applications:
The Johnson Level 40-6602 can be used for the following indoor and outdoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), el
Battery:
Y
Battery Included:
Y
Battery Life:
10 hours
Battery Quantity:
3
Battery Type:
AA
Color:
Orange
Exterior Range:
Up to 300' diameter with detector
Includes:
4-664 Includes > Laser, 3 "AA" alkaline batteries, detector with 9V battery and clamp, tinted glasses, magnetic target, and soft-sided carrying case
Interior Range:
Up to 200'
IP Rating:
IP54
Laser Class:
Class Illa
Laser Leveling Method:
Self-leveling (Pendulum)
Laser Wavelength:
635nm+10nm (Red)
Material:
ABS
Maximum Power Output:
<5mW
Tripod Thread:
5/8"-11
Warranty:
3 Year Warranty
Warranty Text:
3 Year Warranty: Johnson Level warrants this product against defects in material and workmanship for three years after the confirmed purchase date. At its option, the company will replace or repair the product if it fails under normal use.
Working Temperature:
14°F to 113°F
Manufactured By:
Johnson Level
+
Additional Information
- 0
- Laser beam can be set to pulse for use with optional line detector (included in 40-6604)
- Laser can be rotated 360 degrees
- Locking mechanism protects inner pendulum during transportation
- Manual mode allows unit to tilt to extreme angles
- Projects three vertical lines and one horizontal line simultaneously or individually
- Self-leveling with visual and audible alarms when beyond leveling range
Product Overview
40-6602 Self-Leveling Cross-Line Laser with 3 Vertical Lines Kit
