Level/Laser/Angle LocatorItem is usually in stock, but we'll be in touch if there's a problem
by Johnson Level
Level/Laser/Angle LocatorItem is usually in stock, but we'll be in touch if there's a problem
by Johnson Level
$
237
37
/ 1
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Level/Laser/Angle LocatorItem is usually in stock, but we'll be in touch if there's a problem
by Johnson Level
Price:
$
237
37
/ 1
Part Number: 703Z7ZM
UPC: 00049448060658
Vendor Item Number: 40-6065
Custom: JOH40-6065
$
237
37
/ 1
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Measuring and Layout Tools
Accuracy:
+/-0.1° for 0 and 90, +/-0.2° for other angles
Applications:
This level is perfectly suited for any number of jobs, including layout, piping, ramp installation, framing and more! This level's dot laser beam is ideal for transferring reference points, and its strong magnets make it the preferred choice when your
Battery:
Y
Battery Included:
Y
Battery Life:
70 hours
Battery Quantity:
3
Battery Type:
AA
Color:
Silver
Includes:
4-665 Includes > Magnetic digital level/angle locator with dot laser, 3 "AA" alkaline batteries, soft-sided pouch
IP Rating:
IP52
Laser Class:
Class Illa
Laser Wavelength:
650nm+10nm (Red)
Material:
Aluminum
Maximum Power Output:
<5mW
Resolution:
0.10%
Tripod Thread:
1/4"-20
Warranty:
3 Year Warranty
Warranty Text:
3 Year Warranty: Johnson Level warrants this product against defects in material and workmanship for three years after the confirmed purchase date. At its option, the company will replace or repair the product if it fails under normal use.
Working Range Angle:
0-182.5°
Working Temperature:
14°F to 113°F
Manufactured By:
Johnson Level
+
Additional Information
- 40-6065
- 5 construction languages - units of measure (degrees, percent, mm/m, in/ft in decimal, in/ft in fractional)
- Audible indicator at ° and 9°
- Automatic digit inversion for overhead measurements
- Backlight for easy-read in dimly lit work environment
- Laser beam for transfer of reference points
- Powerful GripTight™ rare earth magnets hold to ferrous metal surfaces
- Push button calibration
- Working range of angle measurement is 0 degrees to 182.5 degrees
Product Overview

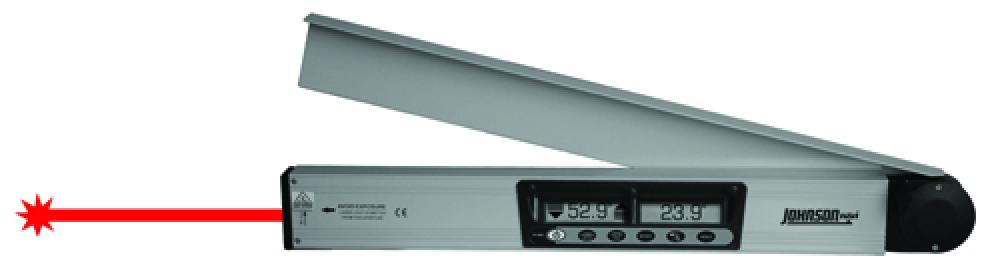

21" Digital Magnetic Level & Angle Locator with Dot Laser
