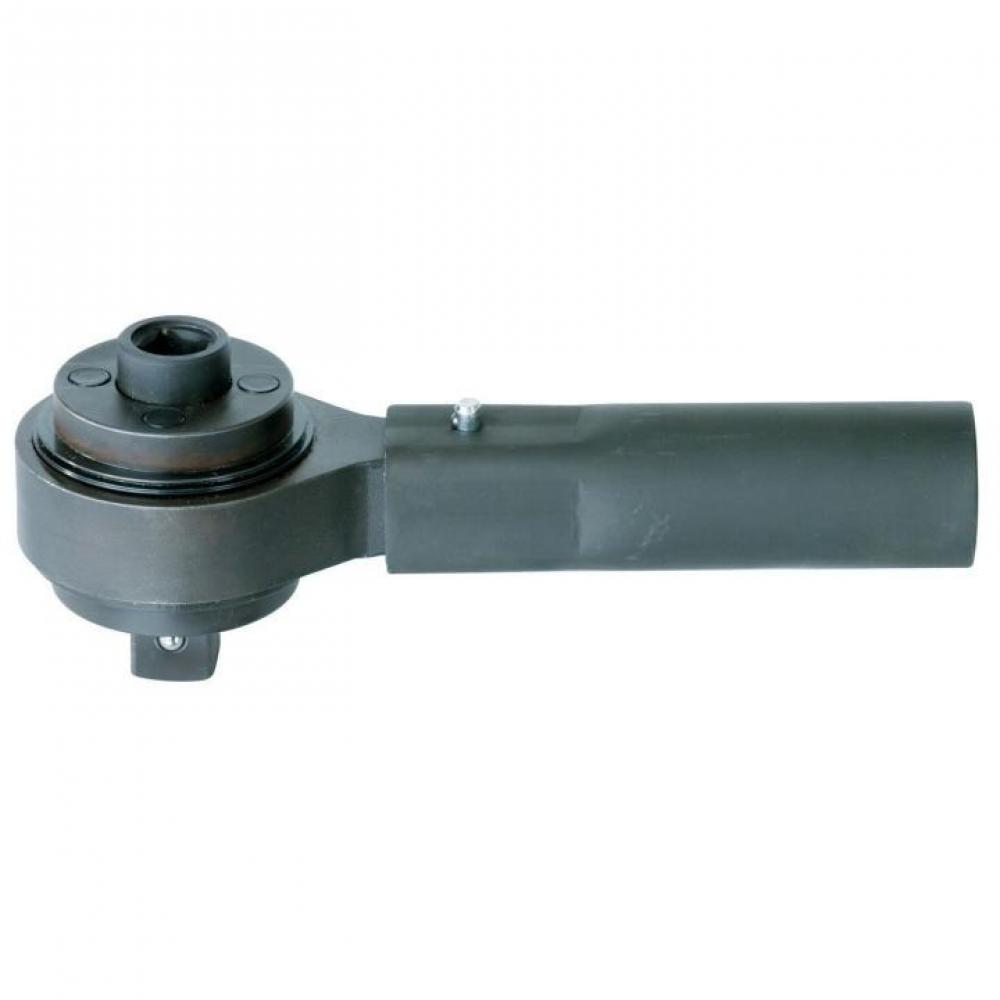

750 Foot Pound Reaction Bar Torque MultiplierItem is usually in stock, but we'll be in touch if there's a problem
by GearWrench
750 Foot Pound Reaction Bar Torque MultiplierItem is usually in stock, but we'll be in touch if there's a problem
by GearWrench
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
750 Foot Pound Reaction Bar Torque MultiplierItem is usually in stock, but we'll be in touch if there's a problem
by GearWrench
Price:
Call for Price
Part Number: 4088FG3
UPC: 00995756483040
Vendor Item Number: 64-830G
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Wrenches
Industrial Subtype:
Torque Multipliers
Angle of Turm Protractor:
No
Armstrong to GearWrench Cross References:
64-830
Base Unit of Measure:
EA
Brand:
GEARWRENCH
Case Color:
Black
Certified:
No
Country of Origin:
United States
Delivery Unit:
1
Finish:
Black Oxide
Flexible:
No
Foreign Trade Code:
8466100175
Gear Ratio:
4.0:1
Head Length:
2.812 in
Head Thickness:
3.3 in
Head Width:
2.812 in
Included Storage:
Blow Mold Case
Input Drive:
1/2 in
JET Cross Reference:
719071|JTM-50750 TORQ MULTPLIER KIT|;
Keywords:
torque multiplier, multiplier
Knurled:
No
Long Description:
7/16" 72-Tooth 12 Point XL Ratcheting Combination Wrench
Material:
Steel
Max Input Torque:
227 ft/lb
Max Output Torque:
750 ft/lb
Maximum Input Torque:
227 ft/lb
Maximum Output Torque:
750 ft/lb
Minimum Order Quantity:
1.000
Output Drive:
3/4" Square Drive
Overall Height:
3.25 in
Overall Length:
8.531 in
Overall Width:
2.8 in
Packaging:
Boxed
Packaging Height:
3.700
Packaging Length:
11.200
Packaging Width:
5.800
Product Name:
XL Combination Ratcheting Wrench
Proto Cross Reference:
J6202A|TORQUE MULTIPLIER 750 FT|Yes;
SAP Sales Org Status:
Active
Set:
No
Table Description:
750 Foot Pound Torque Multiplier
Torque Ratio:
3.3:1
Type:
Multiplier
Units of Measure:
EA
UPC:
099575648304
URREA Cross Reference:
6202A|590 FT/LB 1/2 IN DR TORQUE MULTIPLIER|No;
Warranty:
90 Days Calibration/1 Year on Parts
Wright Cross Reference:
9S290P|Torque Multiplier 1/2" Sq. F - 3/4" Sq. M Output Capacity 750 Ft. Lbs.|Yes;
Manufactured By:
GearWrench
+
Additional Information
- 1 year limited warranty; calibration accuracy warrantied for 90 days
- Input and output rotate in a matching direction, while the reaction arm moves in the opposite direction from the input/output force
- Internal planetary gear system provides strength and durability
- Low input torque is required and can easily be applied by one person
- Made in the USA
- Place an impact socket on the output square to attach to the fastener, then restrain the reaction bar against the equipment being serviced
- Torque accuracy of +/- 5% CW between 20% and 100% of wrench capability
Product Overview
750 Foot Pound Torque Multiplier
