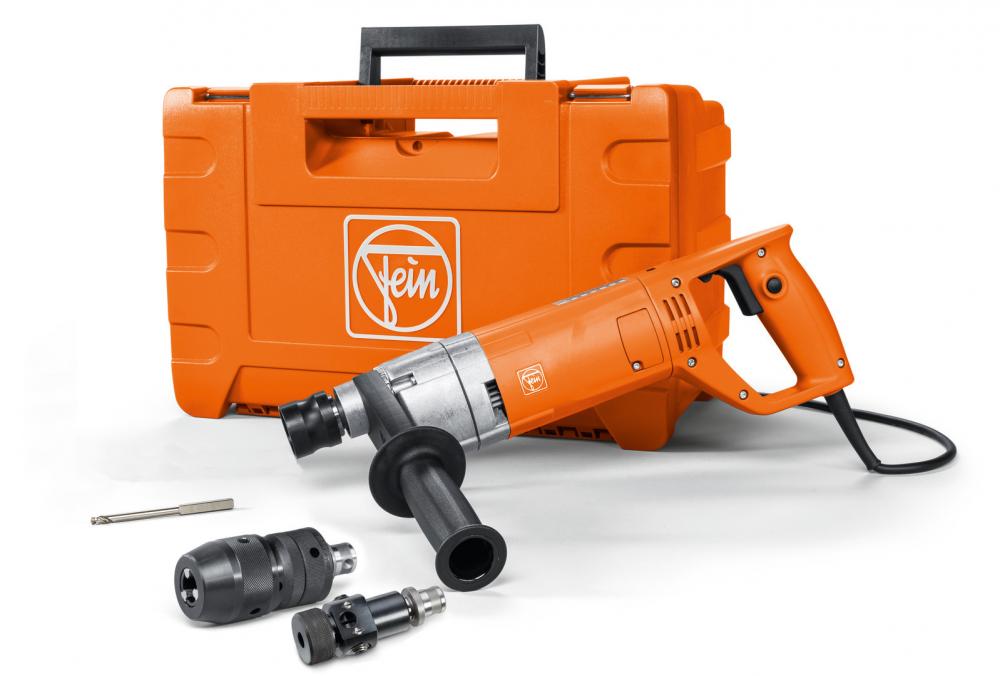

Hand-held metal core-drilling system up to 1 in [25 mm]|KBH 25-2 UItem is usually in stock, but we'll be in touch if there's a problem
by Fein
![Hand-held metal core-drilling system up to 1 in [25 mm]|KBH 25-2 U<span class=' ItemWarning' style='display:block;'>Item is usually in stock, but we'll be in touch if there's a problem<br /></span>](/vendors/7056/large/342363_7_pset72710361090__OFC.jpg "Hand-held metal core-drilling system up to 1 in [25 mm]|KBH 25-2 U<span class=' ItemWarning' style='display:block;'>Item is usually in stock, but we'll be in touch if there's a problem<br /></span>")
Hand-held metal core-drilling system up to 1 in [25 mm]|KBH 25-2 UItem is usually in stock, but we'll be in touch if there's a problem
by Fein
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Hand-held metal core-drilling system up to 1 in [25 mm]|KBH 25-2 UItem is usually in stock, but we'll be in touch if there's a problem
by Fein
Price:
Call for Price
Part Number: 7008DX3
UPC: 04014586876382
Vendor Item Number: 72710361090
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Power Tools
Industrial Subcategory:
Power Drills
Industrial Subtype:
Corded Magnetic Drill Presses
Cable with plug:
13.1 [4] ft[m]
COO:
DE
Country of origin:
DE
Cutter holder:
QuickIN PLUS
delivery:
1 pilot bit|1 quick-action chuck 1/8 - 5/8 in dia.|1 handle|1 cutting spray|1 tool case
design type:
KBH 25-2 U
Load speed:
'0 - 520 rpm|0 - 1,600 rpm
logistics data:
Gross weight 8.239,00|Net weight 8.239,00|Volume 41.472,00|Length 480,00|Width 320,00|Height 270,00
Machine Type:
Corded
Minimum clearance:
1-1/16 [27] in[mm]
Model:
KBH 25-2 U
Pilot hole drilling:
'0 - 1,600 rpm
Power consumption:
1,200 W
Power output:
680 W
Stall blocking torque:
443 [50] ** in/lbs[Nm]
Statistical commodity number:
84672199
Tapping:
M 12
Technical attributes:
Power consumption 1,200 W|Power output 680 W|Pilot hole drilling 0 - 1,600 rpm|Load speed: 1st gear 0 - 520 rpm|Load speed: 2nd gear 0 - 1,600 rpm|Full load torque 443 [50] in/lbs[Nm]|No load torque 443 [50] ** in/lbs[Nm]|Hole-dia. steel cutter 1 [25] i
Torque at maximum output power:
443 [50] in/lbs[Nm]
Weight:
7.50 [3.40] lbs[kg]
Manufactured By:
Fein
+
Additional Information
- ** Torque slip clutch.
- Carbide core bits with optimized service life.
- Electronic start.
- FEIN high-performance motor with excellent speed stability.
- Mechanical 2-speed gearbox with speeds from 0-1,600 rpm for efficient twist drilling and forward / reverse rotation for thread tapping up to 1/2 in [M12].
- Reversible.
- Self-start lock.
- Speed-controlled tacho electronics.
- Torsion-free, barrel-type motor housing.
- Variable electronic speed control.
- Very safe operation due to the torque slip clutch. Protects the user when overloaded by separation of the driver and driven sides.
- Wide range of accessories.
- Work up to 6 times faster due to innovative drilling technology: Pilot hole drilled to a depth of 3/16 in [5 mm] at 1,600 rpm, followed by disengagement of the pilot bit and automatic speed change to 520 rpm for optimal cutting speed for carbide annular cu
Product Overview
Hand-held metal core-drilling system up to 1 in [25 mm]|KBH 25-2 U|Hand-held 2-speed metal core drilling system for annular cutters and twist bit drilling.
