Dual Purpose Spring Driven Hose Reel 1/2inx25ft 300PSIItem is usually in stock, but we'll be in touch if there's a problem
by Coxreels
Dual Purpose Spring Driven Hose Reel 1/2inx25ft 300PSIItem is usually in stock, but we'll be in touch if there's a problem
by Coxreels
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Dual Purpose Spring Driven Hose Reel 1/2inx25ft 300PSIItem is usually in stock, but we'll be in touch if there's a problem
by Coxreels
Price:
Call for Price
Part Number: 8022664
UPC:
Vendor Item Number: C-LP-425-425
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (9)
Technical Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Hose Reels
Industrial Subtype:
Spring Return Hose Reels
Country of Origin:
USA
Currency Code:
Dollars
Item Quantity:
1
Ordering Quantity:
1
Product Series:
C Series
UPC Number:
0674255712065
Manufactured By:
Coxreels
+
Additional Information
- 1/4" STEEL BASE - Sturdy single expanded pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Compact two reel assembly for dual hose applications, each reel operates independently.
- 1” solid steel axle & lubricated precision bearings for smooth rotation
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Precision coil spring factory tuned and matched to application for longest life cycle and performance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Compact two reel assembly for dual hose applications, each reel operates independently
- Durable proprietary CPC™ powder coat process
- Enclosed factory tuned & matched cartridge-style spring motor
- Guide arm adjusts to wall, floor & overhead positions
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- Multi-position lock ratchet mechanism secures hose at desired length
- Non-corrosive stainless steel spring, pawl & zinc plated ratchet
- One mounting pattern allow 1/2 the installation time required to install 2 reels at one station
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
- Professional grade heavy duty steel construction
- PVC red hose
- Rolled edges & ribbed discs provide strength & safety
- Single expanded, 1/4” steel mounting base for increased stability & space efficiency
- SWIVEL - Two external fluid path with machined solid brass 90˚full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Swivel Seals: NITRILE
- Two external fluid paths with machined from solid brass 90° full-flow NPT swivel inlets
Product Overview

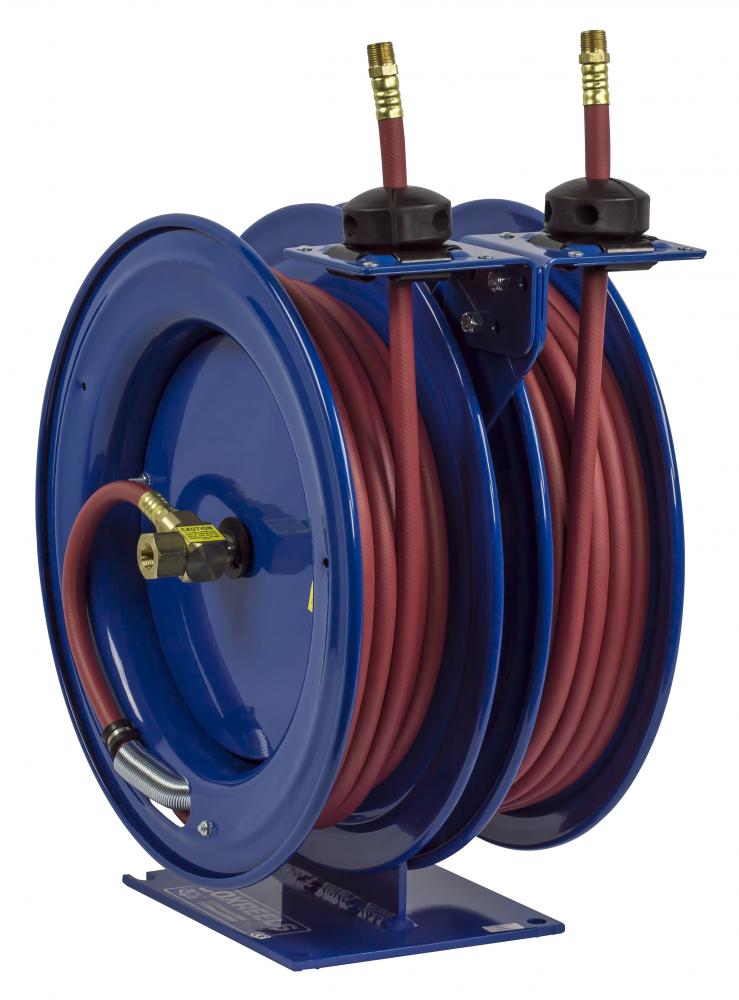

Coxreels C-LP-425-425 Dual Purpose Spring Rewind Hose Reel for air/water: 1/2" I.D., 25' hose each, 300 PSI
