Dual Hydraulic Spring Driven Hose Reel 1/2inx50ft 2500PSIItem is usually in stock, but we'll be in touch if there's a problem
by Coxreels
Dual Hydraulic Spring Driven Hose Reel 1/2inx50ft 2500PSIItem is usually in stock, but we'll be in touch if there's a problem
by Coxreels
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Dual Hydraulic Spring Driven Hose Reel 1/2inx50ft 2500PSIItem is usually in stock, but we'll be in touch if there's a problem
by Coxreels
Price:
Call for Price
Part Number: 8022753
UPC:
Vendor Item Number: TDMP-N-450
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Hose Reels
Industrial Subtype:
Spring Return Hose Reels
Country of Origin:
USA
Currency Code:
Dollars
Item Quantity:
1
Ordering Quantity:
1
Product Series:
TDMP Series
UPC Number:
0674255722910
Manufactured By:
Coxreels
+
Additional Information
- 1" solid steel axle & lubricated precision bearings for smooth rotation
- 1/4" STEEL BASE - Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ triple axle support
- Built for rugged mobile applications
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Dual Hydraulic Hose
- Durable proprietary CPC™ powder coat process
- Enclosed factory tuned & matched cartridge-style spring motor
- External fluid path with dual port melanized 90° full-flow NPT swivel inlet
- Guide arm adjusts to wall, floor, vehicle & overhead positions
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- Multi-position lock ratchet mechanism secures hose at desired length
- Non-corrosive stainless steel spring, pawl & zinc plated ratchet
- One-sided supply/return hookup
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, one-side supply/return hookup, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Solid one piece, heavy gauge 1⁄4" steel base & support posts for maximum strength
- Sturdy dual pedestal design with Coxreels’ exclusive Super Hub™ triple axle support system
- SWIVEL - External fluid path with dual port melanized 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Swivel Seals: TEFLON
Product Overview

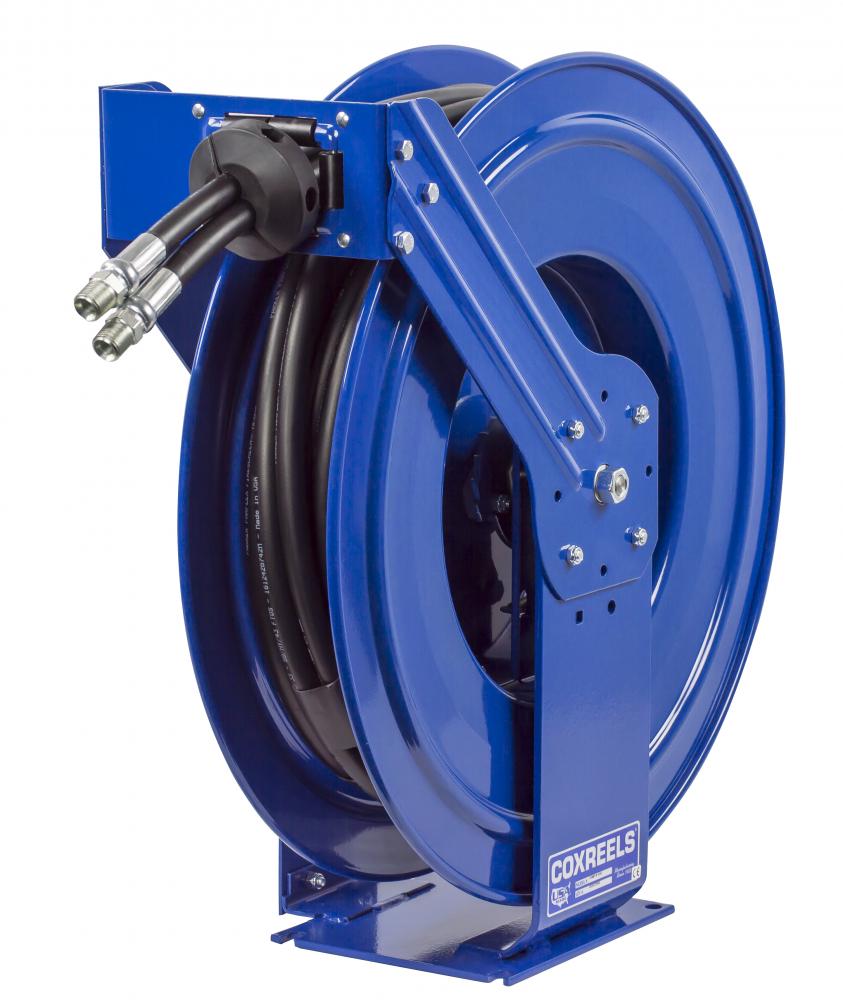

Coxreels TDMP-N-450 Dual Hydraulic Hose Spring Rewind Hose Reel for hydraulic oil: 1/2" I.D., 50' hose, 2500 PSI
