3M™ Scotchlok™ Male-Female DisconnectItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Price:
Call for Price
Part Number: 4081851
UPC:
Vendor Item Number: 7000133194
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Connectors
Industrial Subtype:
Wire Disconnects
Barrel Style:
Insulation Grip
Conductor Size:
16 - 14 AWG
ECCN:
EAR99
Fastener Orientation:
Male-Female
Insulation Color:
Red
Insulation Material:
Nylon with Insulation Grip
Mates with Female Width:
0.25 Inch
Maximum Insulation Outside Diameter:
0.145 in
Maximum Recommended Voltage Rating:
820.0 V
Maximum Wire Gauge:
14 AWG
Minimum Wire Gauge:
16 AWG
Product Key:
KNGP BULK NYLON INSULATION GRIP TERMINALS FKD
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Terminal Style:
Piggy-back
Terminal Type:
Disconnect
Manufactured By:
3M
+
Additional Information
- Accommodates wire sizes 16 to 14 AWG
- Blue nylon-insulated
- butted-seam barrel with a funnel-designed
- Connects a male or female counterpart
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Mates with 0.25 In (0.64 cm) wide male and female tab
- RoHS 2011/65/EU Compliant
- seamless brass sleeve offers easy insertion of wires
- The tongue portion with fingers grip a male quick-slide and a tongue extension grips a female quick-slide
- Withstands a temperature range of -40 to 221 °F (-40 to 105 °C)
Product Overview

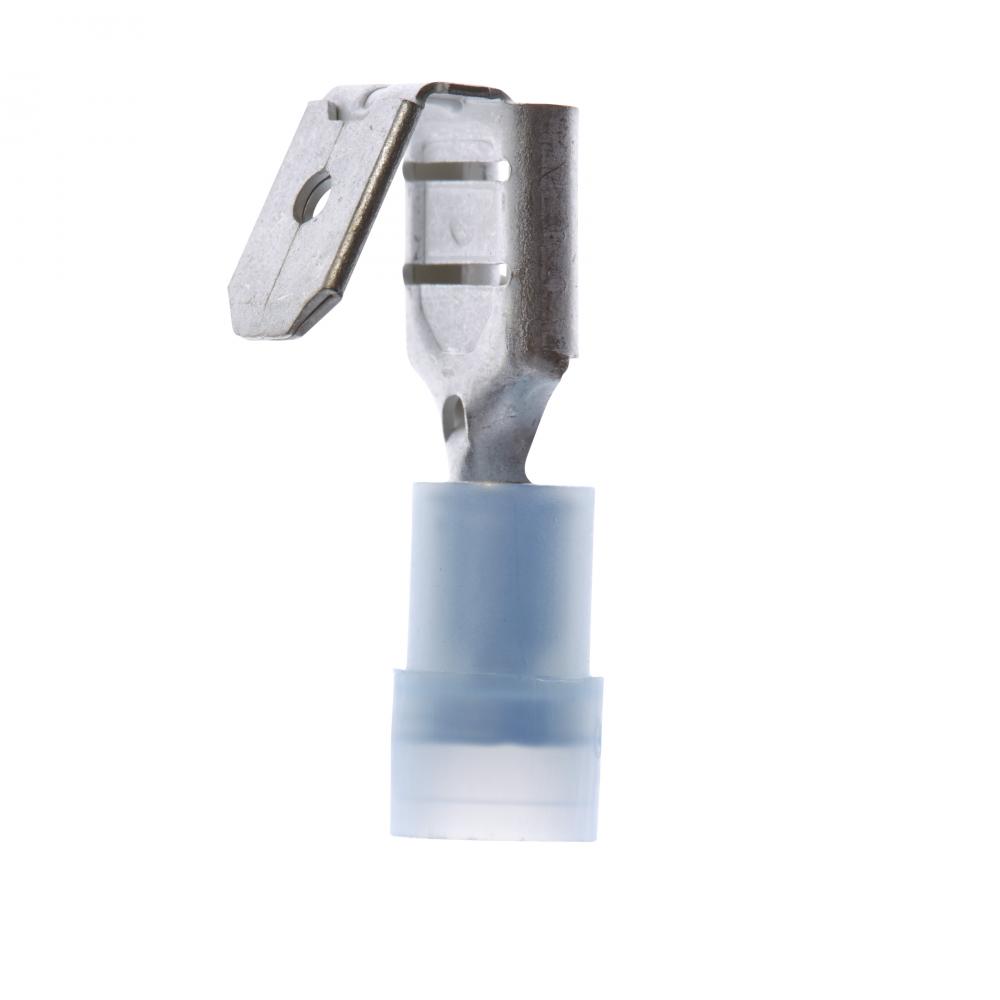

3M™ Scotchlok™ Male-Female Disconnect Terminal provides permanent electrical and mechanical connection to a pre-stripped end of a stranded copper wire. It is rated 300V for building wire. The terminal has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The nylon-sleeve insulation is abrasion-resistant and flared to ensure a positive grip. This terminal withstands temperatures of -40 to 221 degrees Fahrenheit (-40 to 105 degrees Celsius). It has durable brass construction for good conductivity and a tin-plated finish for corrosion resistance.
