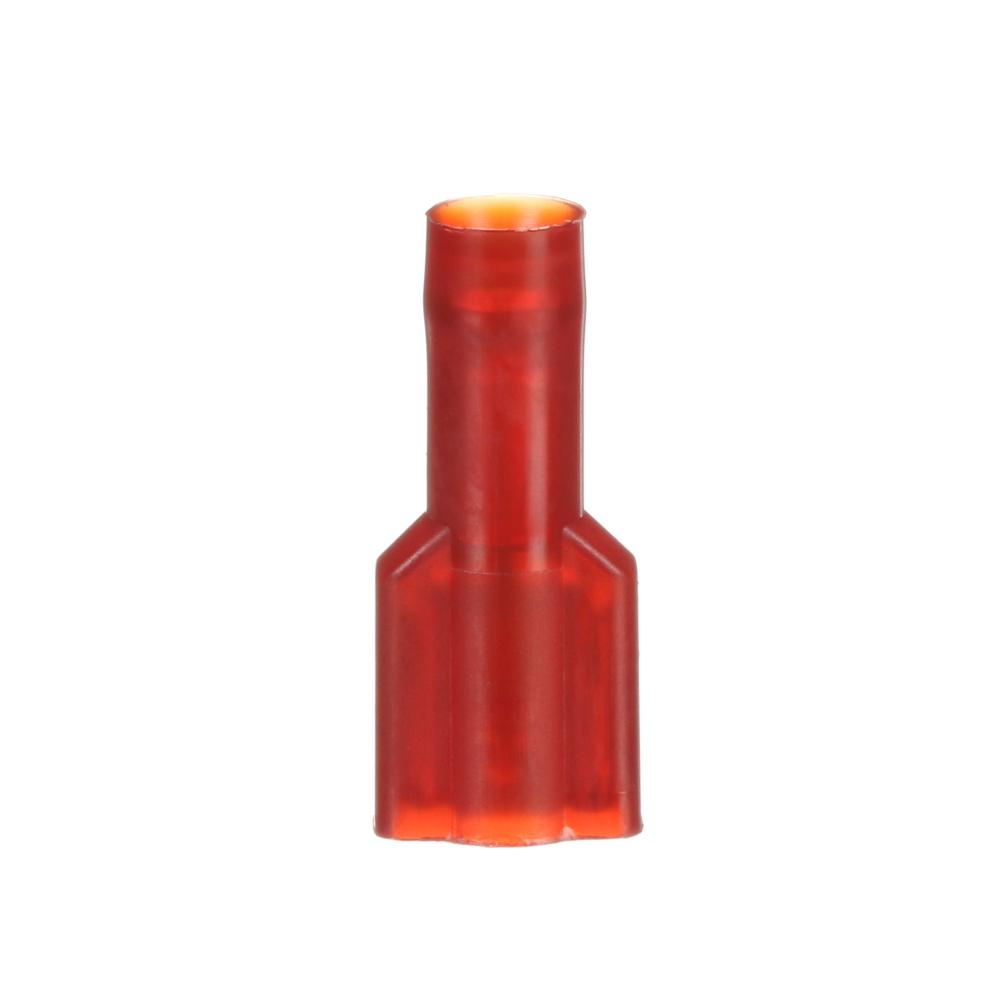

3M™ Scotchlok™ Female DisconnectItem is usually in stock, but we'll be in touch if there's a problem
by 3M
3M™ Scotchlok™ Female DisconnectItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
3M™ Scotchlok™ Female DisconnectItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Price:
Call for Price
Part Number: 40JD9JC
UPC:
Vendor Item Number: 7000133365
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Connectors
Industrial Subtype:
Wire Disconnects
Barrel Inside Diameter:
0.080 Inch
Barrel Style:
Butted
Color Family:
Red
Conductor Size:
22 - 18 AWG
Connection Type:
Wire
Connector Style:
Insulation Displacement
CSA File Number:
LR22190
ECCN:
EAR99
Fastener Orientation:
Female
Flame Retardant:
No
Grease Filling Against Corrosion:
No
Insulation Color:
Red
Insulation Material:
Nylon with Insulation Grip
Interrupt Free Shifting:
No
Material:
ETP Copper
Mates with Female Width:
0.250 Inch
Maximum Insulation Outside Diameter:
0.145 in
Maximum Recommended Voltage Rating:
600.0 V
Maximum Wire Gauge:
18 AWG
Minimum Order Quantity:
100
Minimum Wire Gauge:
22 AWG
Product Color:
Red
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Terminal Style:
Fully Insulated
Terminal Type:
Disconnect
UL File Number:
E70512
UPC Code:
00051128588093
Manufactured By:
3M
+
Additional Information
- Corrosion resistance to water
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Fuse not included
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- No wire stripping needed
- pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
- salt
- steam and other related contaminants
- When crimped and shrunk
- Withstands a temperature range of -40 to 221 °F (-40 to 105 °C)
Product Overview
3M™ Scotchlok™ Female Disconnect is an insulated disconnect which attaches to its mating part by slipping the tongue of the female part over male. It has good corrosion resistance, improved mechanical performance, and is both versatile and easy to use. It has dents and rolled edges to offer good holding force, while allowing for a quick disconnect. The terminal has a fully insulated, nylon, butted-seam barrel, and withstands a maximum temperature of 221 degrees Fahrenheit (105 degrees Celsius). Its durable brass construction offers good conductivity and its tin-plated finish resists corrosion. 3M™ Scotchlok™ Female Disconnects are UL Recognized and CSA certified. 3M™ Scotchlok™ Female Disconnects are UL Recognized and CSA certified.
