3M™ Scotchlok™ Electrical Insulation Displacement ConnectorItem is usually in stock, but we'll be in touch if there's a problem
by 3M
3M™ Scotchlok™ Electrical Insulation Displacement ConnectorItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
3M™ Scotchlok™ Electrical Insulation Displacement ConnectorItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Price:
Call for Price
Part Number: 40JGD58
UPC:
Vendor Item Number: 7100167058
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Connectors
Industrial Subtype:
Insulation Displacement Connectors
Color Family:
Brown
Conductor Size:
18 - 14 AWG (Tap), 12 - 10 AWG (Run)
Connection Type:
Run & Tap
Connector Style:
Insulation Displacement
CSA File Number:
LR15503, LR32411
Flame Retardant:
Yes
Grease Filling Against Corrosion:
No
Insulation Color:
Brown
Insulation Material:
Polypropylene
Interrupt Free Shifting:
No
Material:
Insulator: FR Polypropylene, U-contact: Tin-plated Brass
Maximum Recommended Voltage Rating:
600.0 V
Maximum Wire Gauge:
14 AWG (Tap), 10 AWG (Run)
Minimum Wire Gauge:
18 AWG
Moisture Resistant:
No
Product Color:
Brown
Product Type:
Connector
Recommended Crimping Tool:
E-9BM or 9 in. Linemans Pliers
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
UL File Number:
E23438
UPC Code:
00054007148876
Voltage Application:
Low Voltage
Manufactured By:
3M
+
Additional Information
- Connects and insulates in one step
- Designed for use with the 3M™ Scotchlok™ Crimping Tool
- E-9BM
- Flame retardant
- Moisture resistant
- Self-stripping
Product Overview

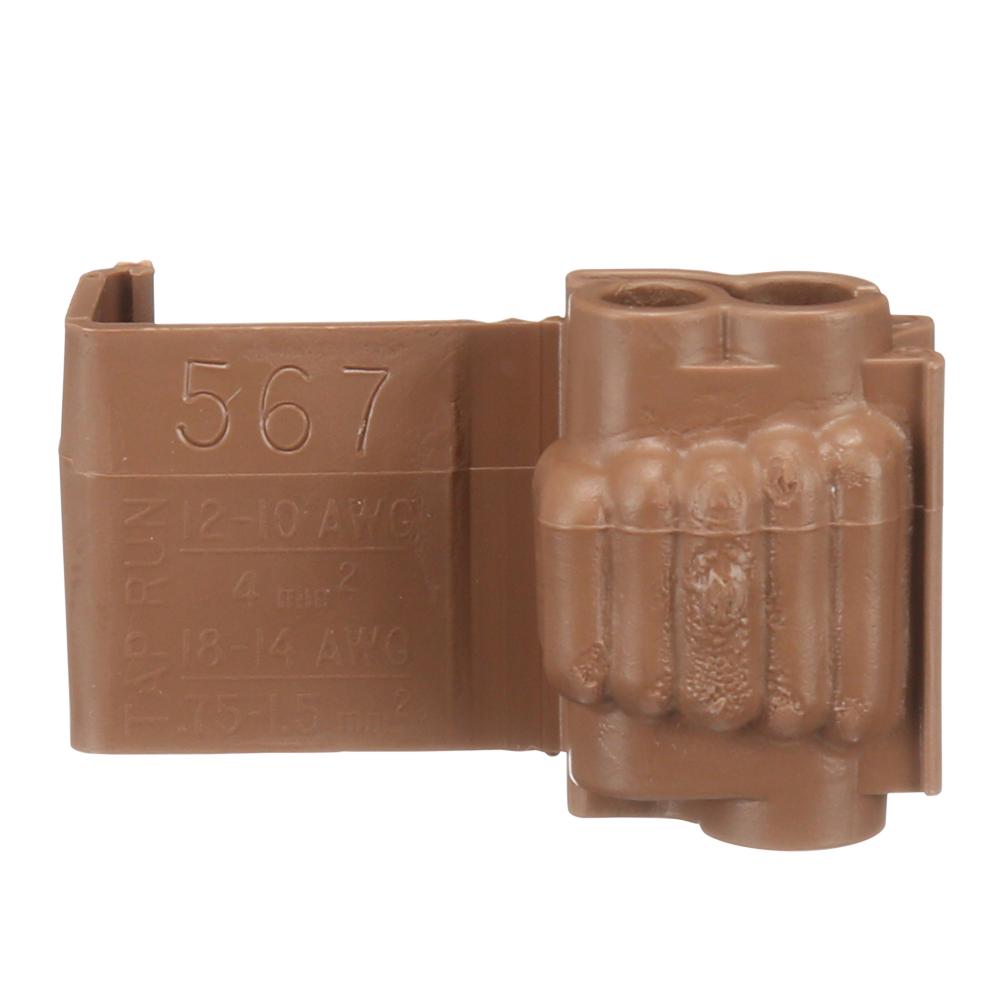

3M™ Scotchlok™ Electrical Insulation Displacement Connector electrically connects a wire end (tap) to a through (run) wire and insulates the connection. This connector is also flame retardant and is designed for tape and parallel splicing. It has a maximum insulation O.D. diameter of 0.145 inches (3.68 mm), and a tap of 0.190 inches (4.82 mm). This product also features a run and operating temperature of 221 degrees Fahrenheit (105 degrees Celsius). The suggested application tool for the 3M™ Scotchlok™ Electrical Insulation Displacement Connector, 567, is the 3M™ Scotchlok™ Crimping Tool, E-9BM.
