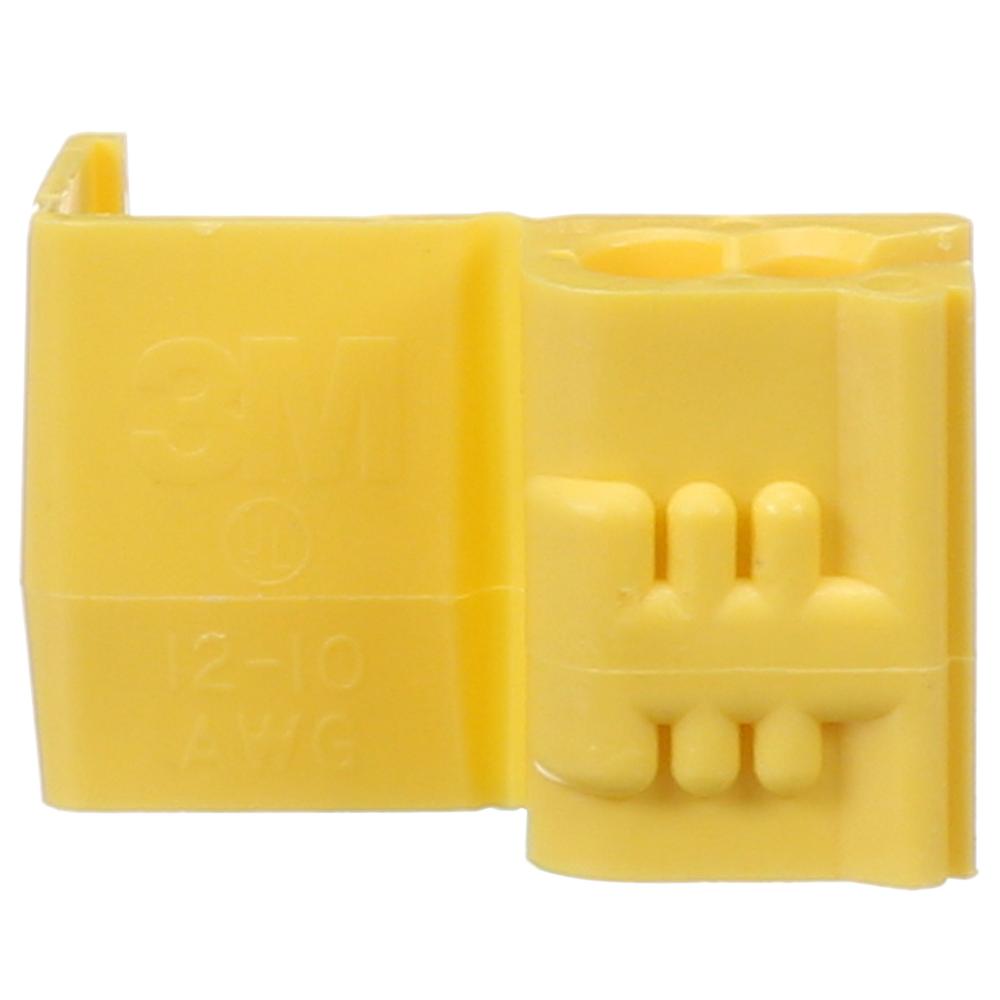

3M™ Scotchlok™ Electrical Insulation Displacement Connector (IDC)Item is usually in stock, but we'll be in touch if there's a problem
by 3M
Price:
Call for Price
Part Number: 407Y7HF
UPC:
Vendor Item Number: 7100003124
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Connectors
Industrial Subtype:
Insulation Displacement Connectors
Color Family:
Yellow
Conductor Size:
12 AWG / 10 AWG Str
Connection Type:
Double Run or Tap
Connector Style:
Insulation Displacement
ECCN:
EAR99
Flame Retardant:
Yes
Grease Filling Against Corrosion:
No
Insulation Color:
Yellow
Insulation Material:
Polypropylene
Interrupt Free Shifting:
No
Material:
Insulator: FR Polypropylene, U-contact: Tin-plated Brass
Maximum Recommended Voltage Rating:
600.0 V
Maximum Wire Gauge:
10 AWG Stranded
Minimum Wire Gauge:
12 AWG
Moisture Resistant:
No
Package Quantity:
1000.0
Product Color:
Yellow
Product Type:
Connector
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
UL File Number:
E23438
Voltage Application:
Low Voltage
Manufactured By:
3M
+
Additional Information
- Connects and insulates in one step
- Flame retardant
- Self-stripping
Product Overview
Use 3M™ Scotchlok™ Electrical IDC 562 to electrically connect a wire end (tap) to a through (run) wire and insulate the connection. It has a maximum insulation O.D. diameter of 0.190 inches (4.82 mm) and an operating temperature of 221°F (105°C). The suggested application tool for the 3M™ Scotchlok™ Electrical IDC 562 is the 3M™ Scotchlok™ Crimping Tool E-9BM.
