3M™ Scotchlok™ Electrical Insulation Displacement Connector (IDC)Item is usually in stock, but we'll be in touch if there's a problem
by 3M
3M™ Scotchlok™ Electrical Insulation Displacement Connector (IDC)Item is usually in stock, but we'll be in touch if there's a problem
by 3M
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
3M™ Scotchlok™ Electrical Insulation Displacement Connector (IDC)Item is usually in stock, but we'll be in touch if there's a problem
by 3M
Price:
Call for Price
Part Number: 40JGD56
UPC:
Vendor Item Number: 7000148820
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Connectors
Industrial Subtype:
Insulation Displacement Connectors
Color Family:
Red
Connection Type:
Pigtail
Connector Style:
Insulation Displacement
ECCN:
EAR99
Flame Retardant:
Yes
Grease Filling Against Corrosion:
No
Insulation Color:
Red
Insulation Material:
Polypropylene
Interrupt Free Shifting:
No
Material:
Polypropylene, Fitted Contact - Tinned Brass (Body)
Maximum Recommended Voltage Rating:
600.0 V
Maximum Wire Gauge:
16 AWG
Minimum Wire Gauge:
22 AWG
Moisture Resistant:
No
Product Color:
Red
Product Type:
Connector
Recommended Crimping Tool:
E-9BM
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
UPC Code:
00054007215028
Manufactured By:
3M
+
Additional Information
- Connects a (tap) wire end to a through (run) wire
- Connects and insulates in one step
- Flame retardant
- Self-stripping
Product Overview

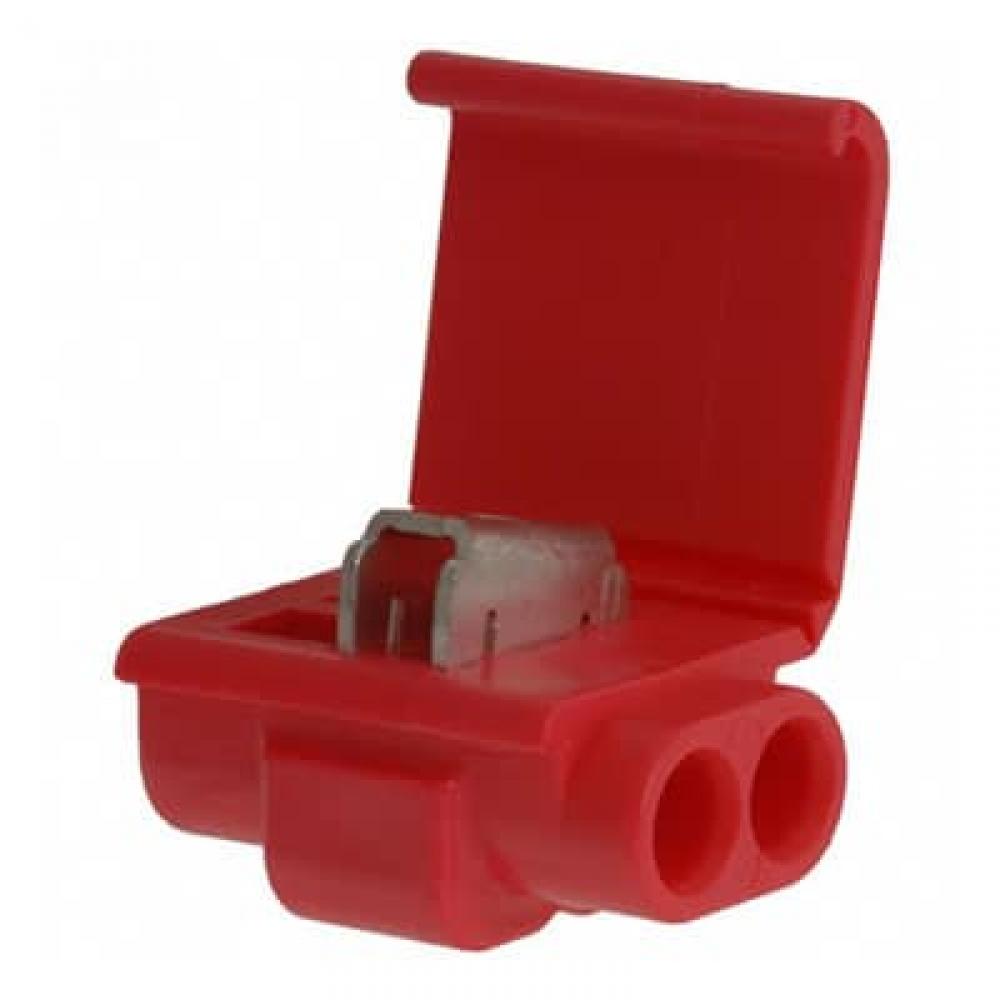

3M™ Scotchlok™ Electrical IDC 558 electrically connects a (tap) wire end to a through (run) wire and insulates the connection. It is flame retardant and features a maximum insulation O.D. diameter of 0.120 inches (3.05 mm), and an operating temperature of 221°F (105°C). It is designed for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems or automotive/ boat/ RV wiring. The suggested application tool for the 3M™ Scotchlok™ Electrical IDC 558 is the 3M™ Scotchlok™ Crimping Tool E-9BM.
