3M™ Scotchlok™ Double Male-Female Multi-Stack Adapter, MA250DMMFK, non-insulatedItem is usually in stock, but we'll be in touch if there's a problem
by 3M
3M™ Scotchlok™ Double Male-Female Multi-Stack Adapter, MA250DMMFK, non-insulatedItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
3M™ Scotchlok™ Double Male-Female Multi-Stack Adapter, MA250DMMFK, non-insulatedItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Price:
Call for Price
Part Number: 40JRQ07
UPC:
Vendor Item Number: 7000005897
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Connectors
Barrel Style:
Butted
CSA File Number:
LR22190
ECCN:
EAR99
Fastener Orientation:
Double Male-Female
Insulation Material:
Non-insulated
Material:
Plastic
Maximum Insulation Outside Diameter:
0.145 in
Maximum Recommended Voltage Rating:
606.0 V
Maximum Voltage Rating:
600 to 1000 V
Product Key:
KVBZ BULK VINYL BLAZED SEAM TERMINALS FKD
Product Type:
Connector
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Terminal Style:
Adapter
Terminal Type:
Disconnect
UL File Number:
E70512
Manufactured By:
3M
+
Additional Information
- 600V-rated for building wire and 1000V for signs
- butted-seam barrel
- CSA Certified and RoHS 2011/65/EU Compliant
- Features a non-insulated
- fixtures or luminaires
- Made of durable brass for good conductivity and tin-plated for corrosion resistance
- Mates with 0.25-in wide female and male tab
- UL Listed
- Withstands a maximum temperature of 482 °F (250 °C)
Product Overview

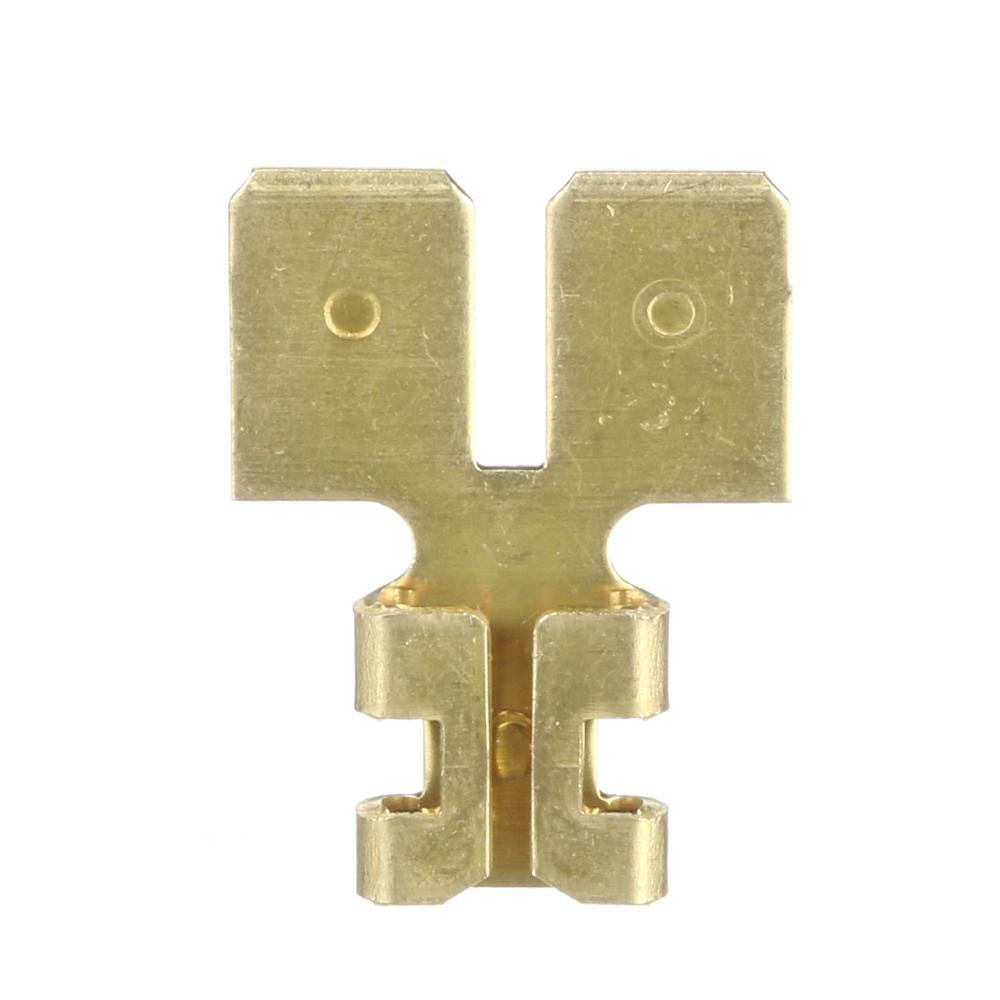

3M™ Scotchlok™ Double Male-Female Adapter interconnects two connectors that are already attached to wires. The adapter has a non-insulated, butted-seam barrel and withstands a maximum temperature of 482 degrees Fahrenheit (250 degrees Celsius). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion. This product is UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
