3M™ Scotchlok™ Block ForkItem is usually in stock, but we'll be in touch if there's a problem
by 3M

3M™ Scotchlok™ Block Fork<span class=' ItemWarning' style='display:block;'>Item is usually in stock, but we&#39;ll be in touch if there&#39;s a problem<br /></span>

3M™ Scotchlok™ Block ForkItem is usually in stock, but we'll be in touch if there's a problem
by 3M

Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item

3M™ Scotchlok™ Block ForkItem is usually in stock, but we'll be in touch if there's a problem
by 3M

    Price:
    Call for Price
    Part Number: 40JNGH6
    UPC:
    Vendor Item Number: 7000133278
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Connectors
Industrial Subtype:
Fork Terminals
Barrel Inside Diameter:
0.070 Inch
Barrel Style:
Butted
Color Family:
Red
Conductor Size:
22 - 18 AWG
CSA File Number:
LR22190
Dimension E:
0.69 Inch
ECCN:
EAR99
Fork Type:
Block
Insulation Material:
Nylon with Insulation Grip
Material:
ETP Copper
Maximum Insulation Outside Diameter:
0.145 in
Maximum Recommended Voltage Rating:
600.0 V
Maximum Wire Gauge:
18 AWG
Minimum Order Quantity:
100
Minimum Wire Gauge:
18 AWG
Product Color:
Red
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Stud Size:
#6
Terminal Style:
Block
Terminal Type:
Fork
UL File Number:
E23438
UPC Code:
00051128586525
Manufactured By:
3M
+
Additional Information
  • 600V-rated for building wire and 1000V for signs
  • Accommodates wire sizes 22 to 18 AWG
  • Effective and reliable performance
  • Electrolytic copper construction offers good conductivity
  • fixtures or luminaires
  • Maximum Operating Temperature 221°F (105°C)
  • Positive and easy wire insertion
Product Overview

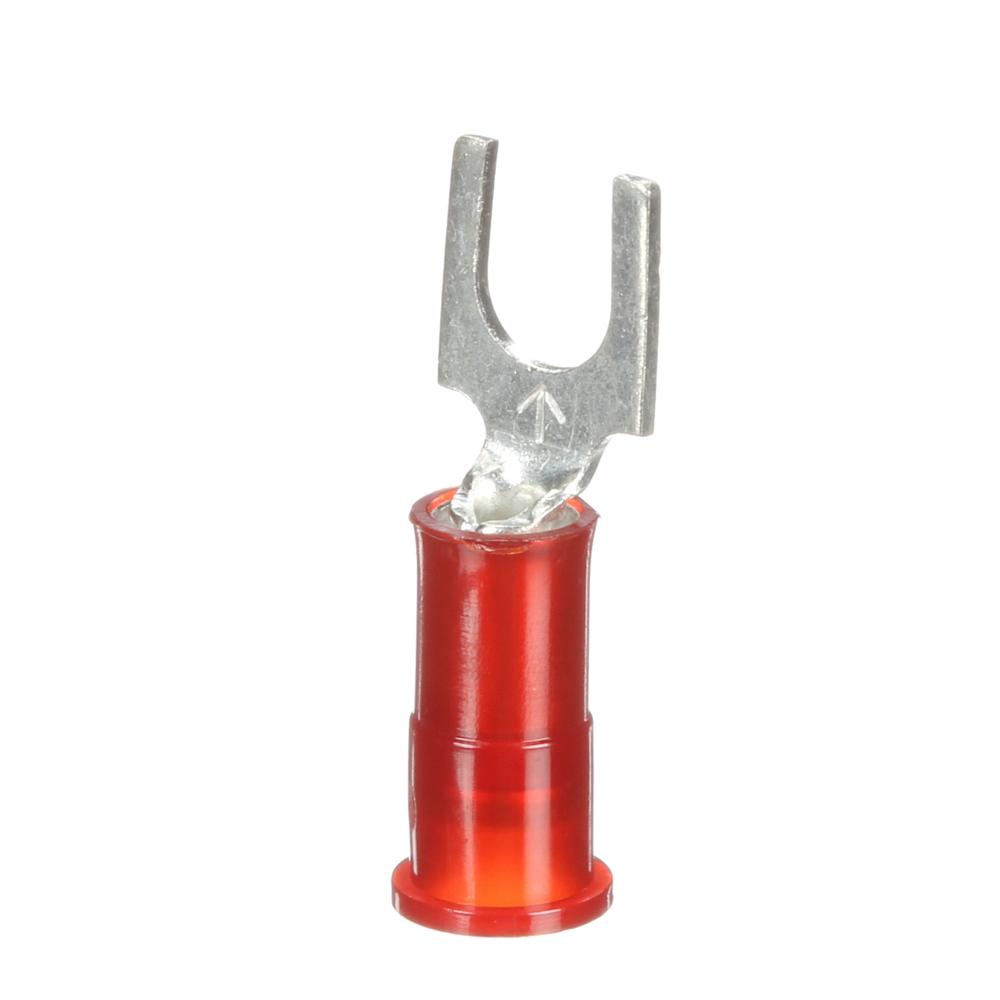

3M™ Scotchlok™ Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees Fahrenheit (-40 to 105 degrees Celsius). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. They are also colour-coded for quick and easy identification of the wire size required. It has a brazed-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. 3M™ Scotchlok™ Block Forks are UL Recognized and CSA certified.
