3M™ Scotchcast™ Flexible Splice Kit 82-F1, 1 Splice/KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M
3M™ Scotchcast™ Flexible Splice Kit 82-F1, 1 Splice/KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
3M™ Scotchcast™ Flexible Splice Kit 82-F1, 1 Splice/KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Price:
Call for Price
Part Number: 40JD9J1
UPC:
Vendor Item Number: 7000006240
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Connectors
Industrial Subtype:
Splice Kits
Cable Shielding:
Non-shielded
Cable Type:
multi core, non shielded, rubber insulated reeling cables
Color Family:
Black
Conductor Amount:
Multiple
Connection Max Outside Diameter:
Multiple Conductors - 0.90 inch
ECCN:
EAR99
Flame Retardant:
Resin only
Gel Time:
17 min 73 °F (23 °C)
Hardness:
82 Shore A
Maximum Operating Voltage:
5 Kilovolt
Mining Sector Approval:
Yes
Model:
Cast Resin
Number of Conductors:
3.0
Product Color:
Black
Product Technology:
Resin
Resin Type:
SC 2131
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Shelf Life:
36.0 mo
Splice Type:
Inline
UPC Code:
00051128591765
Voltage:
5 kV (single), 1 kV (multiple)
Voltage Application:
Low Voltage
Voltage Rating:
0.6/1 kV
With Screw Connectors:
No
Manufactured By:
3M
+
Additional Information
- Kit contains everything needed to make one splice (except connectors)
- MSHA Approved and RoHS 2011/65/EU Compliant
- Reliable and durable
- Resin is packaged in convenient bag for easy mixing and pouring
- Semi-flexible compound
Product Overview

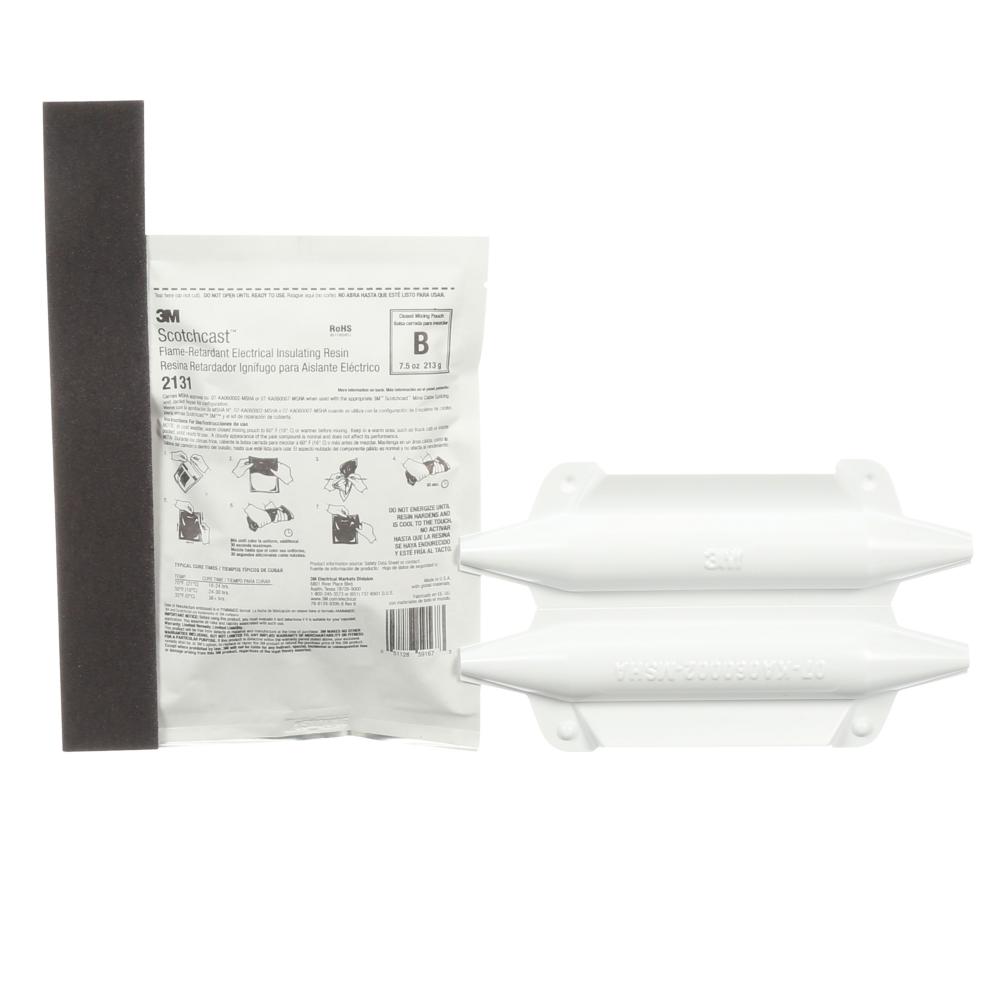

The 3M™ Scotchcast™ Flexible Power Cable Splicing Kit 82-F Series is intended for use on non-shielded single conductor cables through 5 kV and on multiple conductor cables through 1 kV.Each 3M Scotchcast Flexible Power Cable Splicing Kit 82-F Series includes: One 3M Removable Mold Body, one bag of 3M Scotchcast Flame-Retardant Compound 2131, three strips of Scotch Self-Fusing Rubber Splicing Tape 23, one strip of 3M Three-M-Ite Elek-Tro-Cut Abrasive Cloth and one Instruction Sheet. The kits are designed for use with inline compression connectors (not included).
