3M™ Scotchcast™ Electrical Insulating and Sealing Compound 2104B, 7.4 oz (209 g)Item is usually in stock, but we'll be in touch if there's a problem
by 3M
3M™ Scotchcast™ Electrical Insulating and Sealing Compound 2104B, 7.4 oz (209 g)Item is usually in stock, but we'll be in touch if there's a problem
by 3M
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
3M™ Scotchcast™ Electrical Insulating and Sealing Compound 2104B, 7.4 oz (209 g)Item is usually in stock, but we'll be in touch if there's a problem
by 3M
Price:
Call for Price
Part Number: 4081G0A
UPC:
Vendor Item Number: 7000145509
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Adhesives, Sealants and Tape
Industrial Subcategory:
Glues and Cements
Industrial Subtype:
Epoxy
Cable Insulation Outside Diameter Range:
0.87 in - 1.06 in
Cable Shielding:
Jacketed Concentric Neutral (JCN)
Color Family:
Green
Connector Included:
CIR-21
Cure Method:
Room
ECCN:
EAR99
Elongation:
98.0 %
Flexibility:
Flexible
Form:
Liquid
Gel Time:
18 min @ 73 °F (23 °C)
Hardness:
70 Shore A
Material:
Polyurethane
Maximum Operating Temperature:
130 Degree Celsius
Number of Conductors:
1.0
Product Key:
BRES BULK RESINS FJC
Product Technology:
Molded Rubber
Product Type:
Splice
Resin Matrix:
Unfilled
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Splice Type:
Inline Repair
Temperature Rating:
Class B
UPC Code:
00054007313823
Voltage:
28 kV
Manufactured By:
3M
+
Additional Information
- eliminating voids
- even at low temperatures
- Excellent wetting properties and low viscosity
- Flows well
- Packaged in convenient 3M two part Unipak bag for easy mixing and pouring
- Room temperature cure
- Tough and semi-flexible
- Withstands a voltage rating of 1 kV or less
Product Overview

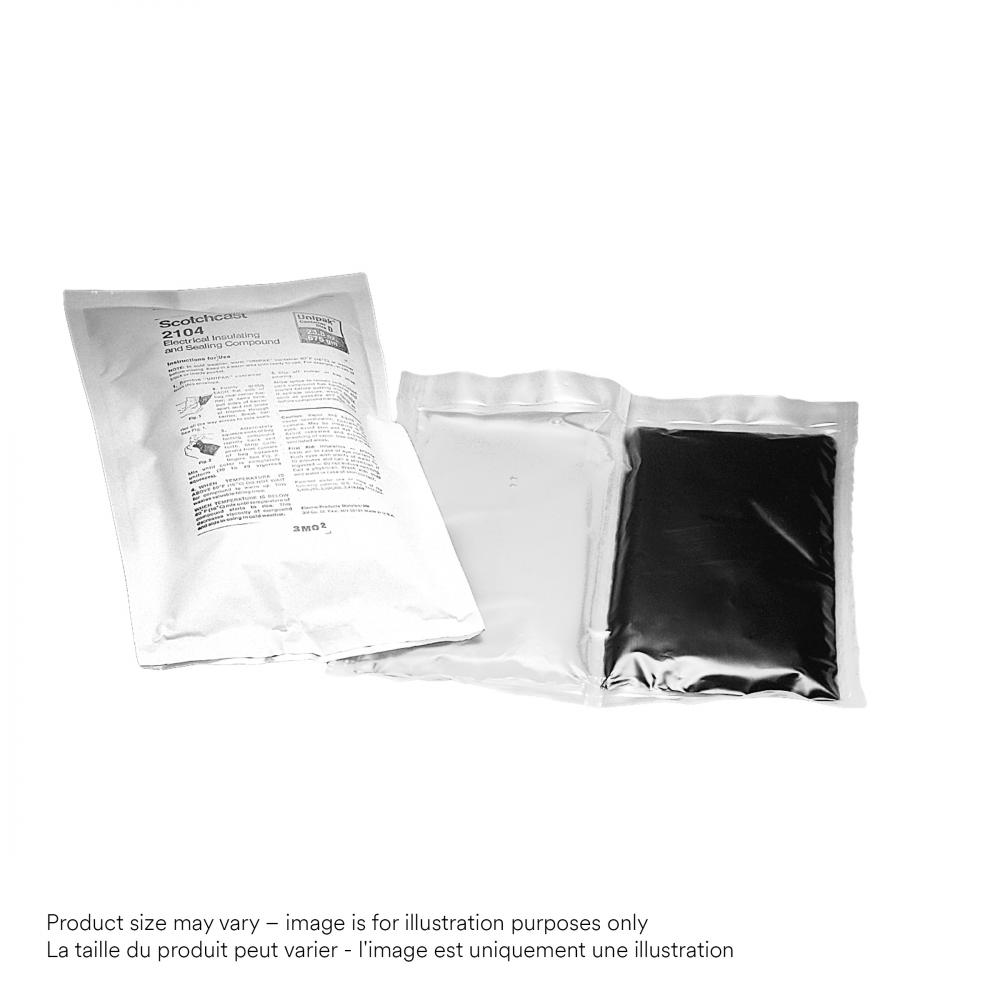

The 3M™ Scotchcast™ Electrical Insulating and Sealing Compound is a two-part, low-viscosity polyurethane for permanent splice protection.The 3M Scotchcast Electrical Insulating Resin 2104 is a hard, two-part, polyurethane resin encapsulate designed specifically for permanent splice protection. It is formulated for virtually every electrical application requiring hard, non-re-enterable resin with good handling and performance characteristics. The resin is also used as the insulating material for cable splices operating at 1000 volts or less and is rated for continuous use at 90C with an overload rating of 130C. It may be stocked to cover all hard resin needs, ending the need for multiple encapsulate inventories. Gel time is 18 minutes at 23C.
