Metallic Shield Diameter Range:
Product Type:
Splice Jacketing and Rejacketing Kits
- Designed to be used in conjunction with 3M™ Cold Shrink Breakout Boots and 3M™ Silicone Rubber Terminations
- Easy to adjust sleeve length
- Excellent resistance to ozone and ultra-violet radiation
- Good solvent resistance
- heat or special tools required
- Installs quickly and accommodates a wide range of cable sizes
- No torches
- Pre-cut into three pieces
- Seals tight and retains resiliency and pressure

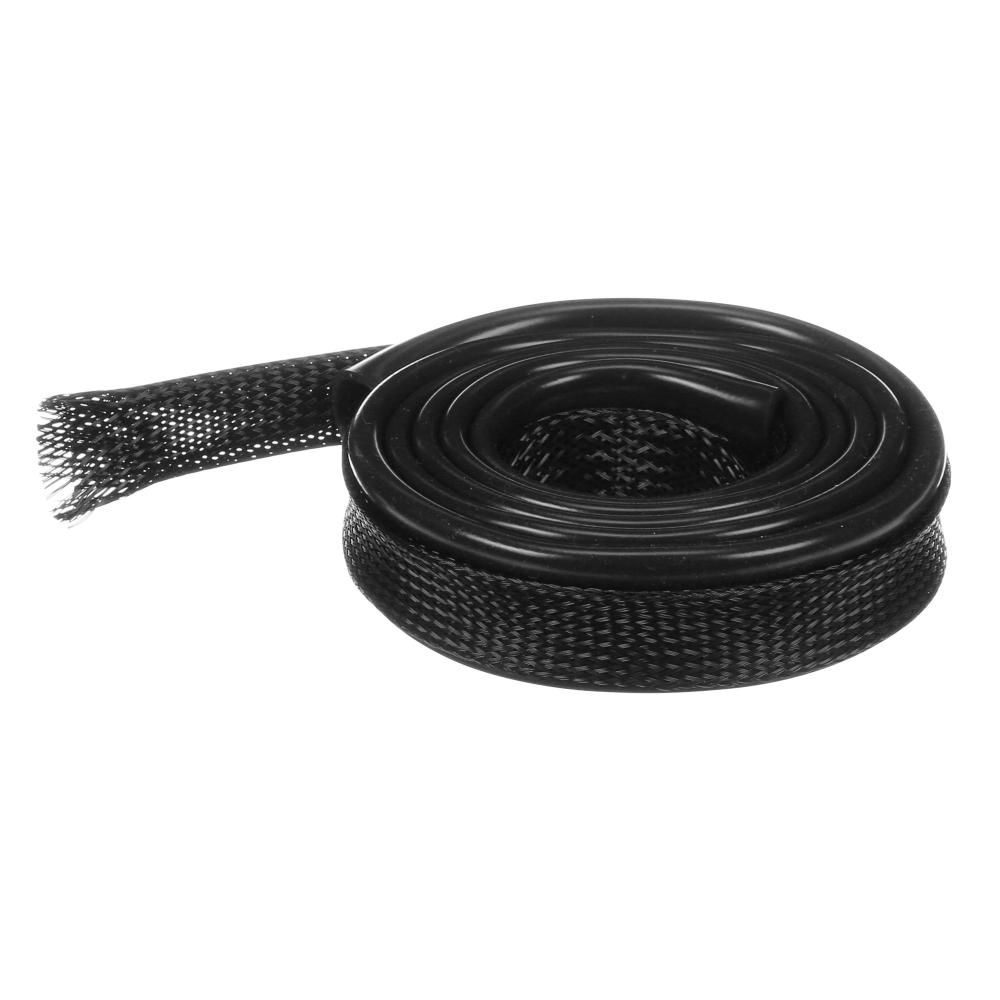

3M™ Rejacketing Sleeves RJS Series are designed so that 3M™ Cold Shrink QT-III and Q-TIII Silicone Rubber Terminations can be used on 3/C (three conductor) medium voltage shielded power cables of tape shield, wire shield, armoured and non-armoured configurations. Rejacketing sleeves are designed to protect the phase legs (core) of 3/C shielded power cable from exposure to moisture, corrosion, ozone, ultra-violet radiation, physical contact and other hazards that are associated with termination operating environments. The 3M™ Rejacketing Sleeve RJS-2 is to be used in conjunction with 3M™ Cold Shrink Breakout Boots and Silicone Rubber Terminations. The 3M™ Rejacketing Sleeve RJS-2 has a metallic shield diameter range of 0.6-0.8 inch (15.2-20.3 mm), a voltage range of 3.3-15 kV, and three 4-foot (1.2 m) coils per case.
