3M™ Performance Plus™ Wire Connector B/G+POUCH, Blue/Grey, 14 - 6 AWG, 50/Pouch, 500/CaseItem is usually in stock, but we'll be in touch if there's a problem
by 3M

3M™ Performance Plus™ Wire Connector B/G+POUCH, Blue/Grey, 14 - 6 AWG, 50/Pouch, 500/Case<span class=' ItemWarning' style='display:block;'>Item is usually in stock, but we&#39;ll be in touch if there&#39;s a problem<br /></span>

3M™ Performance Plus™ Wire Connector B/G+POUCH, Blue/Grey, 14 - 6 AWG, 50/Pouch, 500/CaseItem is usually in stock, but we'll be in touch if there's a problem
by 3M

Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item

3M™ Performance Plus™ Wire Connector B/G+POUCH, Blue/Grey, 14 - 6 AWG, 50/Pouch, 500/CaseItem is usually in stock, but we'll be in touch if there's a problem
by 3M

    Price:
    Call for Price
    Part Number: 4087L8D
    UPC:
    Vendor Item Number: 7100127167
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Connectors
Industrial Subtype:
Wire Connector and Terminal Kits
Color Family:
Multi-color
Conductor Size Unit:
AWG
Connection Type:
Wire
Connector Style:
Twist On
Flame Retardant:
Yes
Grease Filling Against Corrosion:
No
Insulation Color:
Blue/Gray
Insulation Material:
Polypropylene & Thermoplastic Elastomer
Interrupt Free Shifting:
No
Material:
Plastic
Maximum Insulation Outside Diameter:
0.145 in
Maximum Recommended Voltage Rating:
600.0 V
Maximum Voltage Rating:
600 V (1000 V in signs, lighting fixtures and luminaries)
Maximum Wire Gauge:
6 AWG
Minimum Wire Gauge:
14 AWG
Product Color:
Blue
Product Type:
Connector
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
UPC Code:
00054007431503
Voltage:
750 V
Voltage Rating:
600 V
Wire Connector Type:
Twist-on Wire Connectors
Manufactured By:
3M
+
Additional Information
  • 600V-rated for building wire and 1000V-rated for signs
  • CE Marking and CSA/IEC Certified
  • comfortable feel
  • Compact size and red miniskirt
  • fixtures or luminaires
  • Flame-retardant
  • Incorporates a spring mechanism to spin on quickly and tighten down easily
  • polypropylene and thermoplastic elastomer construction
  • Quick bite spring design
  • Smooth
  • UL Listed
  • Withstands temperatures up to 221 °F (105 °C)
Product Overview

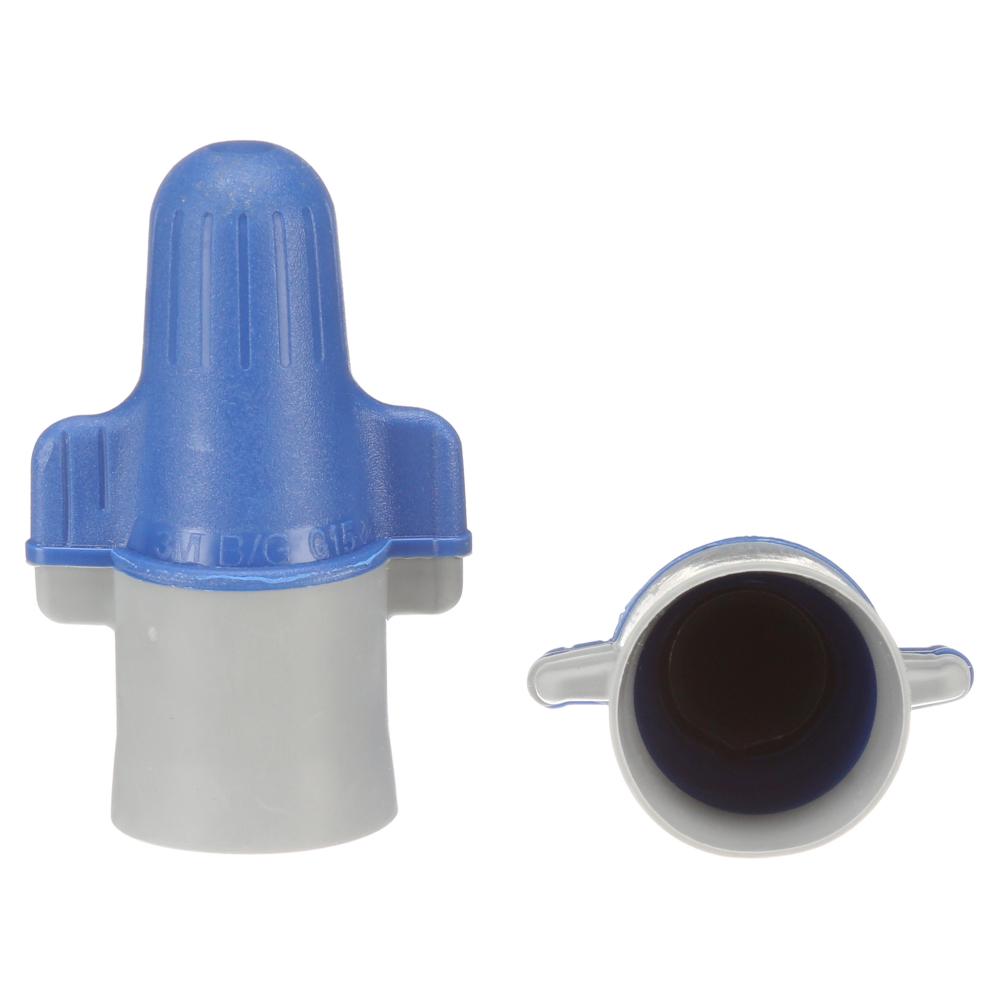

The 3M™ Performance Plus™ Wire Connector electrically connects two or more conductor ends in a pigtail application and insulates the connection. It combines a very small shell with an increased wire range. The spring bites wire quickly with minimal effort, and the small shell fits easily into tight spaces, while its flexible skirt helps protect workers from contact with over-stripped wires.This 3M Performance Plus Wire Connector is great for various conductor sizes: four #14, two #2, and three #8 AWG. 3M Performance Plus Wire Connectors are UL Listed for 600 volts on copper wire. They are available in five colour/wire range options: O/B+ (orange/blue) 2 #22 - 3 #12 AWG, T/Y+ (tan/yellow) 2 #22 - 3 #12 AWG, R/Y+ (red/yellow) 2 #18 - 2 #8 AWG, T/R+ (tan/red) 2 #18 - 5 #12 AWG, and B/G+ (blue/grey) 4 #14 - 2 #6 AWG.
