3M™ Motor Lead Pigtail Splice Kit 5383Item is usually in stock, but we'll be in touch if there's a problem
by 3M
3M™ Motor Lead Pigtail Splice Kit 5383Item is usually in stock, but we'll be in touch if there's a problem
by 3M
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
3M™ Motor Lead Pigtail Splice Kit 5383Item is usually in stock, but we'll be in touch if there's a problem
by 3M
Price:
Call for Price
Part Number: 40JNGG9
UPC:
Vendor Item Number: 7000133145
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Connectors
Industrial Subtype:
Splice Kits
Application:
Cable Connection
Cable Shielding:
Jacketed Concentric Neutral (JCN)
Cable Type:
Concentric Neutral (CN)
Conductor Material:
Copper
Connection Type:
Pigtail (Shielded)
Connector Included:
No
ECCN:
EAR99
Maximum Bolt Length:
1-1/4 in
Maximum Feeder Lead Size:
250 kcmil
Maximum Lug Length:
4 in
Maximum Motor Lead Size:
250 kcmil
Maximum Operating Voltage:
8 kV
Maximum Wire Gauge:
500mm²
Minimum Wire Gauge:
240mm²
Number of Conductors:
1.0
Product Type:
Splice
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Splice Type:
Pigtail or V-stub
Typical Splice Length:
35 in
UPC Code:
00051128559536
Voltage:
5 kV - 8 kV
Voltage Application:
Medium Voltage
Manufactured By:
3M
+
Additional Information
- BIL rating is 150 kV
- Easy Re-entry
- Fast and simple installation
- No torches or heat source required
- Thick walls to resist puncture and abrasion damage
- which exceeds the normal 110 kV
Product Overview

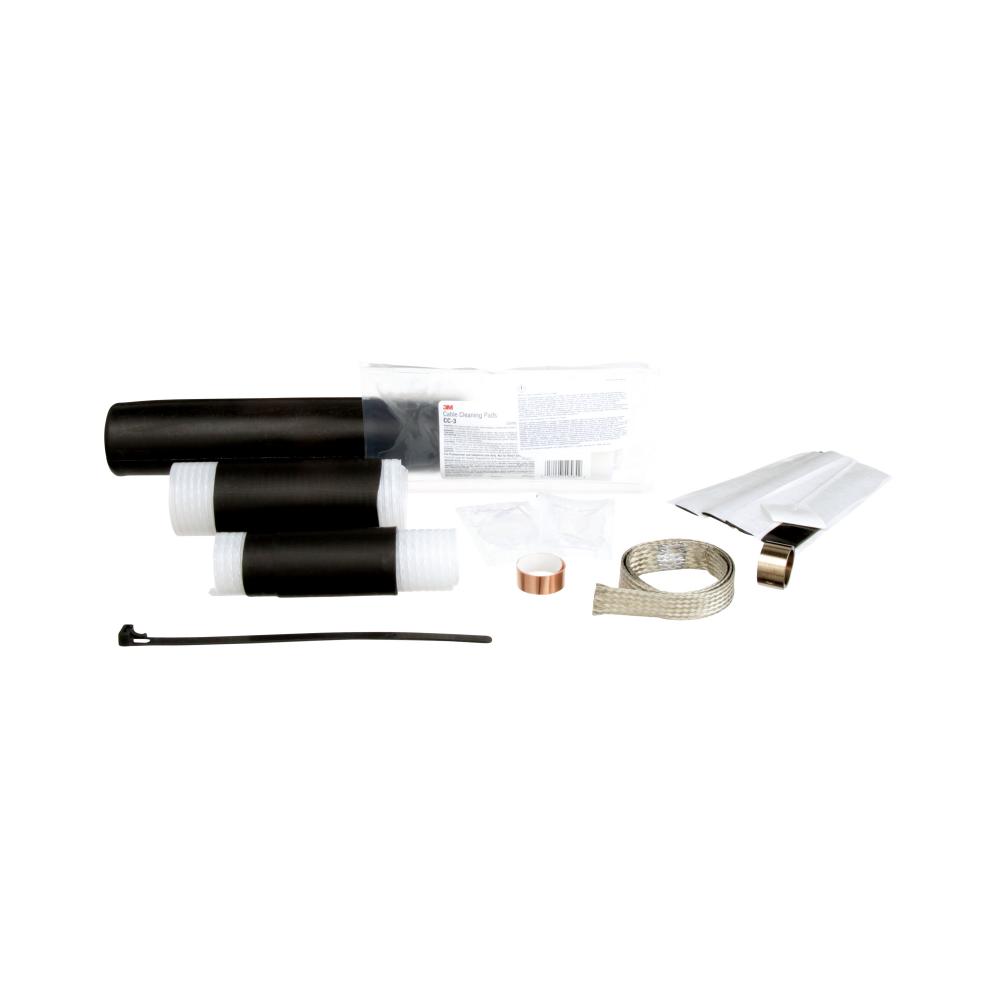

The 3M™ Motor Lead Splicing Kits 5380 are a series of kits designed for splicing motor lead cables to incoming feeder cables. These kits can accommodate pigtail (stub) connections, 5/8 kV shielded and non-shielded feeders.The 3M Motor Lead Pigtail Splice Kit contains all the necessary materials (except lugs, which are sold separately) needed to make three splices: Three 3M Lug Covers, three 3M Cold Shrink Terminations, twelve 3M Mastic Sealing Strips, three 3M Copper Tape Strips, three 3M Cleaning Kits, six 3M Tubes Silicone Grease, three 3M Cold Shrink Jacket Tubes, three 3M Constant Force Springs, three 3M Cable Ties, three 3M Ground Straps and one Instruction Sheet.
