3M™ Motor Lead Pigtail Splice Kit 5302Item is usually in stock, but we'll be in touch if there's a problem
by 3M
3M™ Motor Lead Pigtail Splice Kit 5302Item is usually in stock, but we'll be in touch if there's a problem
by 3M
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
3M™ Motor Lead Pigtail Splice Kit 5302Item is usually in stock, but we'll be in touch if there's a problem
by 3M
Price:
Call for Price
Part Number: 4084EQL
UPC:
Vendor Item Number: 7000005806
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Connectors
Industrial Subtype:
Splice Kits
Application:
Polyethylene Cable , Ethylene Propylene Rubber Cable , For Insulating and Sealing Motor Lead Connections for Copper Conductors , Cross Linked Polyethylene Cable
Cable Shielding:
Single Conductor Cable
Color Family:
Black
Connection Type:
Pigtail (Non-shielded)
ECCN:
EAR99
Kit Includes:
(3) Pigtail Lug Covers
Lug Cover Inner Diameter:
0.95 in
Lug Cover Length:
4.2 in
Maximum Bolt Length:
3/4 in
Maximum Feeder Lead Size:
1/0 AWG
Maximum Motor Lead Size:
1/0 AWG
Maximum Operating Voltage:
1 kV
Product Color:
Black
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Splice Type:
Pigtail Only
Voltage:
1 kV
Manufactured By:
3M
+
Additional Information
- Contains all materials required to make three splices (excluding lugs)
- CSA Certified and RoHS 2011/65/EU Compliant
- Easy Re-entry
- Fast and simple installation
- No torches or heat source needed to install
- Thick walls to resist puncture and abrasion damage
Product Overview

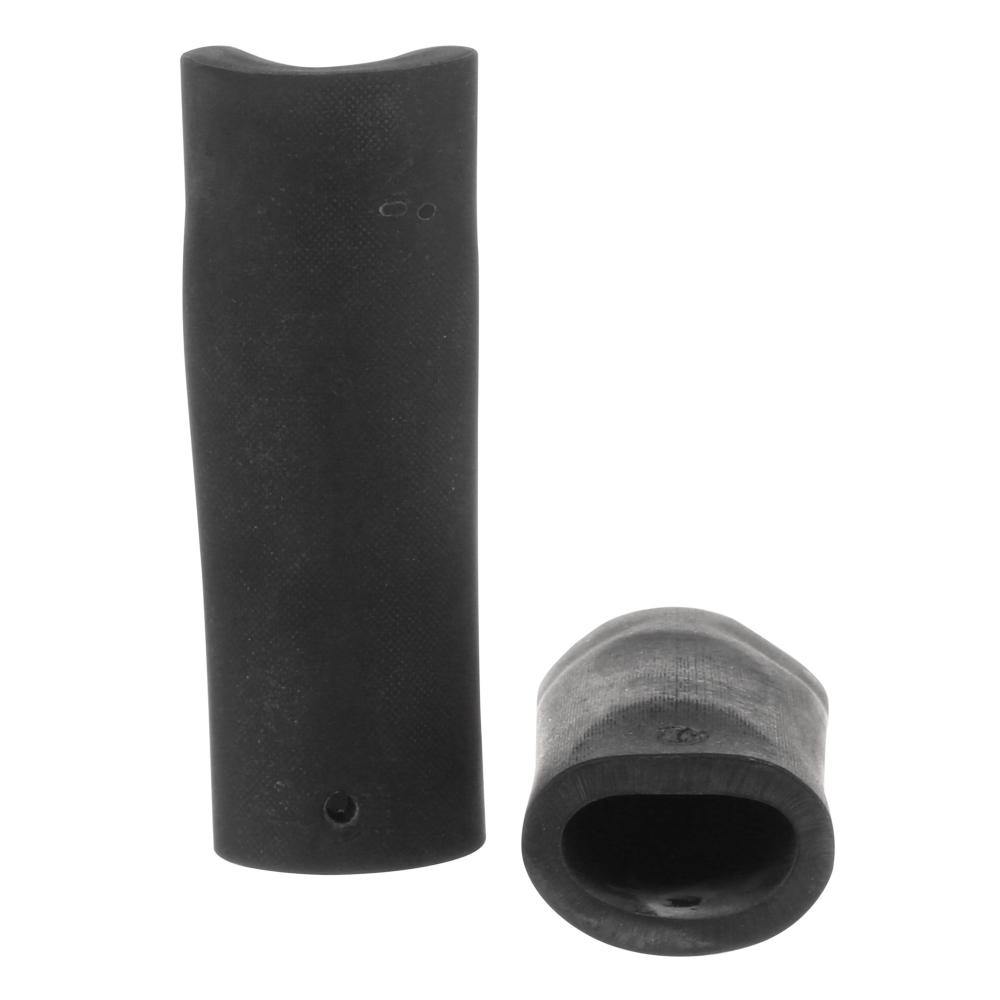

The 3M™ Motor Lead Pigtail Splice Kit makes three splices. Lugs are not included in kits. Feeder of 2-1/0 AWG (35-50 sq mm), motor lead 4-1/0 AWG (25-50 sq mm).3M Motor Lead Pigtail Splice Kits are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of pigtail (stub) connections at 1000 volts and less. The splices main component, the slip-on lug cover, is made from EPDM rubber. Mastic strips are used for the moisture seal. These kits are designed to be used with copper compression, one-hole lugs. After being crimped onto the cables, the lugs are bolted together in a pigtail configuration, then insulated and sealed with the 3M Motor Lead Splicing Kit. 3M Scotchlok Copper Compression Lugs 30000 Series, or other UL listed copper lugs, can be used (not included). Each kit includes: 3 pigtail lug covers, 3 mastic sealing strips, 3 locking pins, 3 tubes of silicone grease and an instruction sheet.
