Mil Spec:
AMS-DTL-23053/1, Class 1 and 2
Recovered Inner Diameter:
RoHS EU Comments:
Contact 3M for information
Tubing Type:
Special Purpose, Modified Neoprene
- Easily markable
- Excellent resistance to heat and hydrocarbon oils
- High abrasion and cut-through resistance

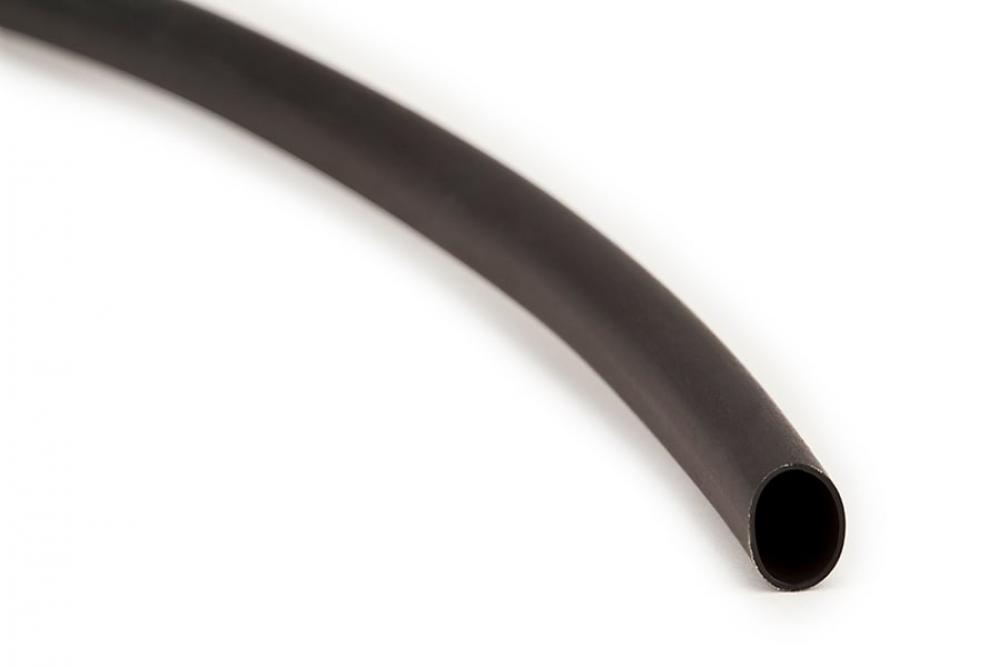

3M™ Modified Polychloroprene Tubing NST provides high abrasion and cut-through resistance, making it ideal for highly flexible covering applications. This tubing has a 2:1 shrink ratio and provides insulation for 600V-rated applications. The flexible modified chlorinated polyolefin construction offers superior resistance to heat and hydrocarbon oils.The wide operating temperature range and superior mechanical properties of the tubing makes it an ideal choice for jacketing cable harnesses. It's also well-suited for military aircraft or vehicle applications and covering hydraulic couplings, as well as the fabrication and repair of flexible harnesses and wire bundles. Using hot-stamp or print-wheel methods, this tubing is easily markable. It withstands temperatures of -94 to 250 degrees F (-70 to 121 degrees C). It is UL Listed, SAE-AMS-DTL-23053/1 Class 1,2, AMS-R46846 and AMS-3623 Certified.
