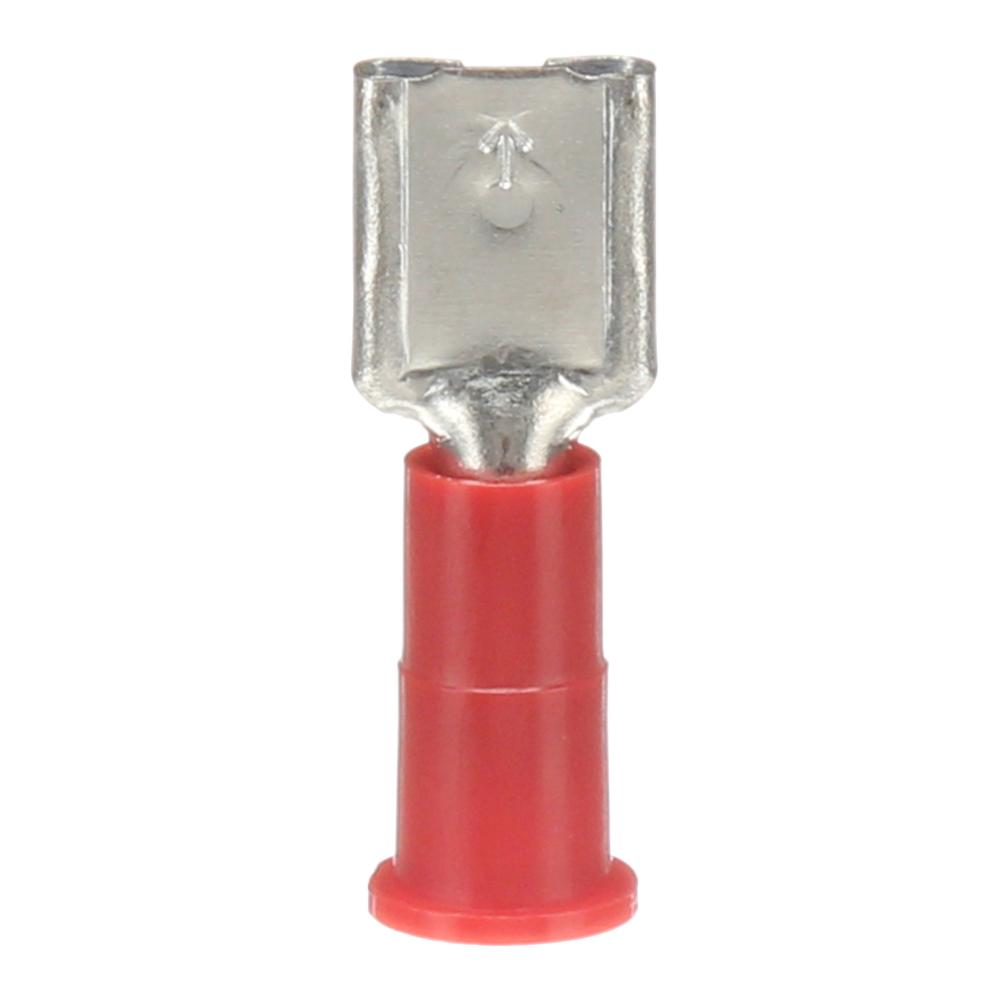

3M™ Highland™ Vinyl Insulated Female Disconnect Terminal, FDV18-250Q, 22-18 AWGItem is usually in stock, but we'll be in touch if there's a problem
by 3M
3M™ Highland™ Vinyl Insulated Female Disconnect Terminal, FDV18-250Q, 22-18 AWGItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
3M™ Highland™ Vinyl Insulated Female Disconnect Terminal, FDV18-250Q, 22-18 AWGItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Price:
Call for Price
Part Number: 4084AU0
UPC:
Vendor Item Number: 7000133664
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Connectors
Industrial Subtype:
Wire Disconnects
Barrel Inside Diameter:
0.08 Inch
Barrel Style:
Butted
Conductor Size:
22 - 18 AWG
CSA File Number:
LR22190
ECCN:
EAR99
Fastener Orientation:
Female
Insulation Material:
Vinyl
Material:
Plastic
Mates with Female Width:
0.25 Inch
Maximum Insulation Outside Diameter:
0.145 in
Maximum Recommended Voltage Rating:
600.0 V
Maximum Voltage Rating:
600 to 1000 V
Maximum Wire Gauge:
18 AWG
Minimum Wire Gauge:
22 AWG
Product Key:
HIGH HIGHLAND BAGGED TERMINALS FKD
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Terminal Style:
Standard
Terminal Type:
Disconnect
UL File Number:
E70512
UPC Code:
00051128600085
Manufactured By:
3M
+
Additional Information
- 35 x 0
- 81 mm)
- Accommodates wire sizes 22 to 18 AWG
- Butted barrel style
- CSA Certified and RoHS 2011/65/EU Compliant
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- fixtures or luminaires
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Mates with male tab 0.250 x 0.032 inch (6
- Rated 600V for building wire and 1000V for signs
- UL Listed
- Vinyl insulated
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Product Overview
3M™ Highland™ Vinyl Insulated Female Disconnect Terminal FDV18-250Q accepts a wire range of AWG 22-18 and has a stud size of .250. It is attached to male disconnect with the tongue slipping over male tab. The use of dents and rolled edges on the female part provides excellent holding force while allowing easy and quick disconnect. 3M™ Highland™ Vinyl Insulated Female Disconnect Terminals are UL Listed and CSA Certified.3M Highland Terminals, Disconnects and Connectors are for use in the assembly and maintenance of electrical systems. The terminals offer effective and reliable performance in a variety of general applications. Available in low quantity and reclosable bags, 3M Highland Terminals are the optimal choice for smaller jobs.
