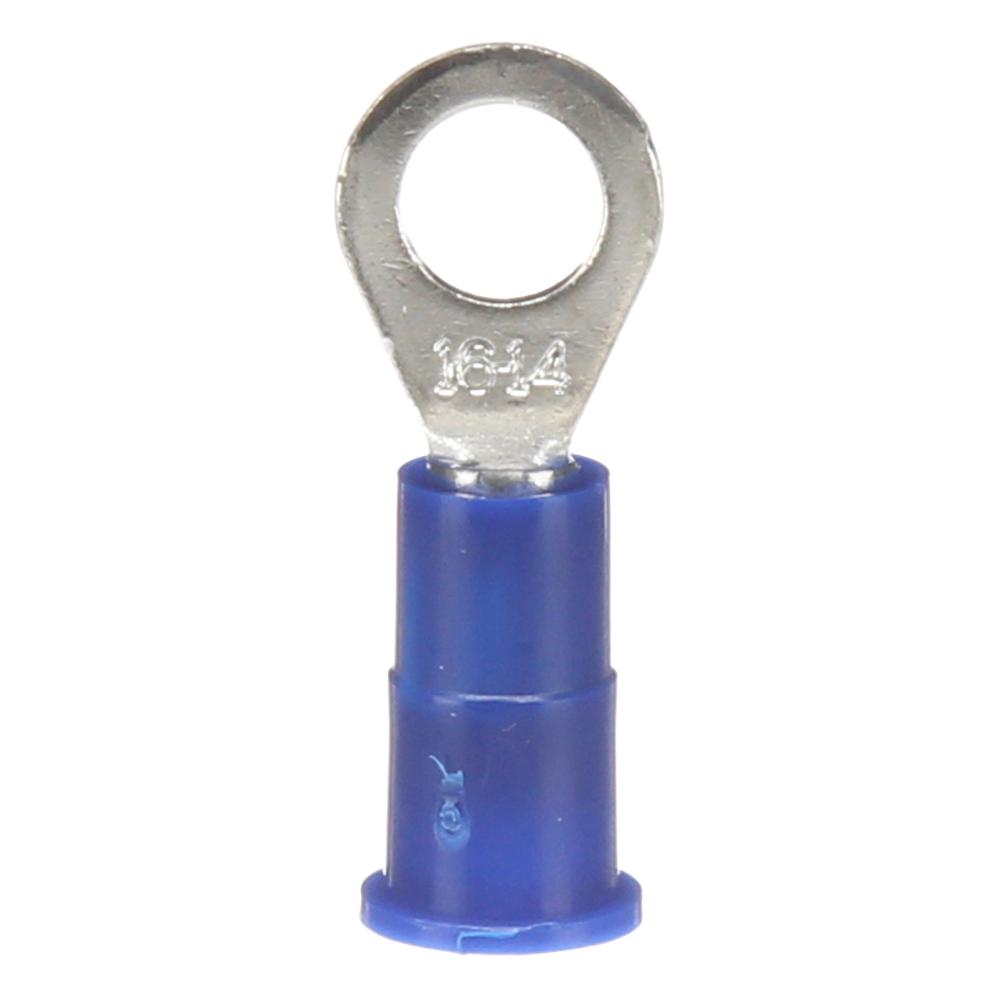

3M™ Highland™ Ring Terminal, RV14-10Q, vinyl insulated, stud size #10, AWG 16-14Item is usually in stock, but we'll be in touch if there's a problem
by 3M
3M™ Highland™ Ring Terminal, RV14-10Q, vinyl insulated, stud size #10, AWG 16-14Item is usually in stock, but we'll be in touch if there's a problem
by 3M
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
3M™ Highland™ Ring Terminal, RV14-10Q, vinyl insulated, stud size #10, AWG 16-14Item is usually in stock, but we'll be in touch if there's a problem
by 3M
Price:
Call for Price
Part Number: 407Y9F0
UPC:
Vendor Item Number: 7000133676
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Connectors
Industrial Subtype:
Ring Terminals
Barrel Inside Diameter:
0.09 Inch
Barrel Style:
Butted
Conductor Size:
16 - 14 AWG
Connection Type:
Crimp
CSA File Number:
LR22190
Dimension E:
0.74 Inch
ECCN:
EAR99
Insulation Material:
Vinyl
Material:
Plastic
Maximum Insulation Outside Diameter:
0.145 in
Maximum Recommended Voltage Rating:
600.0 V
Maximum Wire Gauge:
14 AWG
Minimum Wire Gauge:
16 AWG
Product Key:
HIGH HIGHLAND BAGGED TERMINALS FKD
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Stud Size:
#10
Stud Sizes:
#10
Terminal Style:
Standard
Terminal Type:
Ring
UL File Number:
E23438
UPC Code:
00051128600382
Manufactured By:
3M
+
Additional Information
- Accommodates wire sizes 16 to 14 AWG
- Butted barrel style
- Cannot be removed unless mounting screw is removed
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Stud size #10
- Vinyl insulated
- Withstands a temperature range of -40 to 221 °F (-40 to 105 °C)
Product Overview
3M™ Highland™ Ring Terminal RV14-10Q accepts a wire range of AWG 16-14 and has a stud size of 10. This ring is a standard style of tongue and is considered the safest and most reliable 3M™ Highland™ Terminal. The 3M™ Highland™ Ring Terminals are UL Listed and CSA Certified.3M Highland Terminals, Disconnects and Connectors are for use in the assembly and maintenance of electrical systems. The terminals offer effective and reliable performance in a variety of general applications. Available in low quantity and reclosable bags, 3M Highland Terminals are the optimal choice for smaller jobs.
