3M™ Heat Shrink Thin-Wall Flexible Polyolefin Adhesive-Lined TubingItem is usually in stock, but we'll be in touch if there's a problem
by 3M

3M™ Heat Shrink Thin-Wall Flexible Polyolefin Adhesive-Lined Tubing<span class=' ItemWarning' style='display:block;'>Item is usually in stock, but we&#39;ll be in touch if there&#39;s a problem<br /></span>

3M™ Heat Shrink Thin-Wall Flexible Polyolefin Adhesive-Lined TubingItem is usually in stock, but we'll be in touch if there's a problem
by 3M

Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item

3M™ Heat Shrink Thin-Wall Flexible Polyolefin Adhesive-Lined TubingItem is usually in stock, but we'll be in touch if there's a problem
by 3M

    Price:
    Call for Price
    Part Number: 408EGTL
    UPC:
    Vendor Item Number: 7000133685
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Management
Industrial Subtype:
Shrink Tubing
Color Family:
Black
ECCN:
EAR99
Elongation:
450.0 %
Expanded Inner Diameter:
0.75 in
Family:
3M™ Heat Shrink EPS-300
Flame Retardant:
Yes
Flammability Rating:
UL 224 All Tubing Flame Test [jacket]
Material:
Polyolefin
Mil Spec:
AMS-DTL-23053/5, Class 3
Product Color:
Black
Product Key:
EPS3 EPS 300 FPC
Recovered Inner Diameter:
0.25 in
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Shrink Ratio:
3:1
Tubing Type:
Dual Wall (Adhesive Lined)
UL File Number:
E-157227
UPC Code:
00051128600689
Manufactured By:
3M
+
Additional Information
  • 3:1 shrink ratio
  • Operating temperature range is from 55°C (-67°F) to 110°C (230°F)
  • The recovered wall thickness of the tubing is proportional to the degree of recovery
  • the tubing will shrink 33% of its as-supplied diameter
  • When freely recovered
  • with a shrinking temperature minimum of 121°C (250°F)
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
Product Overview

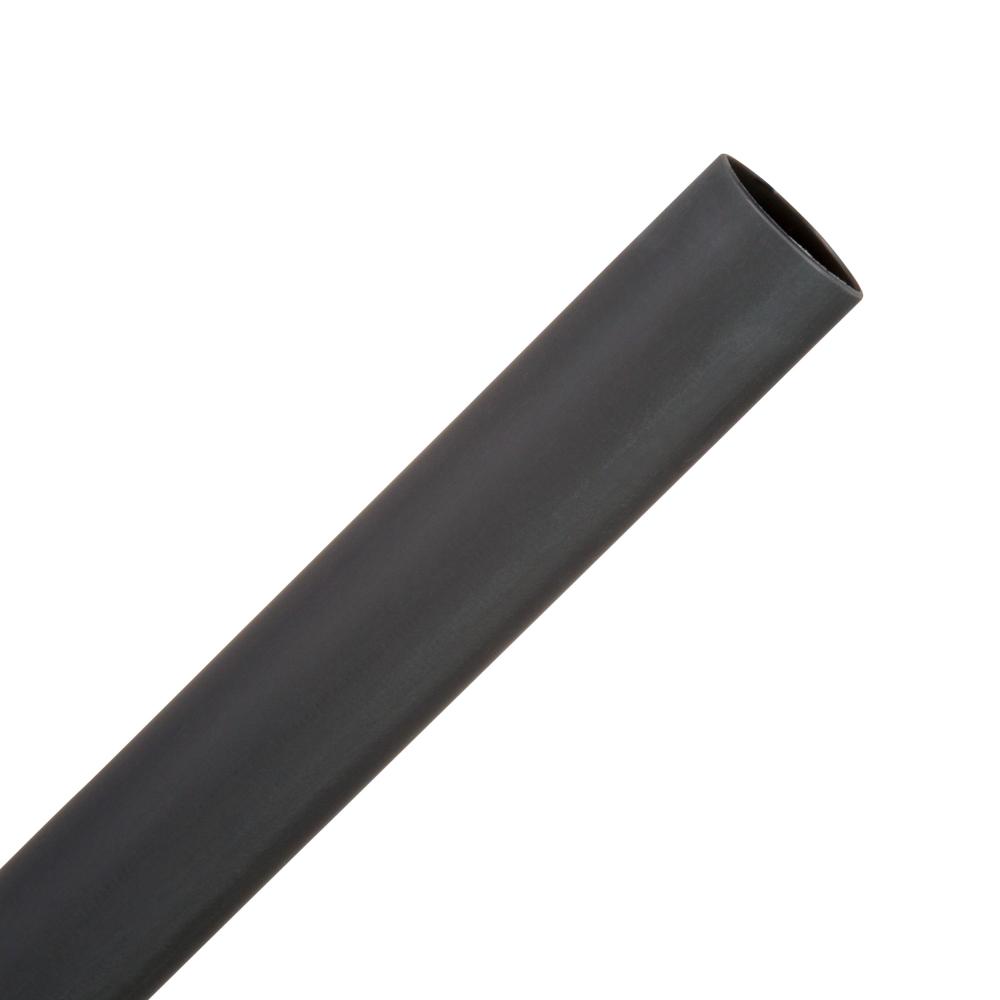

3M™ Heat Shrink Thin-Wall Flexible Polyolefin Adhesive-Lined Tubing EPS-300 is a 3:1 thin-wall tubing that offers the advantages of integral, adhesive-lined construction.3M Heat Shrink Thin-Wall Flexible Polyolefin Adhesive-Lined Tubing EPS-300 is made from flame-retardant, flexible polyolefin that is lined with an internal layer of special thermoplastic adhesive. The heat-shrinkable outer wall is selectively radiation cross-linked, while the adhesive maintains high flow and excellent adhesion characteristics. It helps provide environmental protection for electronic components, twister pigtail and inline wire splices, crimp splices, wire bundles and wire harness breakouts in automotive, truck fleet, marine and industrial applications. When heated in excess of 121C (250F), the tubing rapidly shrinks to a skin-tight fit, forcing the melted adhesive lining to flow and cover the substrate. The adhesive forms a flexible bond with a wide variety of rubbers, plastics and metals. Upon cooling, the adhesive solidifies, forming a permanent, non-drying, flexible and water-resistant barrier. Adhesive reflow will occur at temperatures above 80C (176F). This product is UL Recognized (all colours except clear, file E-157227) at 600 volts to a maximum of 125C and is CSA Certified (CSA file LR38227).
