Cable Insulation Outside Diameter Range:
Maximum Cable Outside Diameter:
Maximum Installed Length:
RoHS EU Comments:
Contact 3M for information
- Also includes Rejacketing Sleeve Assembly and Breakout boot
- Conductor size ranges:
- Excellent tracking resistance
- heat or special tools required
- Hi-K stress control
- Includes everything required to make 3 terminations (except lugs)
- No torches
- Quick installation with versatile one-piece design
- UV resistance and water-shedding properties

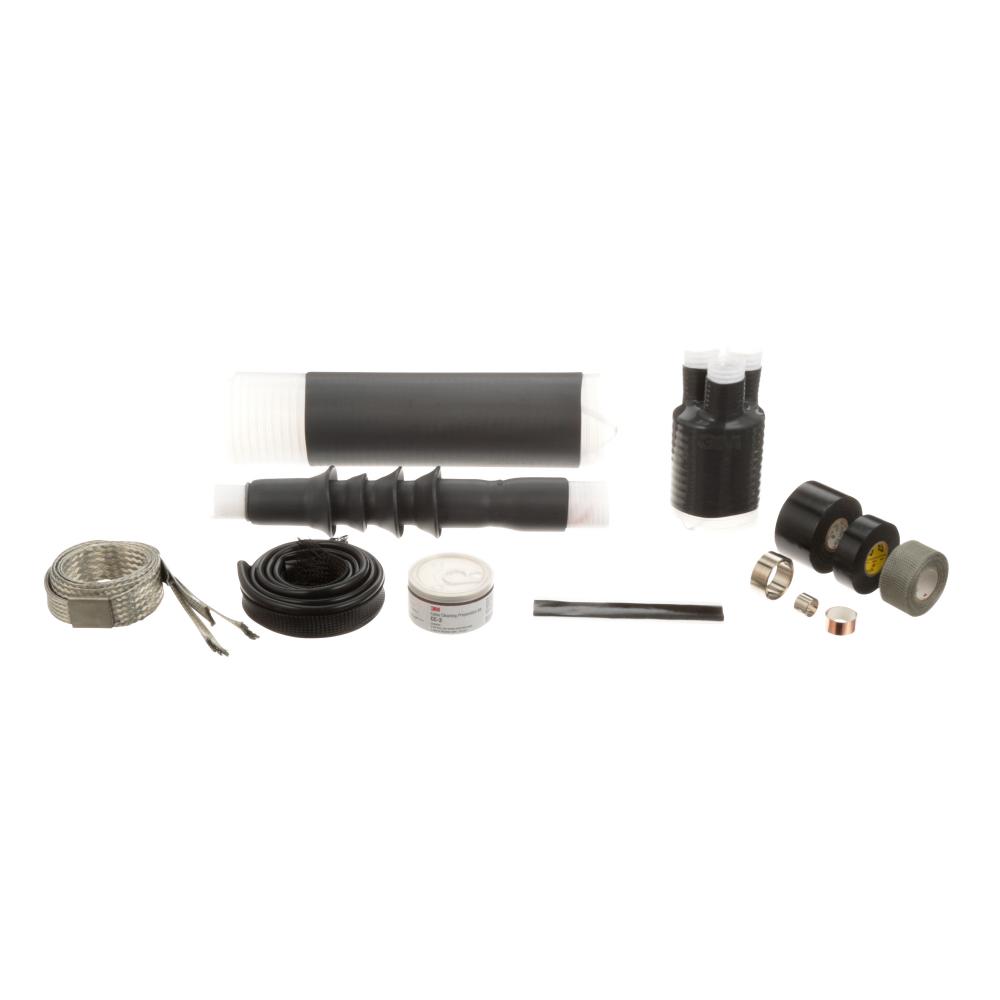

3M™ Cold Shrink QT-III, Three Conductor Termination Kit 7620-S-3G Series are skirted and designed for outdoor installations of medium voltage 3/C shielded power cables with internal ground wires. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination.Each kit contains: One 3M Cold Shrink Silicone Rubber Breakout Boot Assembly, one 3M Cold Shrink Silicone Rubber Jacket Seal Assemblies, three 3M Silicone Rubber Phase Re-Jacketing Sleeve Assemblies, three 3M Cold Shrink Silicone Rubber Termination Assemblies, one 3M Tinned Copper Ground Braid Assembly, three small 3M Constant Force Springs, one large 3M Constant Force Spring, three 1/2 x 10 (12.7 mm x 254 mm) strips of 3M EMI Copper Foil Shielding Tape 1181, eight strips of Scotch Mastic 2230, one 3/4" (1905 mm) roll of Scotch Super 33+ Vinyl Electrical Tape, one 1-1/2" (25.4-12.7mm) roll of Scotch Super Vinyl Electrical Tape 88, one roll of Scotch Copper Electrical Shielding Tape 24, one 3M Cable Cleaning Preparation Kit CC-2, and one Instruction Sheet.
