Cable Insulation Outside Diameter Range:
Maximum Installed Length:
RoHS EU Comments:
Contact 3M for information
- Also includes Rejacketing Sleeve Assembly
- Conductor size ranges:
- Excellent tracking resistance
- heat or special tools required
- Hi-K stress control
- Includes everything required to make 3 terminations (except lugs)
- No torches
- Quick installation with versatile one-piece design
- UV resistance and water-shedding properties

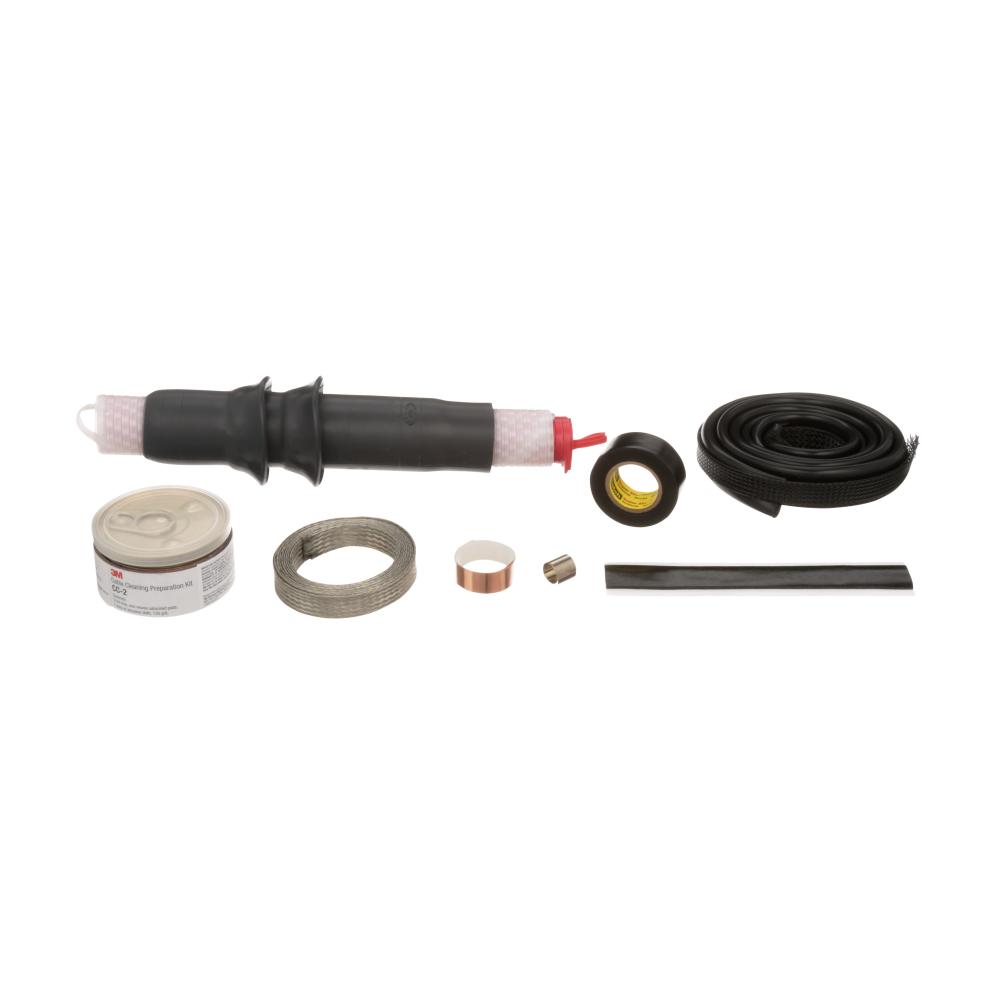

3M™ Cold Shrink QT-III, Three Conductor Termination Kit 7600-S-3RJS Series are skirted and designed to accommodate medium voltage 3/C shielded power cable kits for cabinet-mount installations and can be used on cables with or without ground wires. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination.Each kit contains: Three 3M Cold Shrink Silicone Rubber Termination Assemblies, three 3M Silicone Rubber Phase Rejacketing Sleeve Assemblies, one roll of 3M Tinned Copper Ground Braid, three 3M Constant-Force Springs, three 1/2" x 10" (12.7 mm x 254 mm) strips of 3M EMI Copper Foil Shielding Tape 1181, one roll of Scotch Super 33+ Vinyl Electrical Tape, six strips of Scotch Mastic 2230, one 3M Cable Cleaning Preparation Kit CC-2, and one Instruction Sheet.
