3M™ Cold Shrink QT-III Three Conductor Indoor Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M
3M™ Cold Shrink QT-III Three Conductor Indoor Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
3M™ Cold Shrink QT-III Three Conductor Indoor Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Price:
Call for Price
Part Number: 4087FDM
UPC:
Vendor Item Number: 7000133214
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire and Cable
Application:
Cable Connection
BIL:
110 kV
Breakout Boot:
No
Cable Insulation Outside Diameter Range:
0.5 in - 0.7 in
Cable Shielding:
Wire Shield
Cable Type:
MV-90
Conductor Material:
Aluminum
Connector Included:
None
ECCN:
EAR99
Family:
QT-III
Insulation Level:
133%
Insulation Rejacketing:
Yes
Maximum Installed Length:
12.00 in
Maximum Wire Gauge:
500mm²
Minimum Wire Gauge:
240mm²
Number of Conductors:
3.0
Product Type:
Splice
RoHS EU Comments:
Contact 3M for information
Splice Type:
Inline
Typical Splice Length:
35 in
Voltage:
35 kV
Voltage Application:
Medium Voltage
Manufactured By:
3M
+
Additional Information
- Also includes Rejacketing Sleeve Assembly
- Conductor size ranges:
- Excellent tracking resistance
- heat or special tools required
- Hi-K stress control
- Includes everything required to make 3 terminations (except lugs)
- No torches
- Quick installation with versatile one-piece design
Product Overview

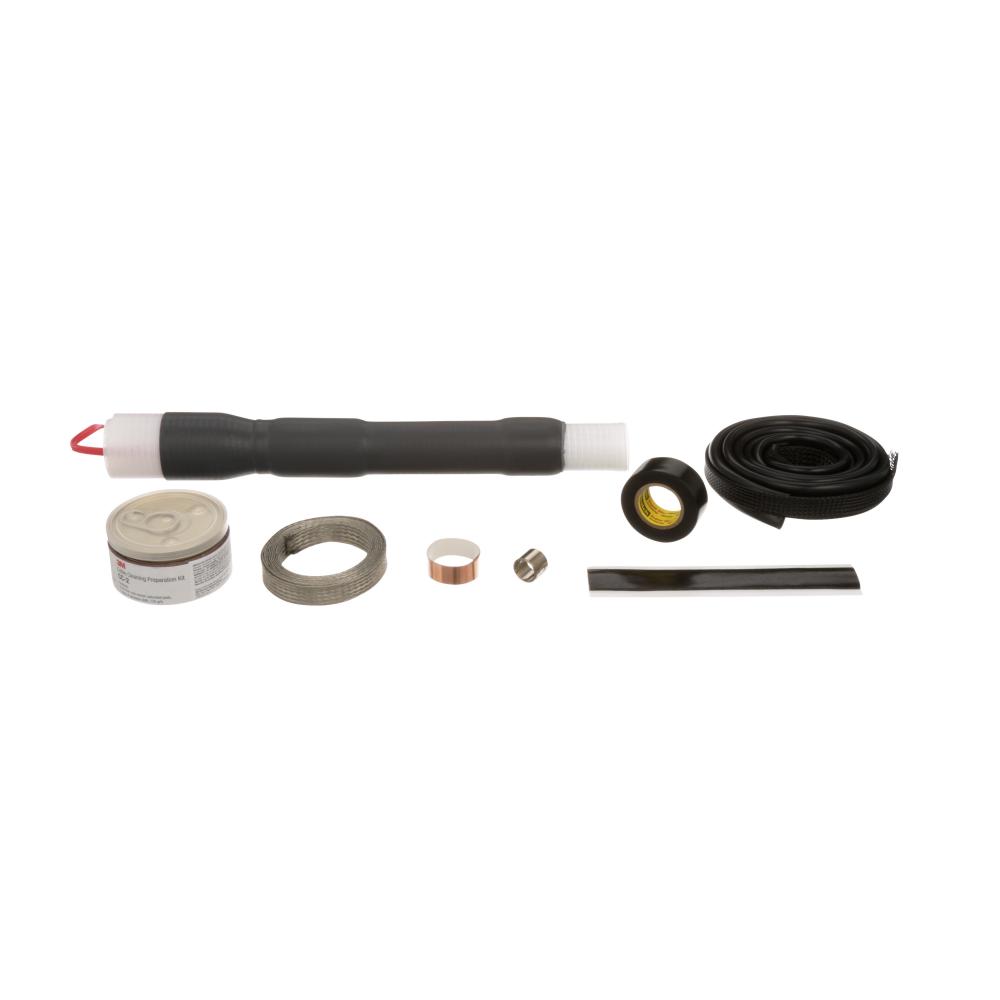

3M™ Cold Shrink QT-III, Three Conductor Termination Kit 7600-T-3RJS Series are tubular and designed to accommodate medium voltage 3/C shielded power cable kits for cabinet-mount installations and can be used on cables with or without ground wires. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination.Each kit contains: Three 3M Silicone Rubber Phase Re-Jacketing Sleeve Assembly, three 3M Cold Shrink Silicone Rubber Termination Assemblies, one roll of 3M Tinned Copper Ground Braid, three 3M Constant-Force Springs, one roll of Scotch Super 33+ Vinyl Electrical Tape, one 3M Cable Cleaning Preparation Kit CC-2, and one Instruction Sheet.
