3M™ Cold Shrink QT-III Three Conductor Indoor Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M

3M™ Cold Shrink QT-III Three Conductor Indoor Termination Kit<span class=' ItemWarning' style='display:block;'>Item is usually in stock, but we&#39;ll be in touch if there&#39;s a problem<br /></span>

3M™ Cold Shrink QT-III Three Conductor Indoor Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M

Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item

3M™ Cold Shrink QT-III Three Conductor Indoor Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M

    Price:
    Call for Price
    Part Number: 408EPLN
    UPC:
    Vendor Item Number: 7000031663
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire and Cable
BIL:
110 kV
Breakout Boot:
Yes
Cable Insulation Outside Diameter Range:
1.18 in - 1.52 in
Cable Shielding:
Tape Shield
ECCN:
EAR99
Family:
QT-III
Insulation Level:
100%
Insulation Rejacketing:
Yes
Maximum Cable Outside Diameter:
4.50 in
Maximum Installed Length:
12.00 in
Number of Conductors:
3.0
RoHS EU Comments:
Contact 3M for information
Voltage:
8 kV
Voltage Application:
Medium Voltage
Manufactured By:
3M
+
Additional Information
  • Also includes Rejacketing Sleeve Assembly and Breakout boot
  • Conductor size ranges:
  • Excellent tracking resistance
  • heat or special tools required
  • Hi-K stress control
  • Includes everything required to make 3 terminations (except lugs)
  • No torches
  • Quick installation with versatile one-piece design
Product Overview

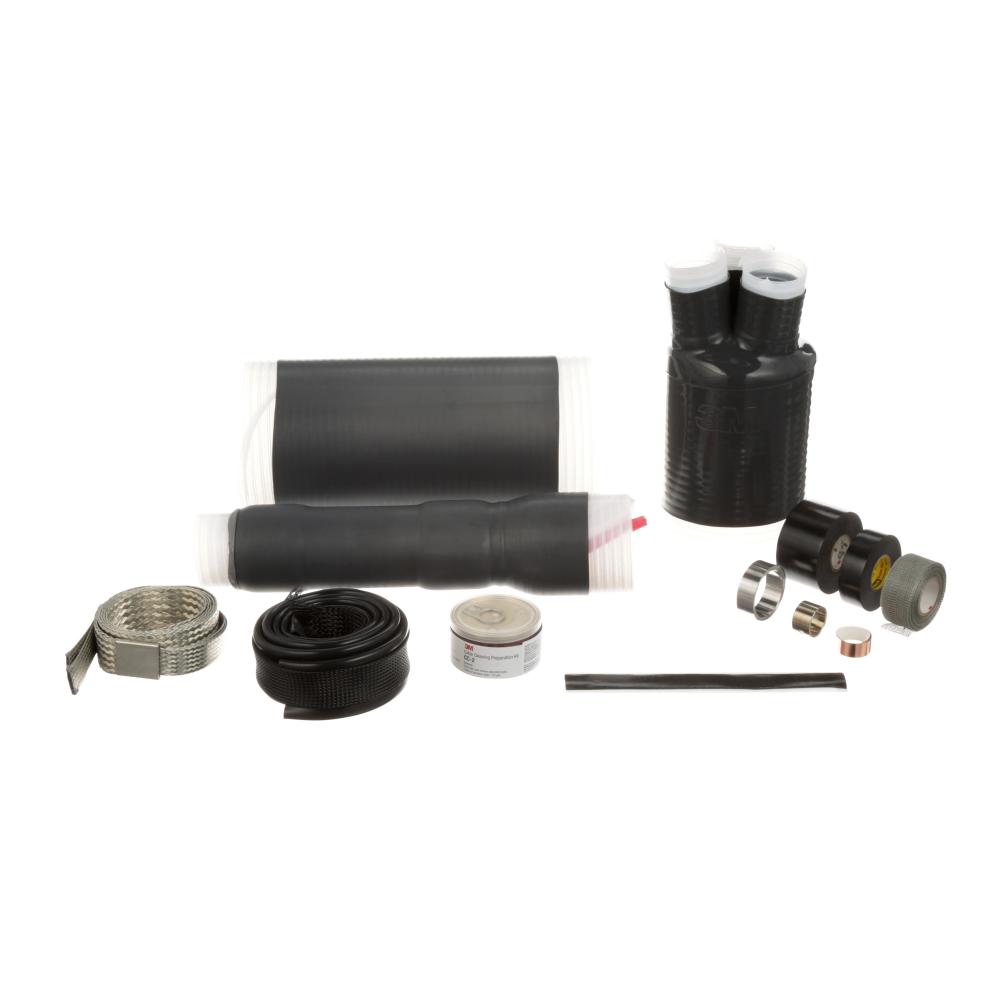

3M™ Cold Shrink QT-III, Three Conductor Termination Kit 7600-T-3G is tubular and designed for cables with internal ground wires for indoor installations. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination.Each kit contains: One 3M Cold Shrink Silicone Rubber Breakout Boot Assembly, one 3M Cold Shrink Silicone Rubber Jacket Seal Assembly, three 3M Silicone Rubber Phase Rejacketing Sleeve Assemblies, three 3M Cold Shrink Silicone Rubber Termination Assemblies, one 3M Tinned Copper Ground Braid Assembly, three small 3M Constant-Force Springs, one large 3M Constant-Force Spring, eight strips of Scotch Mastic 2230, one 3/4" (19.05 mm) roll of Scotch Super 33+ Vinyl Electrical Tape, one 1-1/2" (25.4-12.7 mm) roll Scotch Vinyl Electrical Tape Super 88, one roll of Scotch Electrical Shielding Tape 24, one 3M Cable Cleaning Preparation Kit CC-2, three 1/2" x 10" (12.7 mm x 254 mm) strips of 3M EMI Copper Foil Shielding Tape 1181, and one Instruction Sheet.
