3M™ Cold Shrink QT-III Three Conductor Indoor Termination Kit 7693-T-150-3G, 3/KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M

3M™ Cold Shrink QT-III Three Conductor Indoor Termination Kit 7693-T-150-3G, 3/Kit<span class=' ItemWarning' style='display:block;'>Item is usually in stock, but we&#39;ll be in touch if there&#39;s a problem<br /></span>

3M™ Cold Shrink QT-III Three Conductor Indoor Termination Kit 7693-T-150-3G, 3/KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M

Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item

3M™ Cold Shrink QT-III Three Conductor Indoor Termination Kit 7693-T-150-3G, 3/KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M

    Price:
    Call for Price
    Part Number: 408EGRC
    UPC:
    Vendor Item Number: 7000132895
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire and Cable
Application:
Cable Termination
BIL:
150 kV
Breakout Boot:
Yes
Cable Insulation Outside Diameter Range:
0.70 in - 0.92 in
Cable Shielding:
Wire-over-tape Shield
ECCN:
EAR99
Family:
QT-III
Insulation Level:
100%
Insulation Rejacketing:
Yes
Material:
Silicone Rubber
Maximum Cable Outside Diameter:
3.30 in
Maximum Installed Length:
16.00 in
Number of Conductors:
3.0
Product Color:
Grey
RoHS EU Comments:
Contact 3M for information
Voltage:
25 kV
Voltage Application:
Medium Voltage
Manufactured By:
3M
+
Additional Information
  • Also includes Rejacketing Sleeve Assembly and Breakout boot
  • Conductor size ranges:
  • Excellent tracking resistance
  • heat or special tools required
  • Hi-K stress control
  • Includes everything required to make 3 terminations (except lugs)
  • No torches
  • Quick installation with versatile one-piece design
Product Overview

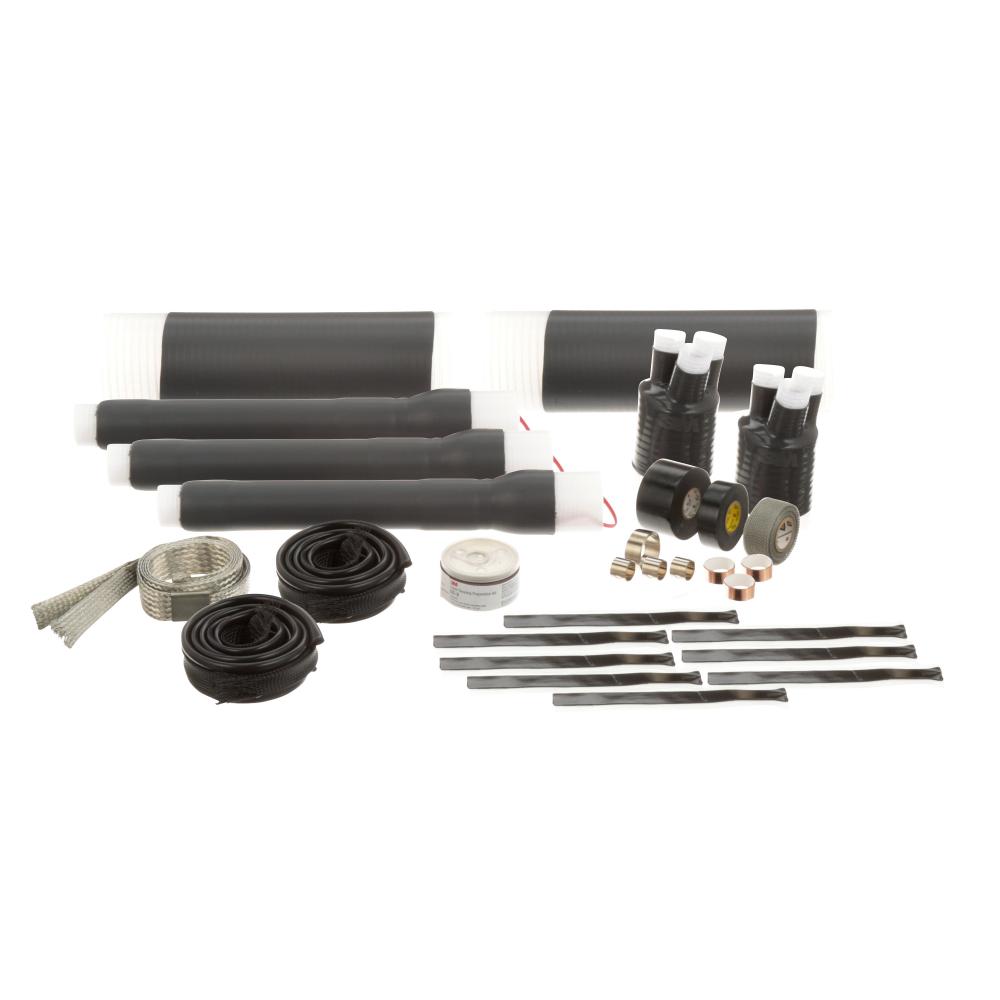

The 3M™ Cold Shrink QT-III Three Conductor Indoor Termination Kit 7600-T-3G is tubular and designed for cables with internal ground wires for indoor installations. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination.The 3M Cold Shrink QT-III Three Conductor Indoor Termination Kit contains: One 3M Cold Shrink Silicone Rubber Breakout Boot Assembly, one 3M Cold Shrink Silicone Rubber Jacket Seal Assembly, three 3M Silicone Rubber Phase Re-Jacketing Sleeve Assemblies, three 3M Cold Shrink Silicone Rubber Termination Assemblies, one 3M Tinned Copper Ground Braid Assembly, three small 3M Constant Force Springs, one large 3M Constant Force Spring, three 1/2 x 10 (12.7 mm x 254 mm) strips of 3M EMI Copper Foil Shielding Tape 1181, eight strips Scotch Mastic 2230, one 3/4" (19.05 mm) roll of Scotch Super 33+ Vinyl Electrical Tape, one 1-1/2" (25.4-12.7 mm) roll of Scotch Super Vinyl Electrical Tape 88, one roll of Scotch Copper Electrical Shielding Tape 24, one 3M Cable Cleaning Preparation Kit CC-2, and one Instruction Sheet.
