3M™ Cold Shrink QT-III Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M
3M™ Cold Shrink QT-III Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
3M™ Cold Shrink QT-III Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Price:
Call for Price
Part Number: 4087AG6
UPC:
Vendor Item Number: 7000149347
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire and Cable
BIL:
150 kV
Breakout Boot:
No
Cable Insulation Outside Diameter Range:
1.53 in - 2.32 in
Cable Shielding:
Wire-over-tape Shield
Compatible Lug:
QL2-A-500-1000
ECCN:
EAR99
Family:
QT-III
Insulation Level:
100%
Insulation Rejacketing:
No
Maximum Installed Length:
16.00 in
Number of Conductors:
1.0
Number of Skirts:
0.0
RoHS EU Comments:
Contact 3M for information
Voltage:
8 kV
Voltage Application:
Medium Voltage
Manufactured By:
3M
+
Additional Information
- Also includes high ampacity ground connection
- Excellent tracking resistance
- heat or special tools required
- Hi-K stress control
- Includes everything required to make one single phase termination (except lug)
- No torches
- Quick installation with versatile one-piece design
Product Overview

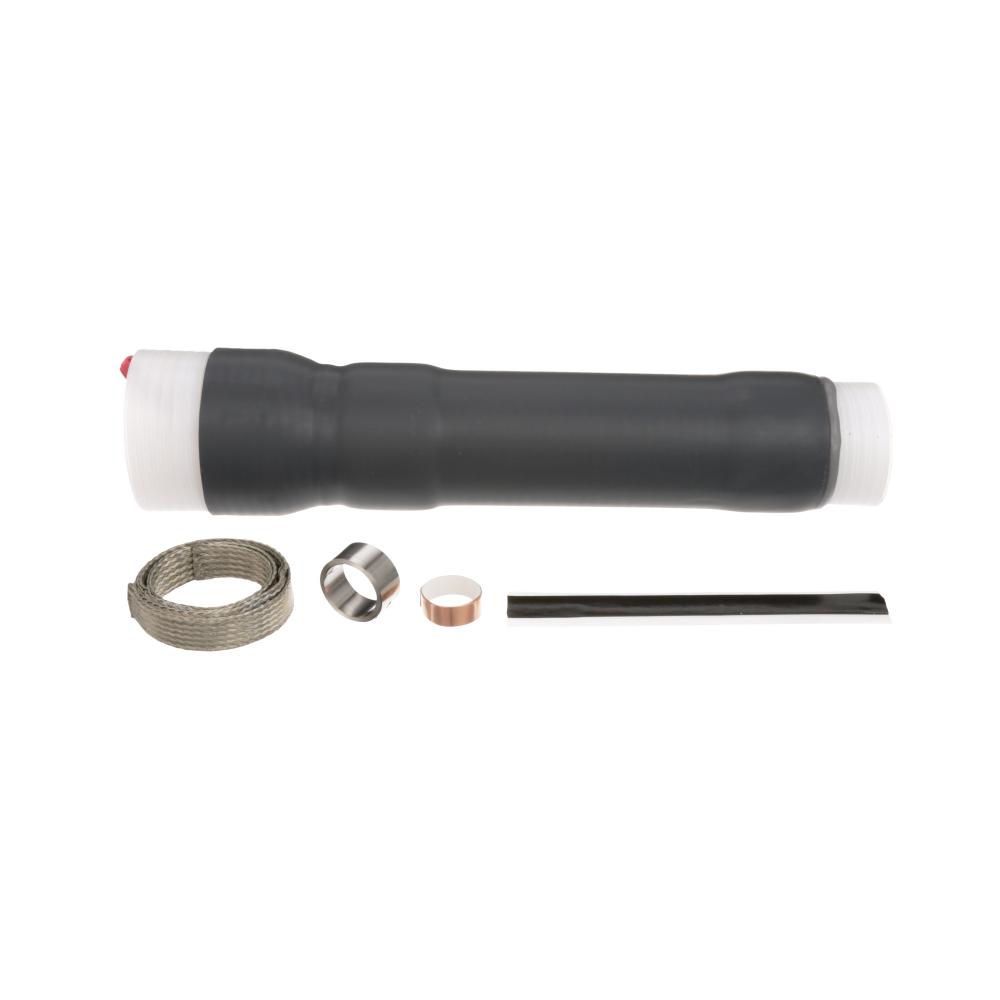

3M™ Cold Shrink QT-III 7640-T-HSG & 7650-T-HSG Series Termination Kit includes a non-skirted, 1-piece termination. It ensures a pliable, tight seal for tape shield, wire-over-tape shield and longitudinally corrugated shield power cables. The conjunction of high dielectric-constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.Each kit contains: One 3M Hi-K Tracking Resistant Silicone Rubber Termination, one 3M Pre-Formed High-Ampacity Ground Braid, one 3M Constant Force Spring, two Scotch Mastic Sealing Strips 2230, one 3M EMI Copper Foil Shielding Tape 1181, and one Instruction Sheet.
