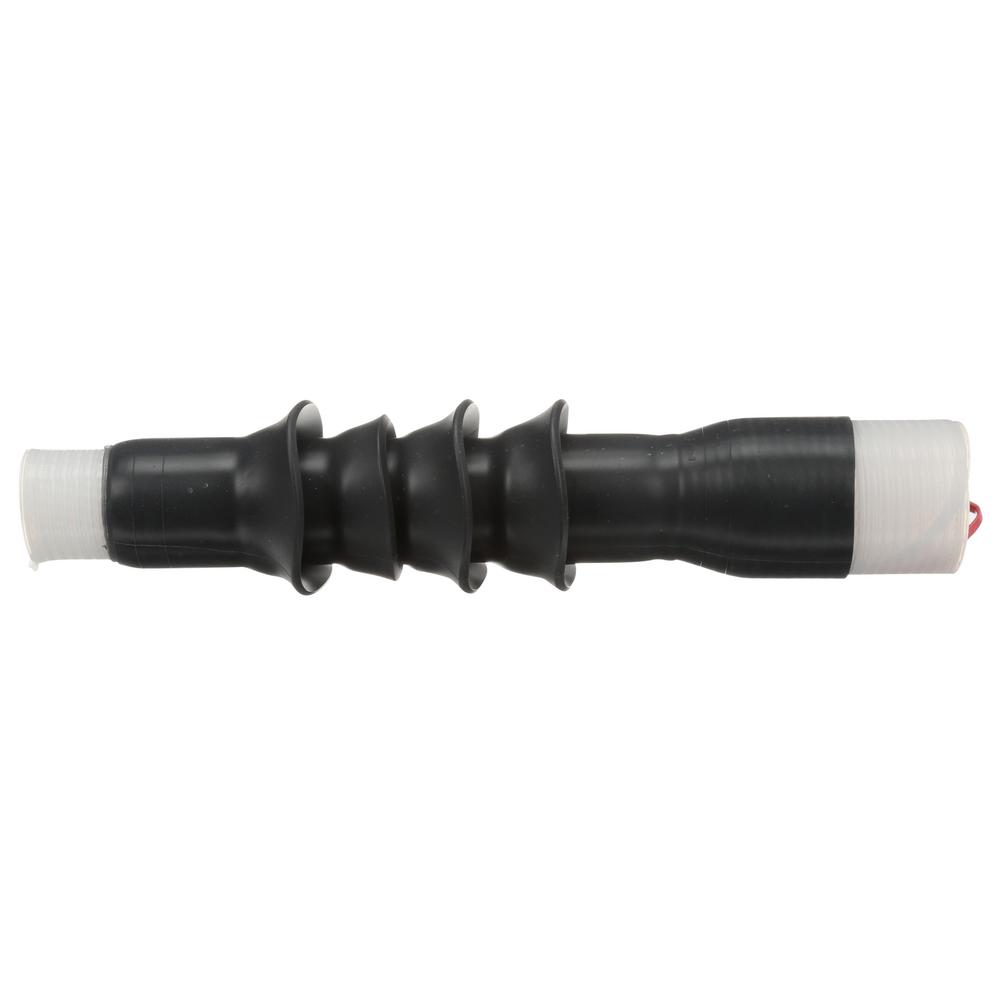

3M™ Cold Shrink QT-III Silicone Rubber TerminationItem is usually in stock, but we'll be in touch if there's a problem
by 3M

3M™ Cold Shrink QT-III Silicone Rubber Termination<span class=' ItemWarning' style='display:block;'>Item is usually in stock, but we&#39;ll be in touch if there&#39;s a problem<br /></span>

3M™ Cold Shrink QT-III Silicone Rubber TerminationItem is usually in stock, but we'll be in touch if there's a problem
by 3M

Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item

3M™ Cold Shrink QT-III Silicone Rubber TerminationItem is usually in stock, but we'll be in touch if there's a problem
by 3M

    Price:
    Call for Price
    Part Number: 407V9QA
    UPC:
    Vendor Item Number: 7000140709
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire and Cable
BIL:
150 kV
Breakout Boot:
No
Cable Insulation Outside Diameter Range:
0.72 in - 1.29 in
Cable Shielding:
Jacketed Concentric Neutral (JCN)
Compatible Lug:
QL2-A-2-250
ECCN:
EAR99
Family:
QT-III
Insulation Level:
133%
Insulation Rejacketing:
No
Maximum Installed Length:
12.25 in
Number of Conductors:
1.0
Number of Skirts:
4.0
RoHS EU Comments:
Contact 3M for information
Termination Type:
Single Termination
Voltage:
8 kV
Voltage Application:
Medium Voltage
Manufactured By:
3M
+
Additional Information
  • Conductor size ranges:
  • Excellent tracking resistance
  • heat or special tools required
  • Hi-K stress control
  • Includes everything required to make one single phase termination (except lug)
  • No torches
  • Quick installation with versatile one-piece design
  • UV resistance and water-shedding properties
Product Overview
3M™ Cold Shrink QT-III Silicone Rubber Terminations are a one-piece, non-skirted silicone rubber termination that comes with factory-applied, pre-positioned Hi-K stress control layers underneath the insulator. Its short installed length is excellent for installations in limited spaces, such as those with motors, starters, switchgear, variable speed drives, transformers and similar connections which often reduce the need to add auxiliary boxes when enclosure space is limited. The 3M™ Cold Shrink QT-III Silicone Rubber Termination, 7653-S-4 has a conductor size range for 5 kV: 300-500 kcmil, 8 kV: 250-500 kcmil, 15 kV: 2/0 AWG-300 kcmil and 25/28 kV: 2-4/0 AWG.Each kit contains: One 3M Hi-K Tracking Resistant Silicone Rubber Termination, two Scotch Mastic Sealing Strips 2230, and one Instruction Sheet.
