Cable Insulation Outside Diameter Range:
Maximum Installed Length:
RoHS EU Comments:
Contact 3M for information
- Conductor size ranges:
- Excellent tracking resistance
- heat or special tools required
- Hi-K stress control
- Includes everything required to make one single phase termination (except lug)
- No torches
- Quick installation with versatile one-piece design
- UV resistance and water-shedding properties

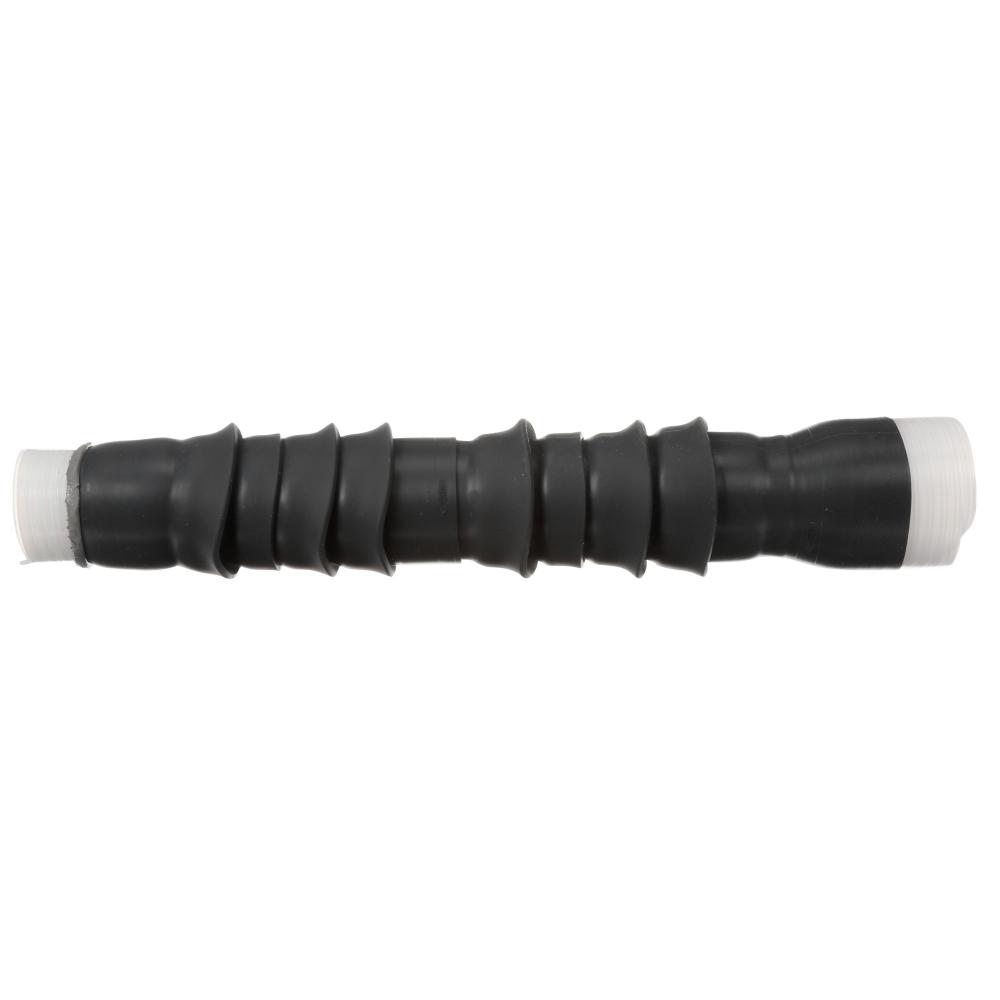

3M™ Cold Shrink QT-III Silicone Rubber Terminations are a one-piece, non-skirted silicone rubber termination that comes with factory-applied, pre-positioned Hi-K stress control layers underneath the insulator. Its short installed length is excellent for installations in limited spaces, such as those with motors, starters, switchgear, variable speed drives, transformers and similar connections which often reduce the need to add auxiliary boxes when enclosure space is limited. The 3M™ Cold Shrink QT-III Silicone Rubber Termination 7665-S-8 has a conductor size range for 5 kV: 700-1500 kcmil, 8 kV: 600-1250 kcmil, 15 kV: 500-1000 kcmil, 25/28 kV: 250-800 kcmil and 35 kV: 3/0 AWG-600 kcmil.Each kit contains: One 3M Hi-K Tracking Resistant Silicone Rubber Termination, two Scotch Mastic Sealing Strips 2230, and one Instruction Sheet.
