3M™ Cold Shrink QT-III Silicone Rubber Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M

3M™ Cold Shrink QT-III Silicone Rubber Termination Kit<span class=' ItemWarning' style='display:block;'>Item is usually in stock, but we&#39;ll be in touch if there&#39;s a problem<br /></span>

3M™ Cold Shrink QT-III Silicone Rubber Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M

Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item

3M™ Cold Shrink QT-III Silicone Rubber Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M

    Price:
    Call for Price
    Part Number: 4081F2Q
    UPC:
    Vendor Item Number: 7000133172
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire and Cable
BIL:
95 kV
Breakout Boot:
No
Cable Insulation Outside Diameter Range:
0.64 in - 1.08 in
Cable Shielding:
Tape Shield
ECCN:
EAR99
Family:
QT-III
Insulation Level:
100%
Insulation Rejacketing:
No
Maximum Installed Length:
8.50 in
Number of Conductors:
1.0
Product Technology:
Cold Shrink
RoHS EU Comments:
Contact 3M for information
Voltage:
8 kV
Voltage Application:
Medium Voltage
Manufactured By:
3M
+
Additional Information
  • Excellent tracking resistance
  • heat or special tools required
  • Hi-K stress control
  • Includes everything required to make 3 terminations (except lugs)
  • No torches
  • Quick installation with versatile one-piece design
Product Overview

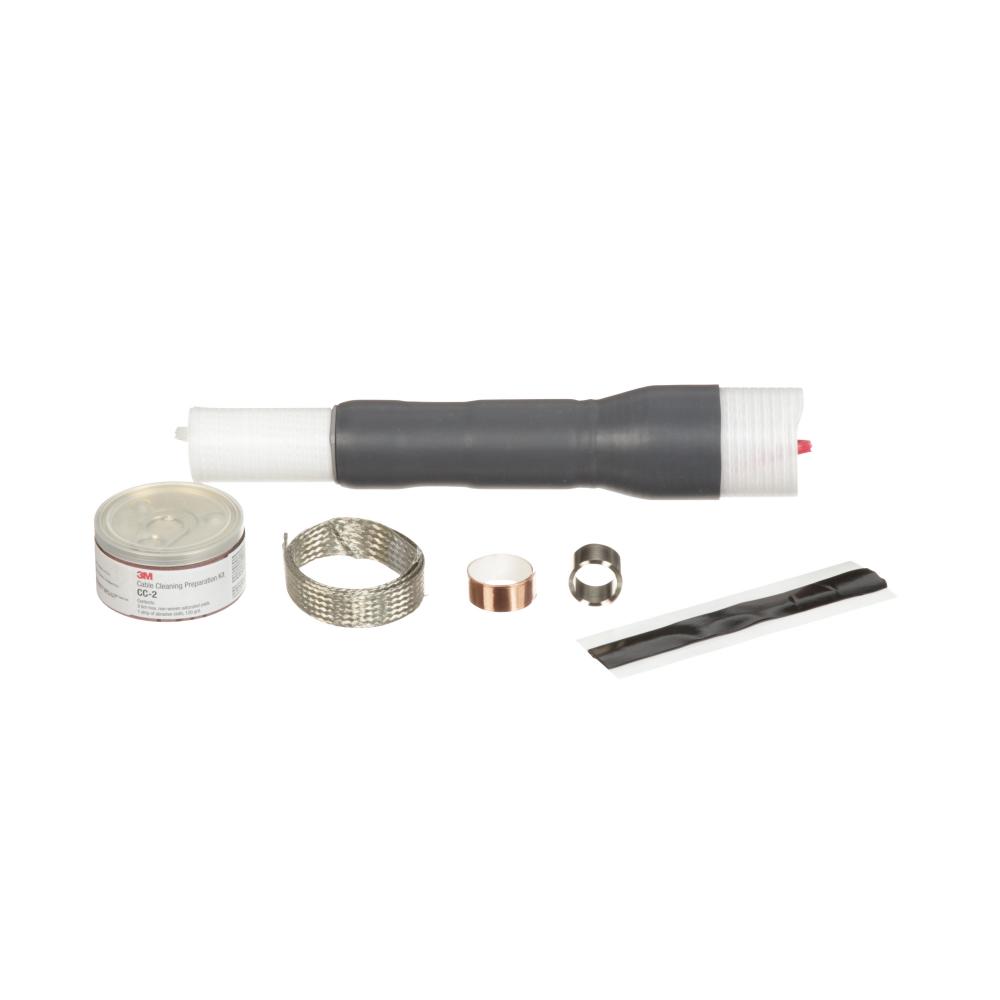

3M™ Cold Shrink QT-III Silicone Rubber Terminations are a one-piece, non-skirted silicone rubber termination that comes with factory-applied, pre-positioned Hi-K stress control layers underneath the insulator. Its short installed length is excellent for installations in limited spaces, such as those with motors, starters, switchgear, variable speed drives, transformers and similar connections which often reduce the need to add auxiliary boxes when enclosure space is limited. The 3M™ Cold Shrink QT-III Silicone Rubber Termination Kit 7622-T-95 has a conductor size range for 5 kV: 4/0 AWG-400 kcmil and 8 kV: 3/0 AWG-300 kcmil.Each kit contains: Three 3M Hi-K Tracking Resistant Silicone Rubber Terminations, three 3M Pre-Formed Ground Braids, three 3M Constant Force Springs, six Scotch Mastic Sealing Strips 2230, one 3M Cable Preparation Kit and one Instruction Sheet.
