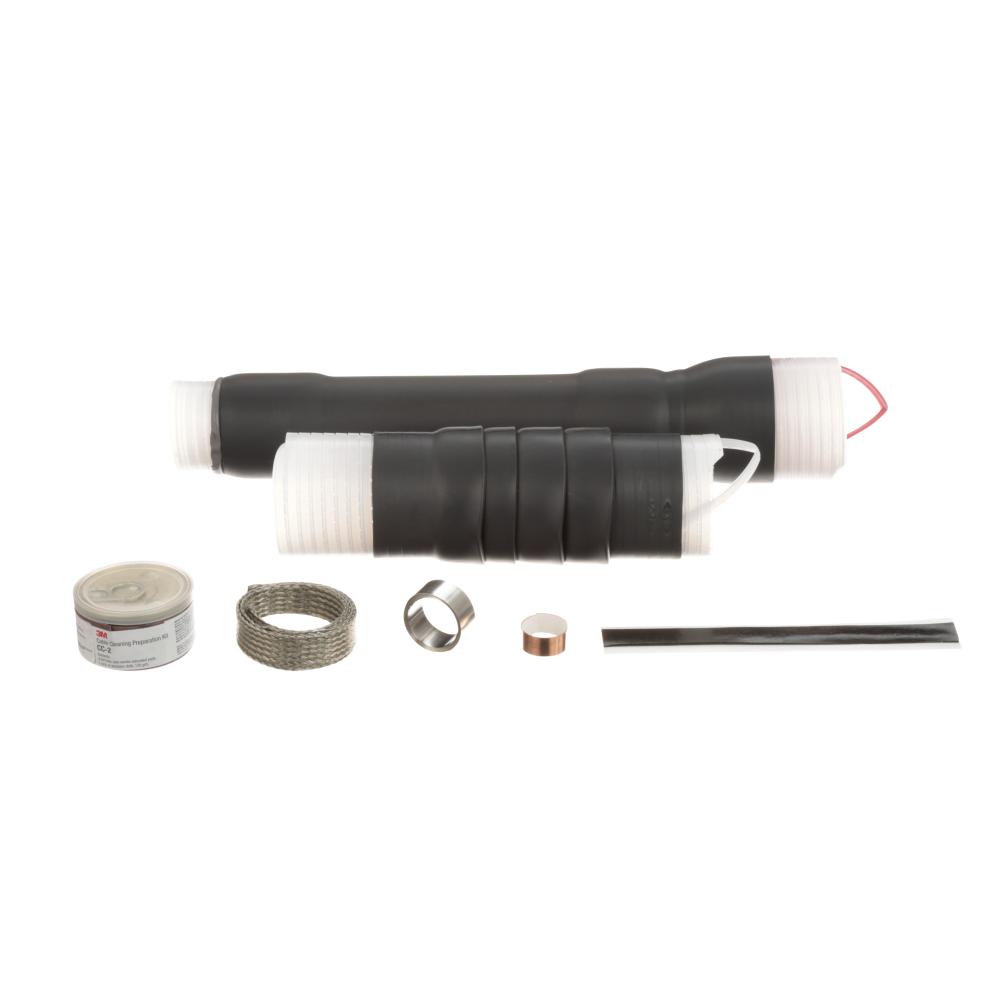

3M™ Cold Shrink QT-III Outdoor 4 Skirt Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M

3M™ Cold Shrink QT-III Outdoor 4 Skirt Termination Kit<span class=' ItemWarning' style='display:block;'>Item is usually in stock, but we&#39;ll be in touch if there&#39;s a problem<br /></span>

3M™ Cold Shrink QT-III Outdoor 4 Skirt Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M

Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item

3M™ Cold Shrink QT-III Outdoor 4 Skirt Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M

    Price:
    Call for Price
    Part Number: 408AE4W
    UPC:
    Vendor Item Number: 7100004583
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire and Cable
BIL:
200 kV
Breakout Boot:
No
Cable Insulation Outside Diameter Range:
1.05 in - 1.8 in
Cable Shielding:
Wire Shield
Compatible Lug:
QL2-A-350-750
ECCN:
EAR99
Family:
QT-III
Insulation Level:
133%
Insulation Rejacketing:
No
Maximum Installed Length:
16.00 in
Number of Conductors:
1.0
Number of Skirts:
4.0
RoHS EU Comments:
Contact 3M for information
Voltage:
35 kV
Voltage Application:
Medium Voltage
Manufactured By:
3M
+
Additional Information
  • Excellent tracking resistance
  • heat or special tools required
  • Hi-K stress control
  • Includes everything required to make 3 terminations (except lugs)
  • No torches
  • Quick installation with versatile one-piece design
  • UV resistance and water-shedding properties
Product Overview
3M™ Cold Shrink QT-III Outdoor Terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. 3M™ Cold Shrink QT-III 7690-S Series Termination Kit includes 3 single-conductor, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric-constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.The 3M QT-III Cold Shrink Inverted Outdoor Termination Kit 7620 S & 7690 S Series uses a conjunction of high dielectric constant material and sealing compounds that allows the termination to withstand voltages of 5 to 35kV.
