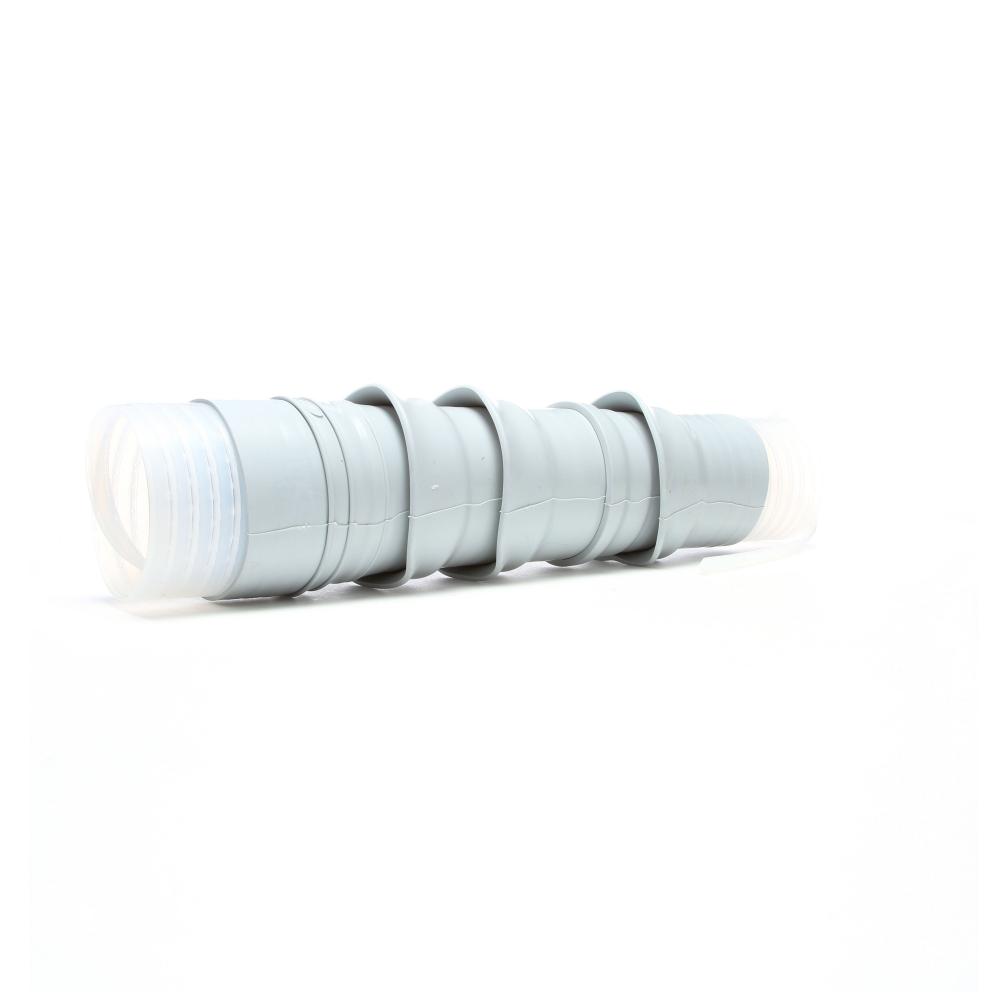

3M™ Cold Shrink QT-II Outdoor Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M
3M™ Cold Shrink QT-II Outdoor Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
3M™ Cold Shrink QT-II Outdoor Termination KitItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Price:
Call for Price
Part Number: 40JKFTL
UPC:
Vendor Item Number: 7000057846
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire and Cable
Application:
Cable Termination
BIL:
110 kV
Breakout Boot:
No
Cable Insulation Outside Diameter Range:
1.08 in - 1.8 in
Cable Shielding:
Jacketed Concentric Neutral (JCN)
Cable Type:
Jacketed Concentric Neutral (JCN)
Color Family:
Gray
ECCN:
EAR99
Family:
QT-II
Insulation Level:
100%
Insulation Rejacketing:
No
Jacket Outside Diameter Range:
1.37-2.02 in
Material:
Silicone Rubber
Maximum Installed Length:
11.00 in
Number of Conductors:
1.0
Number of Skirts:
4.0
Product Color:
Grey
RoHS EU Comments:
Contact 3M for information
Voltage:
15 kV
Manufactured By:
3M
+
Additional Information
- Cable size range: 400 to 700 kcmil
- Compatible with polyethylene
- cross-linked polyethylene (XLP) and ethylene propylene rubber (EPR) cables
- Each kit includes all the materials necessary to make 1 termination are included (except lug)
- Easy installation - insulators are pre-stretched around a spiral-wound
- flexible seal without special tools or torches
- Hi-K material
- high-impulse
- plastic core
- Specially-formulated
- Track-resistant silicone rubber insulators with built-in Hi-K stress relief
- Void-free
Product Overview
3M™ Cold Shrink Outdoor Termination Kit 5643 is intended for 15 kV applications and features 1.08-1.80 in (27-46 mm) cable insulation O.D.Each kit includes: One 3M Hi-K Silicone Rubber Termination, two strips of Scotch Silicone Rubber Tape 70, one packet of 3M Silicone Grease and one Instruction Sheet
