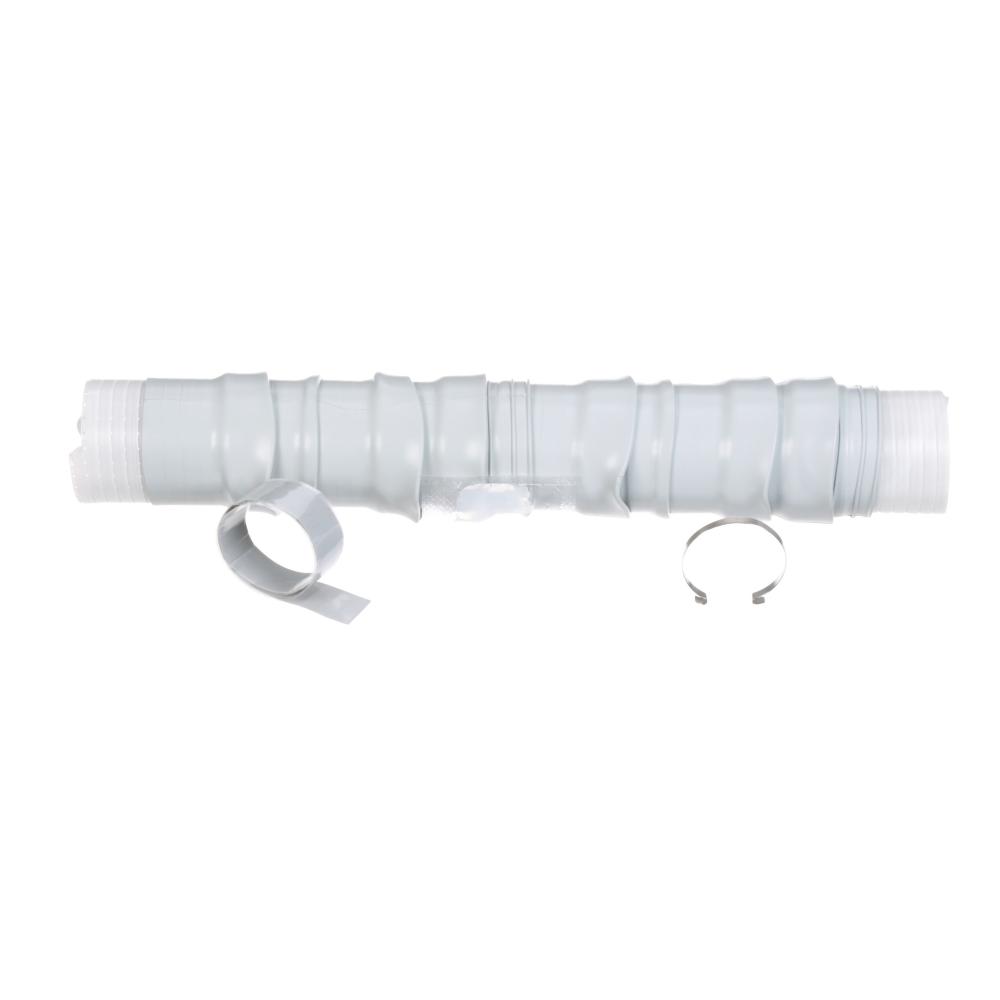

3M™ Cold Shrink QT-II Outdoor Termination Kit 5607Item is usually in stock, but we'll be in touch if there's a problem
by 3M
3M™ Cold Shrink QT-II Outdoor Termination Kit 5607Item is usually in stock, but we'll be in touch if there's a problem
by 3M
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
3M™ Cold Shrink QT-II Outdoor Termination Kit 5607Item is usually in stock, but we'll be in touch if there's a problem
by 3M
Price:
Call for Price
Part Number: 40JKDTR
UPC:
Vendor Item Number: 7100027889
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire and Cable
BIL:
200 kV
Breakout Boot:
No
Cable Insulation Outside Diameter Range:
1.31 in - 2.1 in
Cable Shielding:
Concentric Neutral (CN)
ECCN:
EAR99
Insulation Level:
100%
Insulation Rejacketing:
No
Maximum Installed Length:
18.25 in
Number of Conductors:
1.0
Number of Skirts:
8.0
RoHS EU Comments:
Contact 3M for information
Voltage:
35 kV
Manufactured By:
3M
+
Additional Information
- "living seal"
- Class 1 for outdoor
- High dielectric-constant material regulates the distribution of electric field stress
- Meets IEEE Standard 48
- One-piece cold shrink termination.
- Silicone cold shrink application provides constant radial pressure
- Silicone rubber insulation is track-resistance and hydrophobic
- Suitable for outdoor
- weather exposed applications
- weather-exposed applications
- Withstands voltages of 5 to 15kV and is 110 kV BIL-rated
Product Overview
The 3M™ QT-II Cold Shrink Outdoor Termination Kit 5601 includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for concentric neutral cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 15kV.The 3M QT-II Cold Shrink Outdoor Termination Kit 5601 consists of a high dielectric constant (Hi-K) stress control tube insulated with a moulded silicone skirted insulator. There is a four-skirt design rated 15 kV, six-skirt design rated 25/28 kV, and an eight-skirt design rated 35kV. They are provided in an expanded state, mounted on a removable inner supporting plastic core.
