3M™ Cold Shrink QS-III 3/C Armoured or Non-Armoured Cable Splice Kit 5787A-MT, 1/CaseItem is usually in stock, but we'll be in touch if there's a problem
by 3M

3M™ Cold Shrink QS-III 3/C Armoured or Non-Armoured Cable Splice Kit 5787A-MT, 1/Case<span class=' ItemWarning' style='display:block;'>Item is usually in stock, but we&#39;ll be in touch if there&#39;s a problem<br /></span>

3M™ Cold Shrink QS-III 3/C Armoured or Non-Armoured Cable Splice Kit 5787A-MT, 1/CaseItem is usually in stock, but we'll be in touch if there's a problem
by 3M

Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item

3M™ Cold Shrink QS-III 3/C Armoured or Non-Armoured Cable Splice Kit 5787A-MT, 1/CaseItem is usually in stock, but we'll be in touch if there's a problem
by 3M

    Price:
    Call for Price
    Part Number: 40JDKA4
    UPC:
    Vendor Item Number: 7000140750
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Connectors
Industrial Subtype:
Splice Kits
Cable Shielding:
Shielded Armored
Conductor Material:
Aluminum
ECCN:
EAR99
Insulation Level:
100%
Number of Conductors:
3.0
Splice Type:
Cold Shrink
Voltage:
25/28 kV
Manufactured By:
3M
+
Additional Information
  • Allows for transitioning of different size cables
  • flames
  • No heat
  • or special tools required
  • Quick and easy installation
  • Rated for 25/28 kV class cables
  • Silicone body provides excellent electrical performance and excellent low temperature handling
Product Overview

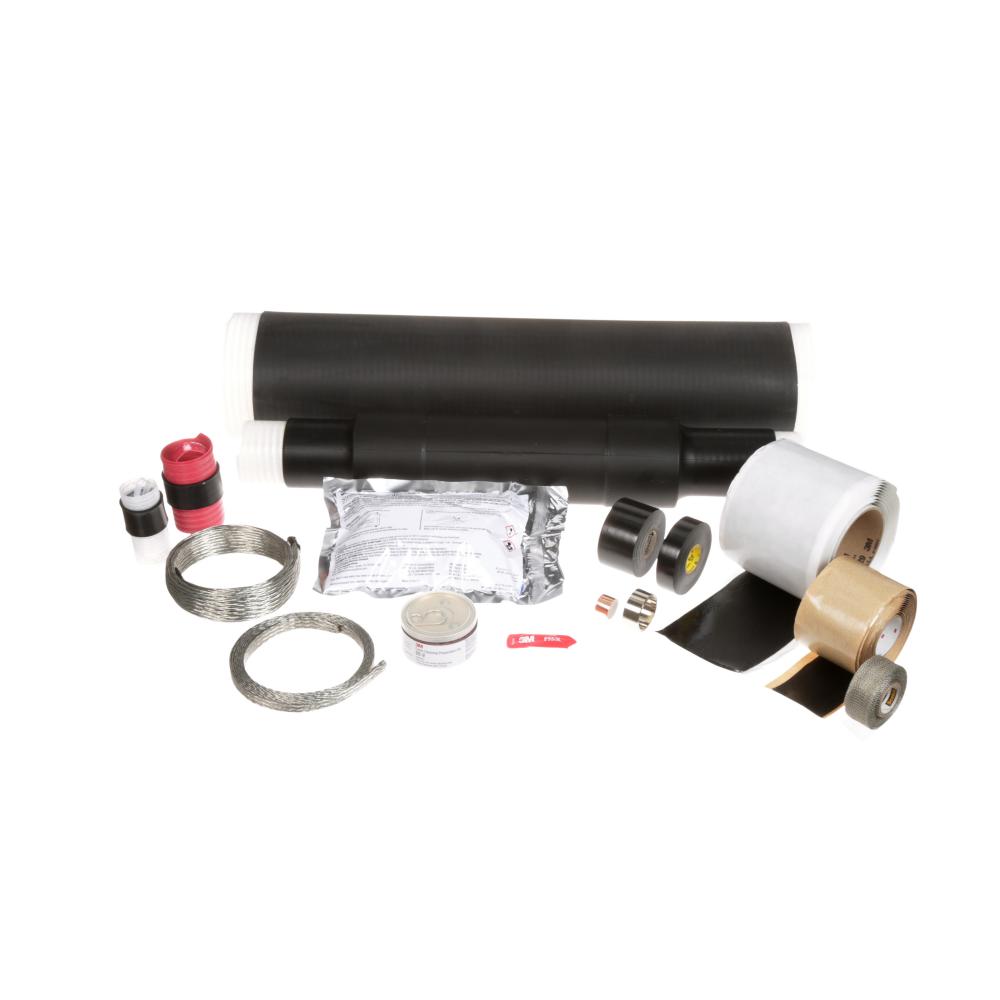

3M™ Cold Shrink QS-III 3/C Armoured or Non-Armoured Splice Kits 5797A-MT and 5798A-MT Series are designed for splicing 25/28 kV shielded power cables. The cold shrink design ensures a quick installation and excellent cable size transitions. This armoured or non-armoured splice kit is perfect for use in cable trays, cable racks, junction boxes and cable hangers, as well as aerial and wet or dry locations.The 3M Cold Shrink QS-III 3/C Armoured or Non-Armoured Cable Splice Kit includes three 3M Cold Shrink Silicone Rubber Splice Bodies, three 3M Cold Shrink Adapter Tubes, two 3M Cold Shrink Jacketing Tubes, six 3M Red Compound Tubes P55/R, one 3M Cable Preparation Kit CC-2, one roll of Scotch 33+ Vinyl Electrical Tape, four rolls of Scotch Super 88 Vinyl Electrical Tape, three rolls of 3M Scotch-Seal Mastic Tape 2229, one roll of Scotch Electrical Shielding Tape 24, one roll of Scotch Rubber Mastic Tape 2228, five rolls of 3M Armorcast Structural Material, three metallic shield sleeves, six constant force spring shield connectors, one armour-to-armour continuity braid, six strips of copper foil tape, gloves, and an instruction sheet.
