3M™ Cold Shrink Insulator, 8427-12, 250-400 kcmil (125-200 mm²), 1 kVItem is usually in stock, but we'll be in touch if there's a problem
by 3M
3M™ Cold Shrink Insulator, 8427-12, 250-400 kcmil (125-200 mm²), 1 kVItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
3M™ Cold Shrink Insulator, 8427-12, 250-400 kcmil (125-200 mm²), 1 kVItem is usually in stock, but we'll be in touch if there's a problem
by 3M
Price:
Call for Price
Part Number: 40JRQ0A
UPC:
Vendor Item Number: 7000005943
Call for Price
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Technical Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Management
Industrial Subtype:
Shrink Tubing
Application:
Insulation, mechanical protection, repair
Cable Shielding:
Non-shielded
Cable Type:
Non-Shieled, Solid Dielectric Power Cable
Color Family:
Black
Conductor Material:
Copper
ECCN:
EAR99
Halogen Free:
No
Material:
EPDM Rubber
Maximum Connector Length:
8.0 in
Model:
Cold-shrink
Number of Conductors:
1.0
Product Type:
Splice
Relaxed Tube Length:
12.0 in
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Splice Type:
Cold Shrink
UPC Code:
00054007344599
Voltage:
1 kV
Voltage Application:
Low Voltage
Manufactured By:
3M
+
Additional Information
- Accommodates a wide range of cable sizes
- alkalis and ozone
- No mastic or tape required to seal
- no special tools and no heat required
- Quick and easy installation
- Resists acids
- retains resiliency and pressure
- Seals tight
Product Overview

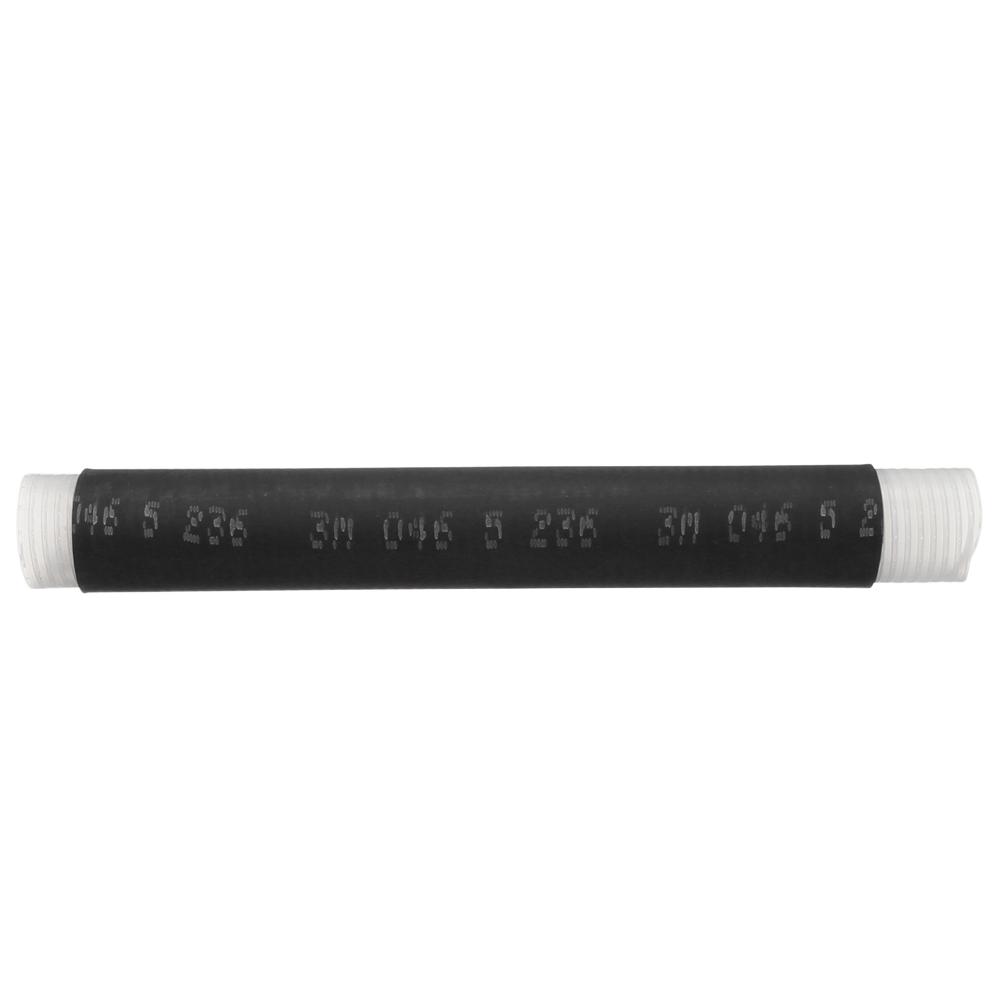

3M™ Cold Shrink Insulators are open-ended, tubular, EPDM rubber sleeves which are factory expanded and assembled onto a removable core. The core is removed after the tube has been positioned for installation over an inline connection, terminal lug, etc., allowing the tube to shrink and form a water-resistant seal.3M Cold Shrink Insulators are designed using a unique cold shrink delivery system. They are supplied prestretched on a removable core for efficiency and ease of installation. Removal of the core after positioning allows the product to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated material ensures a permanent, durable environmental seal and insulation.
